4K Camera with Intelligent Lighting for Small Rooms and WFH

The CAM130 is a 4K camera with intelligent lighting for use in small rooms and WFH. Embedded auto and preset framing can follow and capture meeting participants even when they’re wearing masks, saving time and enhancing meeting efficiency. Also, a built-in lens cover is designed to protect your privacy from hackers, and flexible mounts fit diverse usage scenarios. All that innovation adds up to brighter and better conferences.

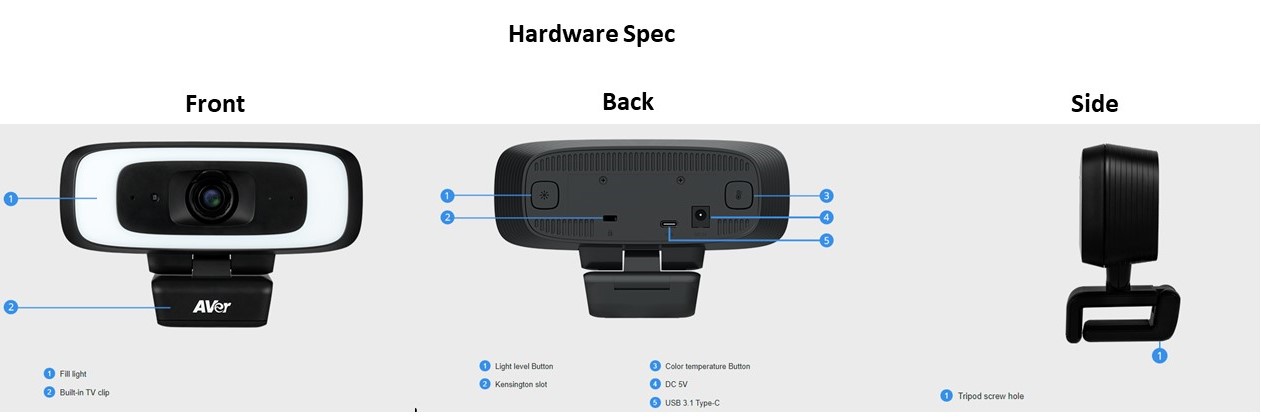

Specifications

Camera

=         4K optical lens, 120° FOV, up to 4X zoom via ePTZ

=         Sony 4K sensor: ultra-crystal-clear image in any lighting

=         Frame rates: (16:9) 4K 30fps ; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps

=         Intelligent fill light: automatically adjusts lighting levels to make you look energetic in a dim environment*

=         SmartFrame: automatically adjusts FOV (auto focus) to track and fit all participants onscreen

=         Innovative Preset Framing: Follows the presenter through preset areas

=         True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions

=         Mirror, flip, AE, white balance: auto/manual override via PTZApp2

=         Minimum focus distance: 60 cm

=         People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

=         10 camera presets (through remote control and IP web page)

=         Standard tripod screw holes

* For best lighting results, sit within 1 meter away from the camera

Microphone

=         2 unidirectional microphones

=         Frequency response: 100–12K Hz

=         Sensitivity: -37 dB

Connectivity

=         USB type-C 3.1 connector, backward compatible with USB 2.0

=         DC jack for power adapter (for USB 2.0 connection while using fill-light function)

Video Format

=         YUV, YUY2, MJPEG

USB

=         3.1 Gen 1, backward compatible with USB 2.0

=         UVC 1.1 (USB video), UAC 1.0 (USB audio)

Control

=         IR remote control

=         UVC/UVA plug-and-play

=         PTZApp 2

Security and Mount

=         Built-in TV clip

=         Kensington slot

=         1/4" tripod mounting screw

System Requirements

=         Windows® 7/10

=         MacOS X 10.7 or later

=         Google Chromebook™ version 29.0.1547.70

=         Hardware Specs

=         3.2 GHz Intel® Core™ i5-4460 processor

=         4 GB RAM or more

=         USB 3.1 port, backward compatible with USB 2.0

Power Supply

=         AC 100V–240V, 50/60 Hz

=         5V/2A

Free Applications for Meeting Collaboration

(For Windows® and Mac® computers)

=         EZManager 2: Camera Central Management Software

=         Remotely group FW/SW upgrades, control the camera, and manage settings

=         PTZApp 2: Camera Settings Software

=         View live video, people-counting numbers, and meeting-interval information

=         Enable Skype for Business far-end control

=         Upgrade firmware automatically or manually

=         Control the camera

=         Set parameters and adjust the camera image

=         Diagnose operating status

=         EZLive: Broadcasting Software

=         Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Environmental Data

=         Operation temperature: 0 to 40°C

=         Operation humidity: 20% to 80%

=         Storage temperature: -20 to 60°C

=         Storage humidity: 20% to 80%

Dimensions

=         Package dimensions: 217(L)*155(W)*118(H) mm

=         Package weight: 0.729 kg

=         Camera: 160 (L) x 37 (H) x 60 (D) mm/ 0.282kg

=         Remote control: 149.72 x 42.3 x 19.29 mm/50g (optional item)

Package Contents

=         CAM130 unit

=         Power adapter (10 ft/3 m)

=         USB 3.1 type-C to type-A cable (6 ft/1.8 m)

=         QR code card

=         Tripod screw

=         Optional Accessories

=         Remote control (also compatible with VB130)

=         USB 2.0 type-C to type-A cable (15 ft/5 m)

=         USB 3.1 Extension Cable (10 m/20 m/30 m)

Warranty

=         Camera: 3 years

=         Accessories: 1 year

Compatible Applications

=         Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit

* For 4K UHD support, please check system/hardware requirements with your software application provider.

** Specifications may vary depending on countries and are subject to change without notice.
