4K Video Bar with Intelligent Lighting for Huddle Rooms

The All-in-One VB130 is equipped with the latest Intelligent Lighting so you can appear energetic and professional in any environment. Also, AVer’s audio fence, beamforming technology, and audio tracking precisely pick up voices. There’s even auto framing to fit every participant onscreen in seconds. Activate a brighter and better video conferencing experience with the VB130.

Specifications

Camera

=         4K optics lens, 120° FOV, up to 4X zoom

=         Sony 4K sensor: ultra-crystal-clear image in any lighting

=         Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps

=         Adjustable audio fence: freedom to define your meeting area

=         Intelligent fill light: Automatically adjust lighting level to make you look energetic in virtual meetings in a dim environment*

=         SmartFrame: automatic FOV adjustment (auto focus) to fit all participants

=         SmartSpeaker: Voice triggered tracking people or specific preset areas.

=         True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions

=         Mirror, flip, AE, white balance: auto/manual override via PTZApp2

=         Minimum focus distance: 60 cm

=         People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

=         10 camera presets (through remote control and IP web page)

*The best lighting distance is for people sitting within 1meter far from the camera

Audio

=         Beamforming microphone array: 5 microphones, 4-meter pickup range

=         Echo cancellation and background noise suppression

=         Supports an expansion microphone

=         6W speaker with a professional bass port tuned for communication

=         180Hz–20kHz speaker frequency response

=         Output volume: 94dB SPL +/-2dB at 0.5 meters

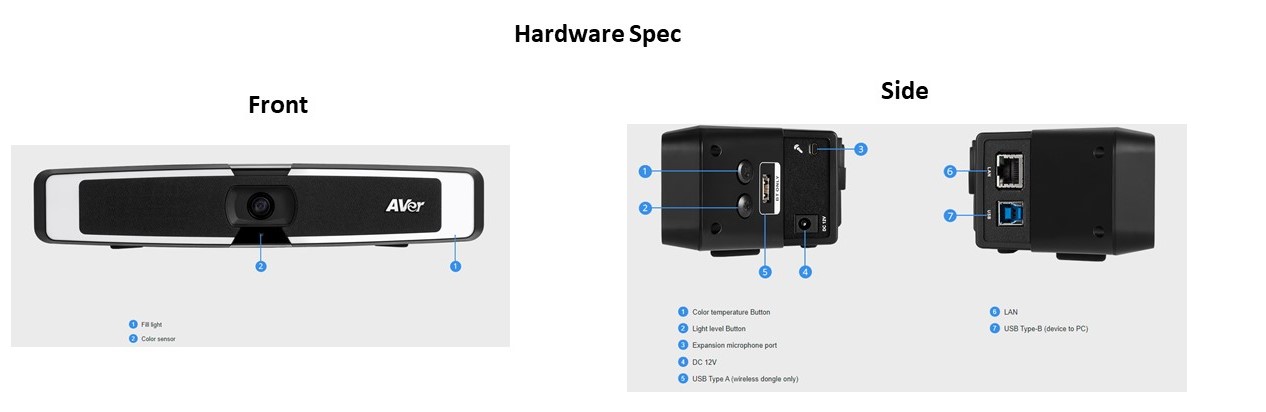

Connectivity

=         12V/2A power adapter

=         Mini-B for expansion microphone connection

=         USB Type-B 3.1 connector, backward compatible with USB 2.0

=         RJ45 port for Ethernet

=         USB 2.0 Type-A for wireless connection*

*Optional wireless dongle is required to connect with mobile phone

Video Format

=         YUV, YUY2, MJPEG

=         Network video compression format: H.264

=         Network protocols: RTSP, RTMP*

*When USB streaming is in use, RTSP and RTMP are not available.

USB

=         3.1 Gen 1, backward compatible with USB 2.0

=         UVC 1.1 (USB video), UAC 1.0 (USB audio)

Control

=         IR remote control

=         WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)

=         UVC/UVA plug-and-play

=         PTZApp 2

Mount

=         Screen mount kit

=         Camera wall-mount bracket

Optional Accessories

=         Wall mount and mounting screws

=         Screen mount kit

=         BT Dongle

=         10m/20m expansion microphone

=         10m/20m/30m USB 3.1 extension cable

=         USB 3.1 GEN1 Type-B to Type-A cable, 3 m

Warranty

=         Camera: 3 years

=         Accessories: 1 year

System Requirement

Windows® 7/10

MacOS X 10.7 or later

Google Chromebook™ version 29.0.1547.70

Hardware Specs

3.2 GHz Intel® Core™ i5-4460 processor

4 GB RAM or more

USB 3.1 port, backward compatible with USB 2.0

Power Supply

=         AC 100V–240V, 50/60 Hz

=         Consumption: 12V/2A

Free Applications for Meeting Collaboration

(Free Apps support on Windows® and Mac® computers)

=         EZManager 2: Camera Central Management Software

=         Remotely group FW/SW upgrades, control the camera, and manage settings

=         PTZApp 2: Camera Setting Software

=         View live video, people counting number, meeting interval information

=         Enable Skype for Business far-end control

=         Upgrade firmware automatically or manually

=         Control the camera

=         Set parameters and adjust the camera image

=         Diagnose operating status

=         EZLive: Broadcasting Software

=         Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Environmental Data

=         Operation temperature: 0 ~ 40°C

=         Operation humidity: 20% ~ 80%

=         Storage temperature: -20 ~ 60°C

=         Storage humidity: 20% ~ 80%

Dimensions

=         Package dimensions: 406(L)x146(W)x189(H) mm

=         Package weight: 2.358 kg

=         Camera: 350(L) x 65(H) x 75(D) mm/0.922 kg

=         Remote control: 149.72 x 42.3 x 19.29 mm/50g

Package Contents

=         VB130 unit

=         Power cable 10 ft (3 m)

=         USB 2.0 Type-B to Type-A Cable 15 ft (5 m)

=         QR code card

=         Screen mount or wall mount*

=         Remote control

=         Tripod screw

*Availability varies based on location. Please check with your local agent for details.

Compatible Applications

=         Microsoft® Teams, Skype for Business, Skype, Zoom, Google Meet™, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit

*For 4K UHD support, please check system/hardware requirements with your software application provider.

* Specifications may vary depending on countries and are subject to change without notice.
