AVer VC540

MYR6236.00

Brand: AVer

  • Share

Get shipping estimates

Country
State
Shipping Method

4K Conference Camera with Bluetooth® Speakerphone for Medium-to-Large Rooms

The VC540 pairs an upgraded speakerphone with a 16X total zoom camera to make remote meetings feel like in-person interactions. With 4K camera quality and IP-based management features for the speakerphone, the VC540 is the professional conferencing system that truly meets your enterprise needs.





Specifications

  • Camera
    • Ultra-crystal-clear image support up to 4K
    • Frame rate: 4K 30fps, 1080p , 720p , 640x480, 320x240 at 60, 30, 15fps
    • SmartFrame: automatic FOV adjustment to fit all participants
    • 16X zoom
    • Autofocus: minimum working distance 1 meter
    • 86° horizontal field of view
    • Backlight compensation and 2D noise reduction technology for optimizing light balance in varying conditions
    • Standard tripod screw holes
    • Analytics API: enterprises and third-party software providers can obtain people-counting data to better understand meeting-space usage
  •
  • Speakerphone
    • Bluetooth / USB Wired
    • Full-duplex microphone array with echo cancellation
    • Advanced noise suppression
    • 2-microphone array
    • 3.5 mm phone-in Jack
    • 3.5 mm line out
    • Speaker volume: adjustable to 90 dB SPL at 0.5 m
    • Touch controls for volume down/up, mute, phone input, call, and hang up
    • Can bridge phone-in and USB into one call
    • Security: Kensington slot
  • Motorized Pan & Tilt Movement
    • Pan: ±160°
    • Tilt: +90° (up) -30° (down)
    • 10 camera presets (via remote control)
    • Fast and quiet pan & tilt movement
  •

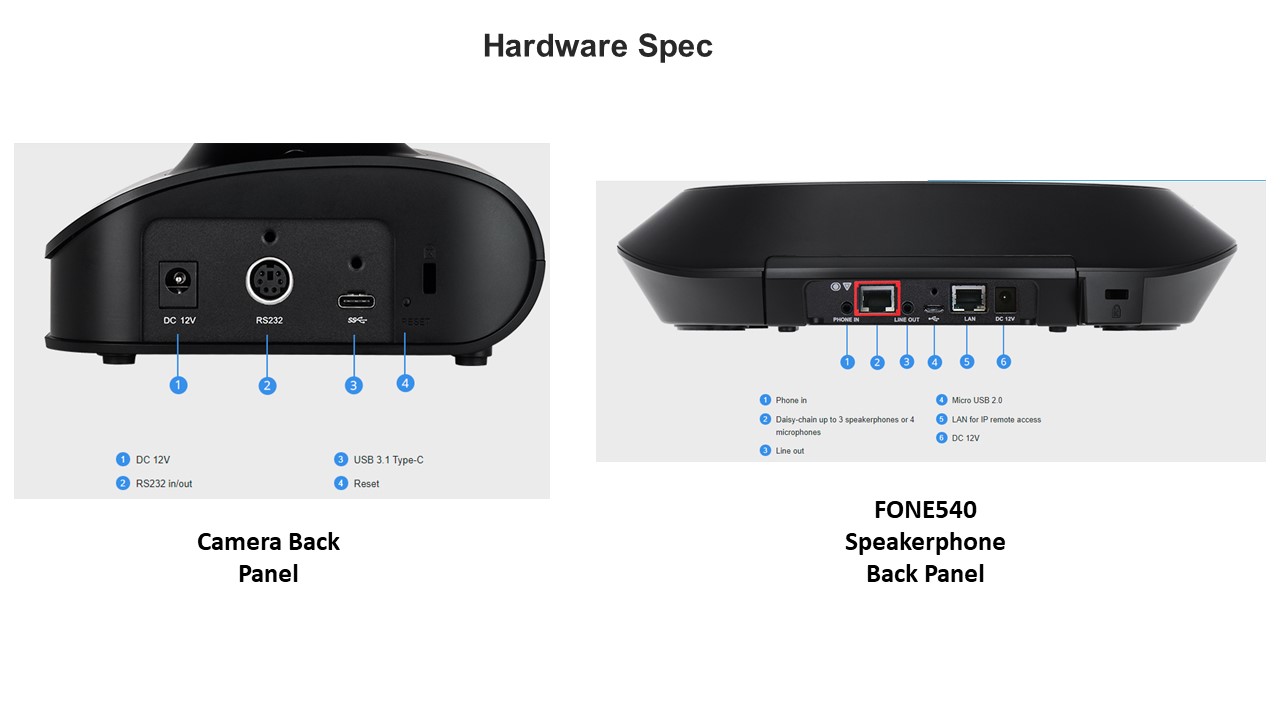

  • Connectivity
    • Mini DIN 6 for RS232 connector for camera
    • USB Type-C connector for camera
    • Micro USB connector for speakerphone
    • IP (RJ45) connector for speakerphone
    • Bluetooth for speakerphone
  • Video Format
    • YUV, MJPEG
  •
  • USB
    • 2.0, 3.1 Gen1
    • UVC (USB Video Class) 1.1
    • UAC (USB Audio Class) 1.0
  • Control
    • IR remote control
    • VISCA/pelco and P/pelco D via RS232
    • UVC/plug-and-play
    • PTZApp
  •
  • Optional Accessories
    • Mini DIN 6 to RS232 adapter for camera
    • Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
    • Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
    • USB 2.0 type-C to type-A Cable (16 ft)
  • Warranty**
    • Camera/Speakerphone: 3+2 years
    • Accessories: 1 year
  •
  • Security and Mount
    • Camera mount included for wall or ceiling
    • Kensington slot
  • System Requirements*
    • Windows® 7/10 or later
    • Mac OS X v10.13 or later
    • Google Chromebook™ version 76.0.3809.102 or later
    • Android™ 6 or later
  •
  • Hardware Specifications*
    • Processor: 3.2 GHz Intel® Core™i5-4460 or later
    • 4 GB RAM
    • USB 3.1 port, backward compatible with USB 2.0 port
  • Free Applications for Meeting Collaboration (for Windows® and Mac Devices)
    PTZApp
    • Upgrade firmware automatically or manually
    • Control camera
    • Set parameters and adjust camera image
    • Diagnose operating status
    • View live video
    EZLive
    • Real-time streaming / annotating / snapshots /video recording
  •
  • Environmental Data
    • Operation temperature: 0°C ~ 40°C
    • Operation humidity: 20% ~ 80%
    • Storage temperature: -20°C ~ 60°C
    • Storage humidity: 20% ~ 80%
  • Dimensions
    • Package dimensions: 259 x 259 x 349 mm
    • Package weight: 4.6 kg
    • Camera: 130.7 x 97.8 x 171.1 mm
    • Speakerphone: 220 x 181.5 x 49.5 mm
    • Remote control: 200 x 50 x 21 mm
  •
  • Package Contents
    • CAM540 Camera
    • FONE540 Speakerphone
    • Remote control
    • Power adapter x 2
    • Power cord (6 ft)
    • USB 3.1 type-C to type-A Cable (6 ft)
    • Micro USB 2.0 to Type-A cable (16 ft)
    • 3.5 mm aux cable (3 ft)
    • Warranty card
    • Quick Start Guide
    • Metal mount, tripod screws
    • Batteries
  • Compatible Applications
    • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting ®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
  •

* For 4K UHD support, please check your system/hardware requirements with your software application provider.
** Please register online to receive a free 2-year warranty extension. For detailed warranty information, please contact an AVer representative.
*** Specifications may vary depending on location and are subject to change without notice.
