Image Sensor

Output Resolution

Zoom

1/3.06" CMOS

4K

Full HD 1080p 60Hz

HD 720p 60Hz

322X Total Zoom

(14X Optical Zoom x 23X Digital Zoom)

Total Pixels

TV Lines

Frame Rate

13 Megapixels

1,400

60fps (max.)

Focus

Auto / Manual

Shooting Area

A3 (420 x 315 mm max.)

Image Rotation

Electronic: 0°, 180°

Mechanical: 0°, 90°, 180° (Camera Head)

Internal Storage

200 Pictures at XGA (1024 x 768)

External Storage

Auto / Manual

One-touch Recording

Yes

One-touch Capturing

Yes

Image Effects

Color

B&W

Negative

Image Adjustments

(White Balance / Exposure)

Auto / Manual

Display Modes

Normal

Motion

High Quality

Microscope

Macro

Infinity

Capture Modes

Single

Continuous

User Profiles

Yes, up to 3

Timer

Yes

Flicker Filter Control

Yes

ePTZ

Yes

Light Source

Embedded LED Lamp

HDMI I/O

1 in

1 out

VGA I/O

1 in

1 out

USB 2.0 Ports

Type-A x 1 (USB Thumb Drive)

Type Mini-B x 1 (PC)

Audio

Line out (3.5 mm)

Mic in (3.5 mm)

Built-in Mic

HDMI

Security

Kensington Slot

RS-232 Port (Optional)

Mini-DIN Jack

(Available for M90UHD with RS-232 Only)

Dimensions (W x D x H)

Operating: 159.0 x 481.3 x 469.9 mm

Folded: 176.0 x 319.0 x 112.0 mm

Net Weight

2.2 kg (4.85 lbs.)

Power Source

DC 5V / 3A

AC 100 to 240V, 50 / 60Hz

Power Consumption

10 Watts (Lamp on)

9 Watts (Lamp off)

Warranty

Visualizer: 5 Years

Accessories: 1 Year

Software

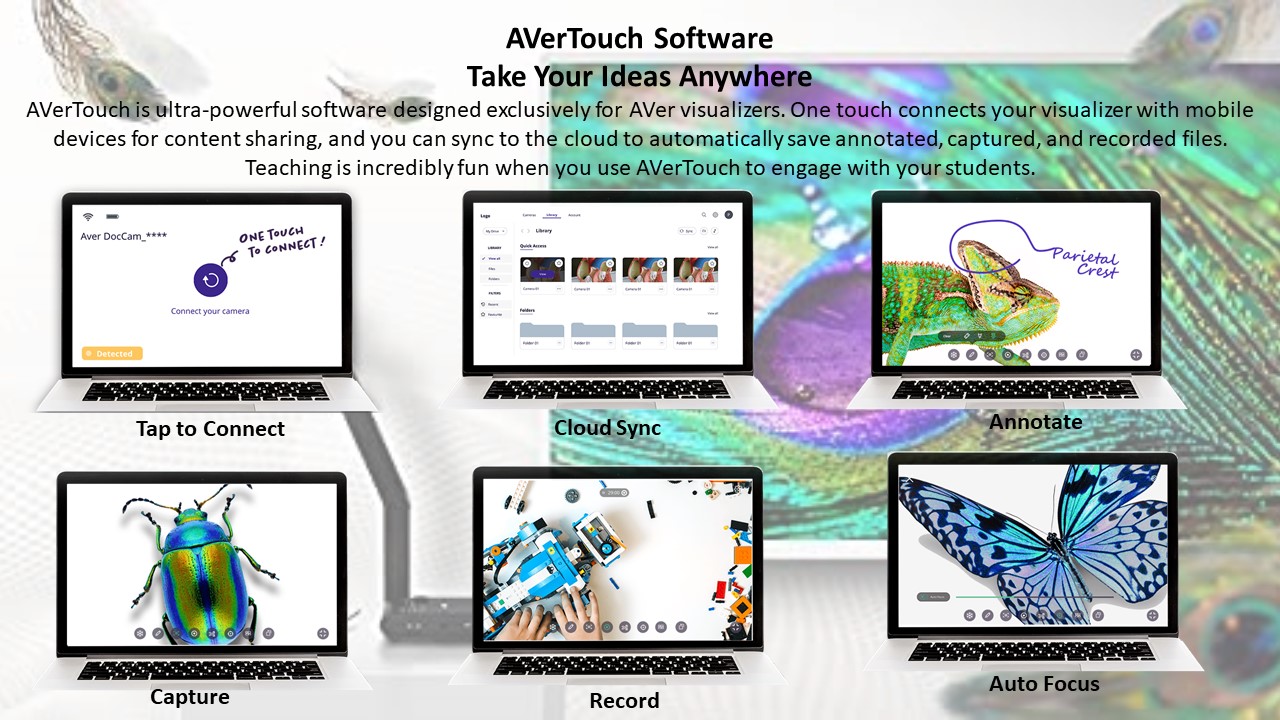

AVerTouch

Windows®OS

Windows® 7, 10, 11

Mac®OS

Mac® 10.15, 11, 12

Chrome™ OS

Chrome OS™ 75 or later

(Available via the Sphere Lite App Only)

Optional Accessories

Microscope Adaptor

Connecting Plate for Microscope Adaptor

Anti-Glare Sheet

Carrying Bag

RS-232 Cable

Package Contents

AVerVision M90UHD Unit

USB Cable

VGA Cable

Power Cable

Power Adapter (5V / 3A)

Remote Control with AAA Batteries x 2

Warranty Card

Quick Start Guide

CD¹
