Professional USB 3.1 Conferencing Camera for Mid-to-Large Rooms

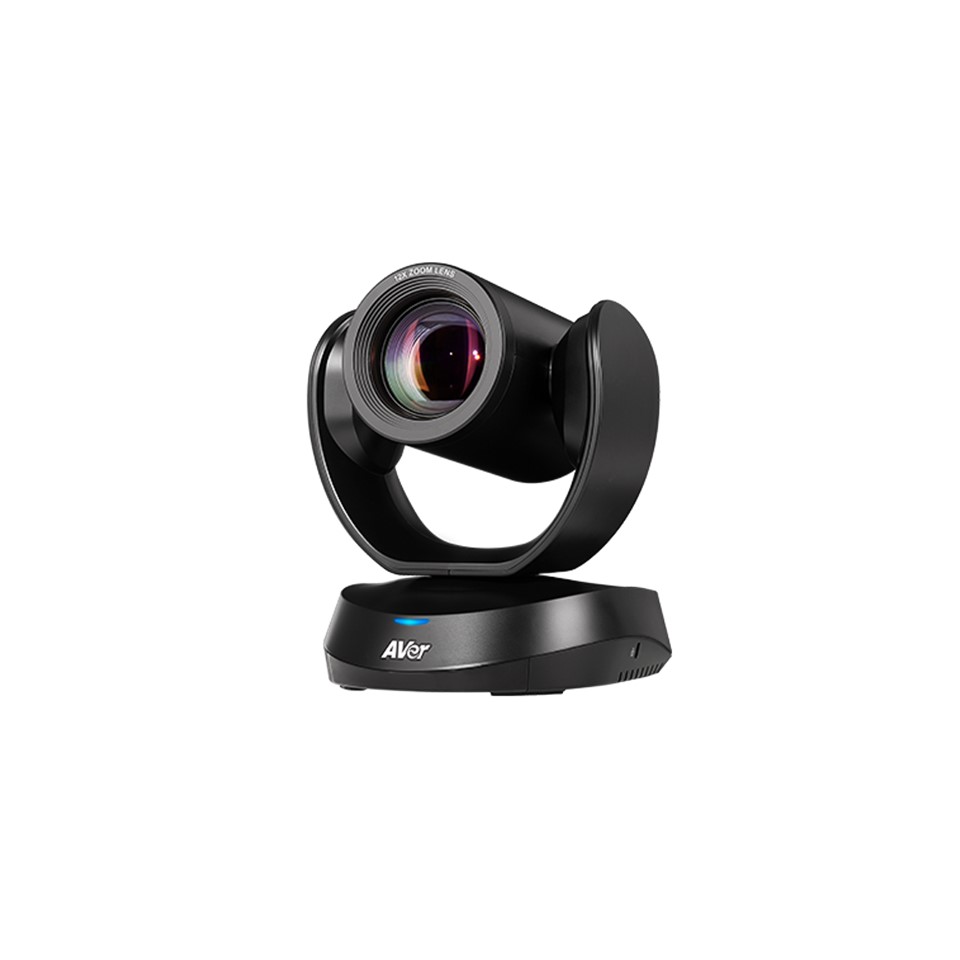

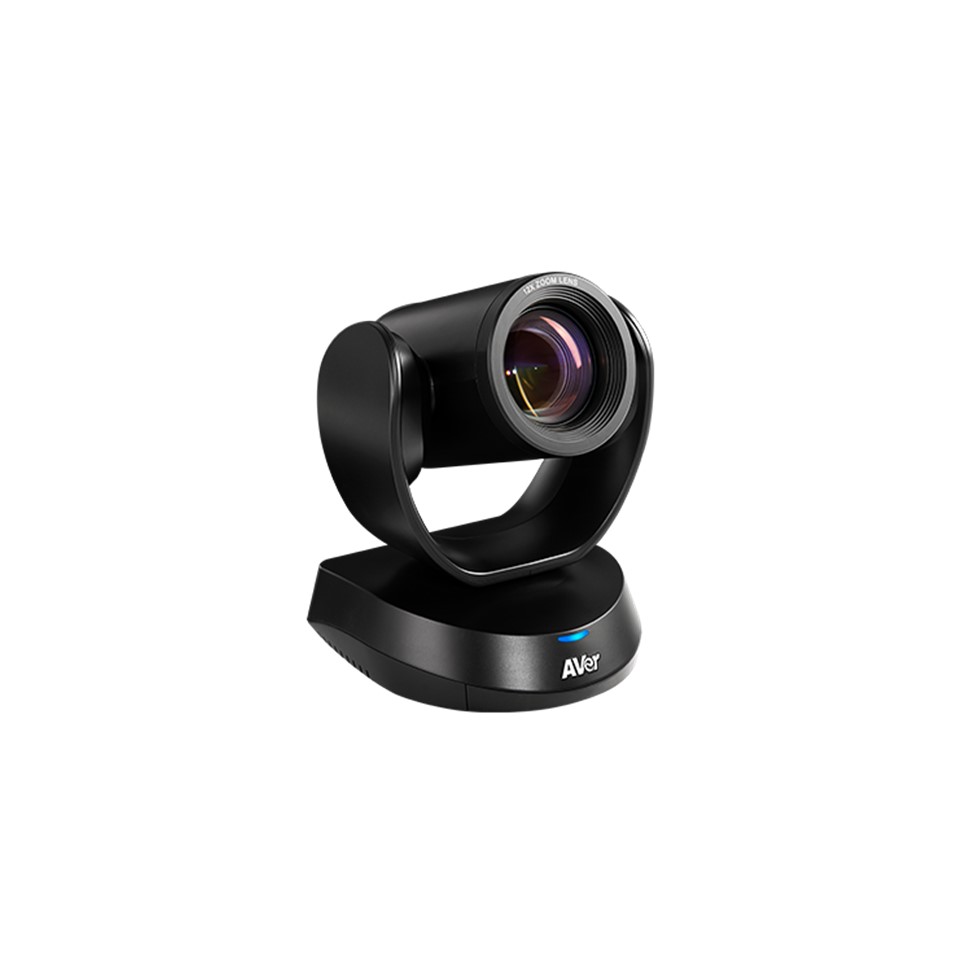

The AVer CAM520 Pro3 is extremely versatile, offering users a 36X total zoom PTZ camera, upgraded AVer SmartFrame, Preset Framing, and a Sony WDR Sensor. In addition, 3-way outputs — including an HDMI connection — deliver more streaming options. But what makes the CAM520 Pro3 truly special is Smart Composition, an embedded AI function that quickly captures meeting participants’ images to facilitate productive video conferences in mid-to-large meeting rooms.



Specifications

Camera

=        Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.

=        Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps

=        SmartFrame for automatic FOV adjustment to fit all participants

=        Smart Composition function offers great visibility for individual participant in the meeting room

=        Innovative Preset Framing: Follow presenter based on preset areas

=        WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions

=        Zoom: 36X* total zoom (12X optical zoom)

=        Field of view(D/H/V): 80.5°/72.8°/44.1°

=        Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)

=        Lens F#: 1.6 (wide) ~ 2.8 (tele)

=        Mirror, flip, AE, white balance: auto/manual override via PTZApp 2

=        Minimum focus distance: 1m

=        Standard tripod screw holes and Kensington slot

=        People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

*Please use PTZApp 2 to set up 36X zoom.

Motorized Pan & Tilt Movement

=        Pan: ±170°

=        Tilt: +90° (up) -30° (down)

=        10 camera presets (via remote control)

=        Fast and quiet pan & tilt movement

Video Format

=        YUV, YUY2, MJPEG

=        Network video compression format: H.264

=        Network protocol: RTSP, RTMP

Control

=        IR remote control

=        VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)

=        Remote side: VISCA over IP, IP (RJ45)

=        UVC plug and play

=        WebUI: Browser IP access via Chrome (Does not support Internet Explorer)

=        PTZApp 2

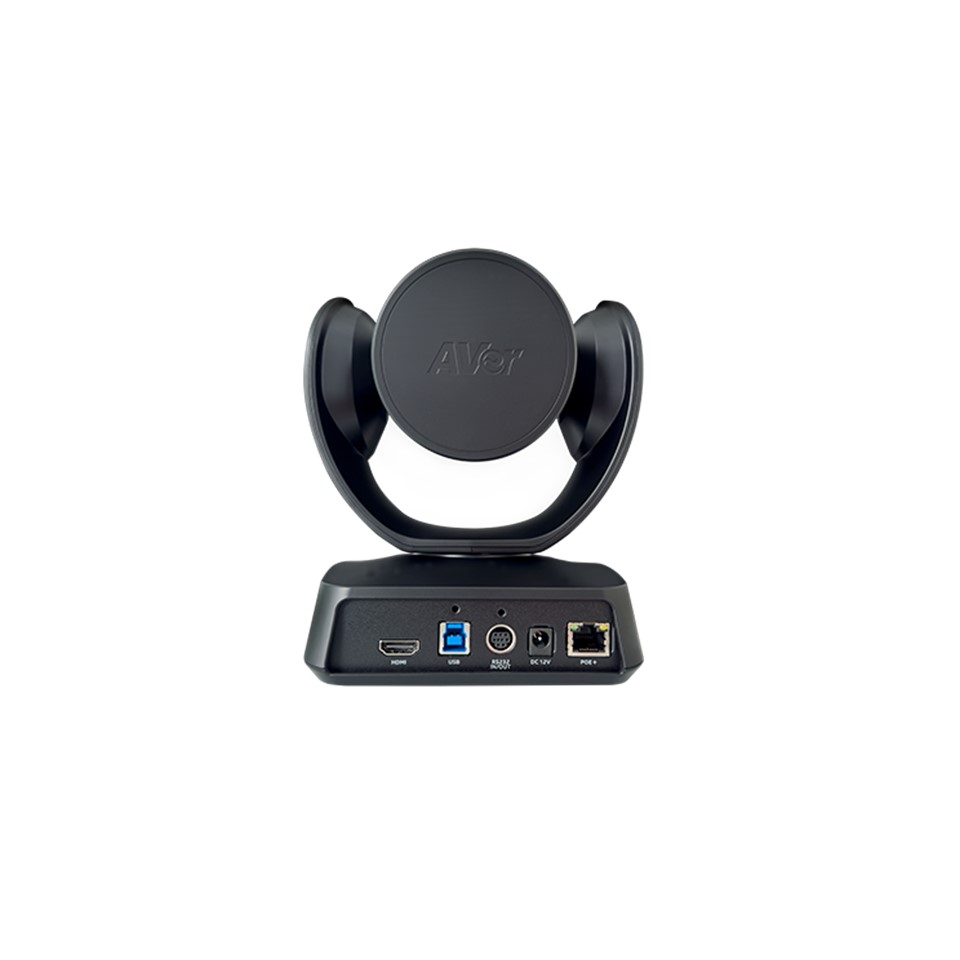

Connectivity

=        12V/2A power adaptor

=        Mini DIN9 for RS232 in & out connection (VISCA, control panel and camera daisy chain)

=        USB 3.1 type-B

=        IP (RJ45)

=        HDMI 1.4

USB

=        3.1 Gen 1 Type-B, backward compatible with USB 2.0

=        UVC 1.1 (USB video), UVC1.5*

* UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

Mount

=        Camera wall-mount bracket included

=        Optional foldable TV mount

=        Optional ceiling mount

System Requirements

=        Windows® 7/10/11

=        Mac OS X 10.14 or later

=        Google Chromebox 3 version 94.0.4606.114 or later

PC Hardware Requirement

=        3.2 GHz Intel® Core™ i5-4460 processor

=        8 GB RAM or more

=        USB 3.1 port , backward compatible with USB2.0 port

Environmental Data

=        Operation temperature: 0 ~ 40°C

=        Operation humidity: 20% ~ 80%

=        Storage temperature: -20 ~ 60°C

=        Storage humidity: 20% ~ 80%

Dimensions

=        Package dimensions: 256 x 256 x 274 mm

=        Package weight: 3.335 kg/7.35 lbs

=        Camera: 182 x 142.7 x 153 mm/1.47 kg

=        Remote control: 200 x 50 x 21 mm/0.09 kg

Optional Accessories

=        Mini DIN8 to D-SUB9 RS232 adapter

=        USB3.1 fiber extender 10m/20m/30m

=        USB3.1, 3m type-B to type-A cable

=        HDMI Cable

=        Ceiling mount

=        Port POE+ Injector

=        Foldable TV mount

Web page browser requirement

=        Chrome: version 76.x or above

=        Firefox: version 69 or above

=        IE: Not support

Power Supply

=        AC 100V ~ 240V, 50/60 Hz

=        Consumption: 12V, 2A

=        PoE+: 802.3at

Free Applications for Meeting Collaboration (Windows® and Mac®)

EZManager 2: Camera Central Management software

=        Remotely manage group FW/SW updates, camera control, and settings

PTZApp 2

=        Support Virtual Streaming function.

=        Smart gallery*/Virtual USB streaming/ Preset Link

=        Upgrade firmware automatically or manually

=        Control camera

=        Set parameters and adjust camera image

=        Diagnose operating status

=        View live video

EZLive

=        Annotating / Image capturing / Video recording

*Will be supported in future update

Package Contents

=        CAM520 Pro3 unit

=        Remote control

=        5m, USB2.0 type-B to type-A cable

=        Power adapter (10 ft/3 m)

=        QR code card

=        Wall-mount bracket

=        ¼” tripod screw

=        Mini DIN9 to mini DIN8 RS232 adapter

Warranty

=        Camera: 3 years*

=        Accessories: 1 year

*We offer an optional 2-year extended warranty in Europe. Please contact your local supplier for details.

Compatible Applications

=        Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco WebEx®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit

* Specifications may vary depending on location and are subject to change without notice.
