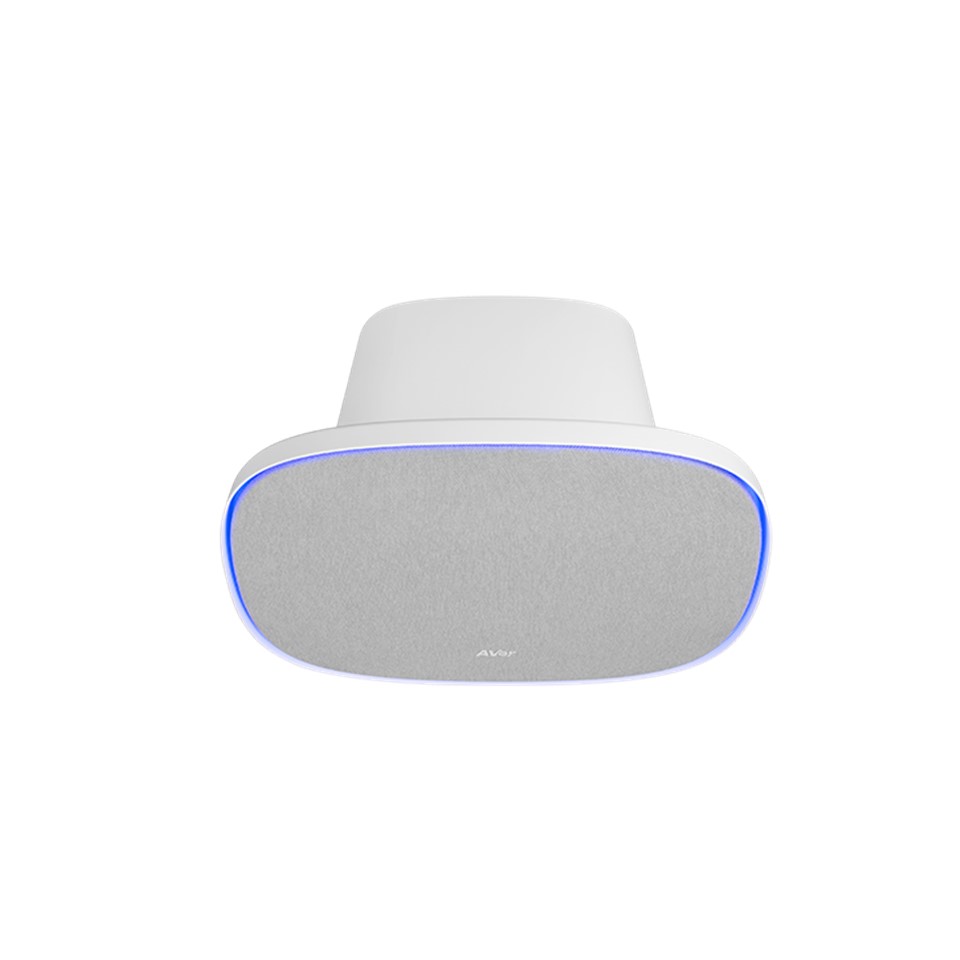

Ceiling Speakerphone System for Rooms of Any Size

Elevate your conference experience with the AVer FONE700, the perfect ceiling speakerphone system. With its cutting-edge technology, the FONE700 allows for seamless integration of our suite of audio-visual products, ensuring the highest-quality sound and picture to meet your conference needs. This includes connecting two cameras, a display, an external speaker, and Bluetooth devices, creating a truly unified AV hub for your conference needs.

Specifications

FONE700 System (Hub + Speakerphone)

=        Full duplex acoustic system for optimal meeting experience

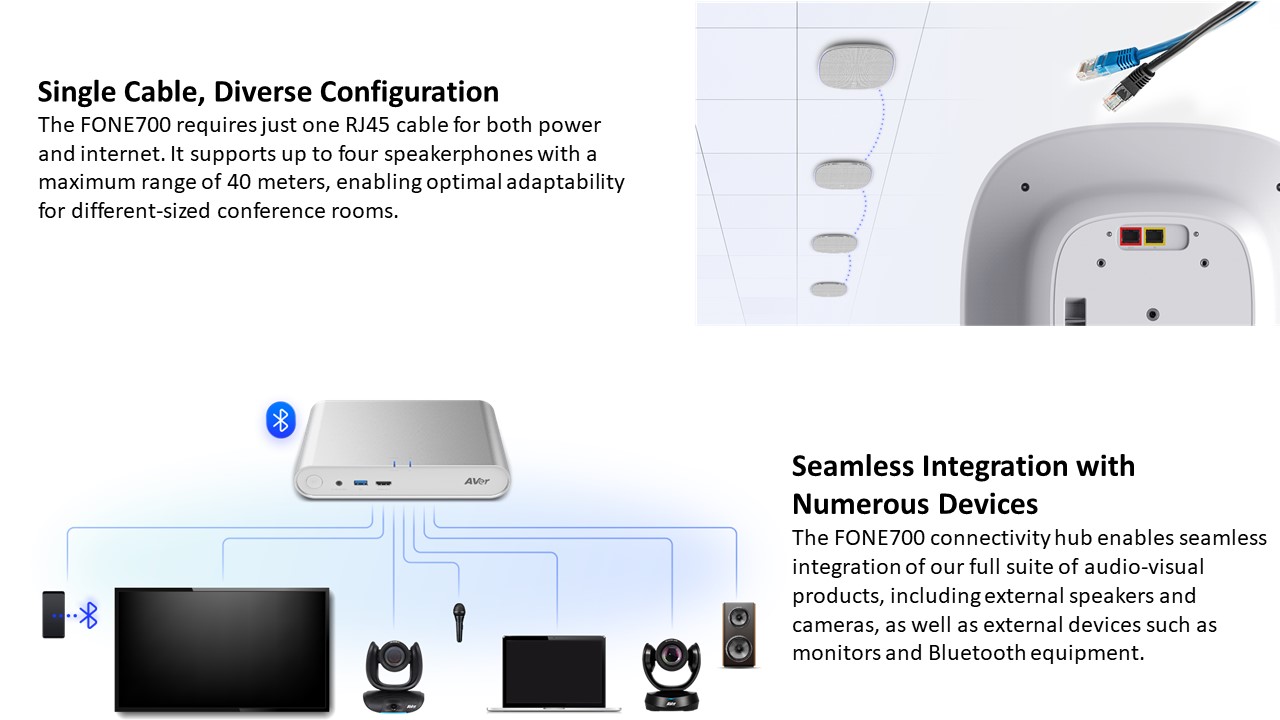

=        One cable daisy chain up to 4 speakerphones for flexible installation

=        Versatile connectivity for video conferencing integration

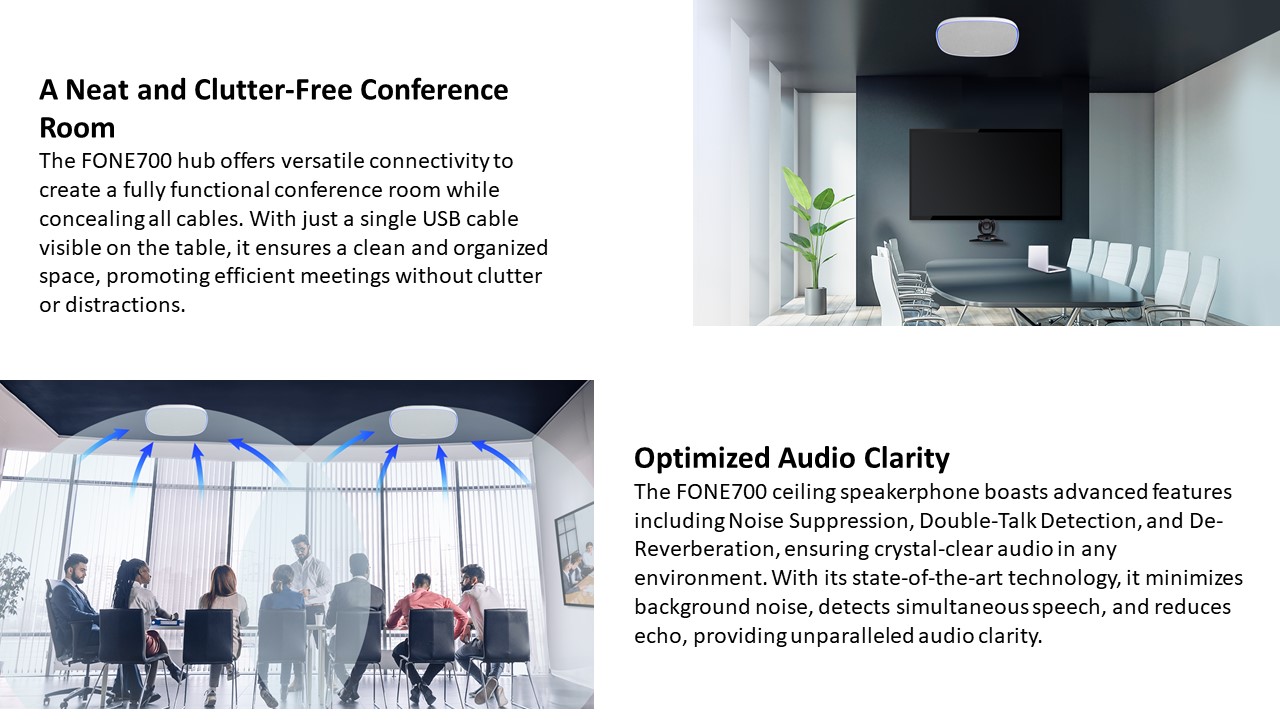

=        Advanced acoustic features optimized for ceiling installation, powered by AVer algorithm for uncompromised audio quality across daisy-chain setup

=        Acoustic echo cancellation (AEC)

=        Advanced noise reduction (NR)

=        Automatic gain control (AGC)

=        Double-talk detection

=        De-reverberation

=        AI noise suppression

=        Voice fencing

*Via future firmware update/additional setting required

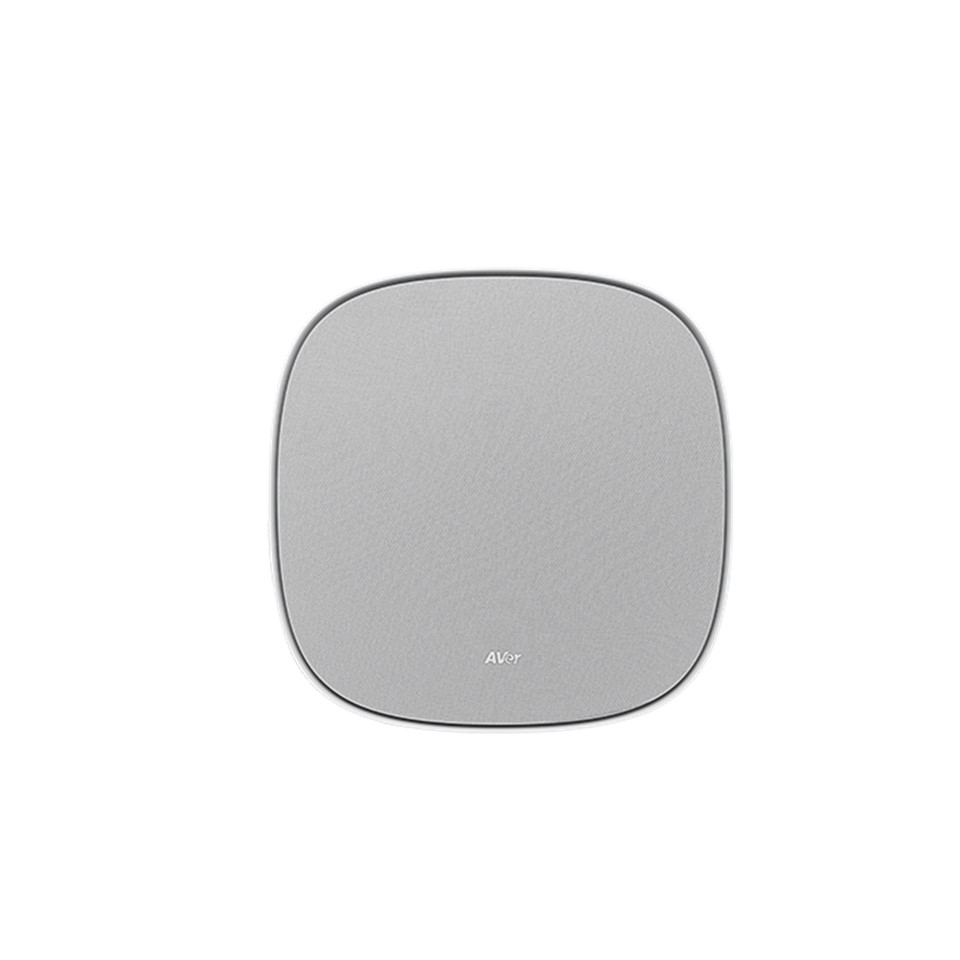

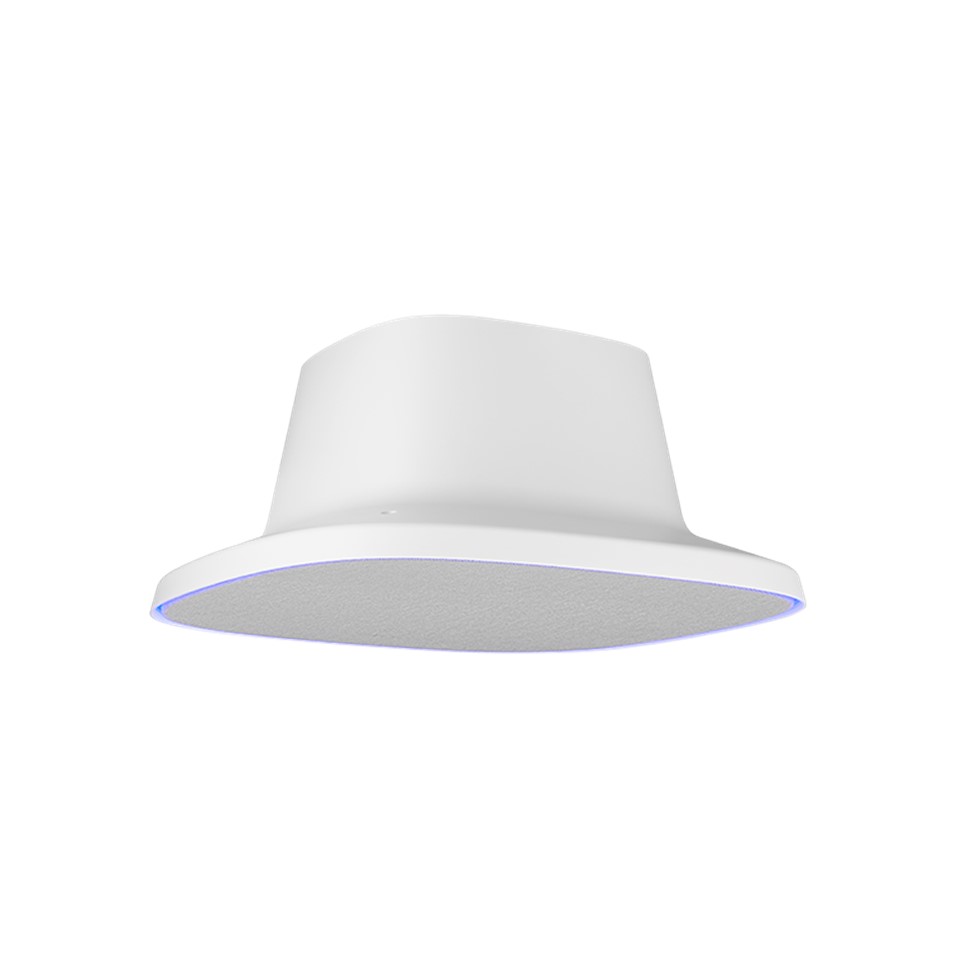

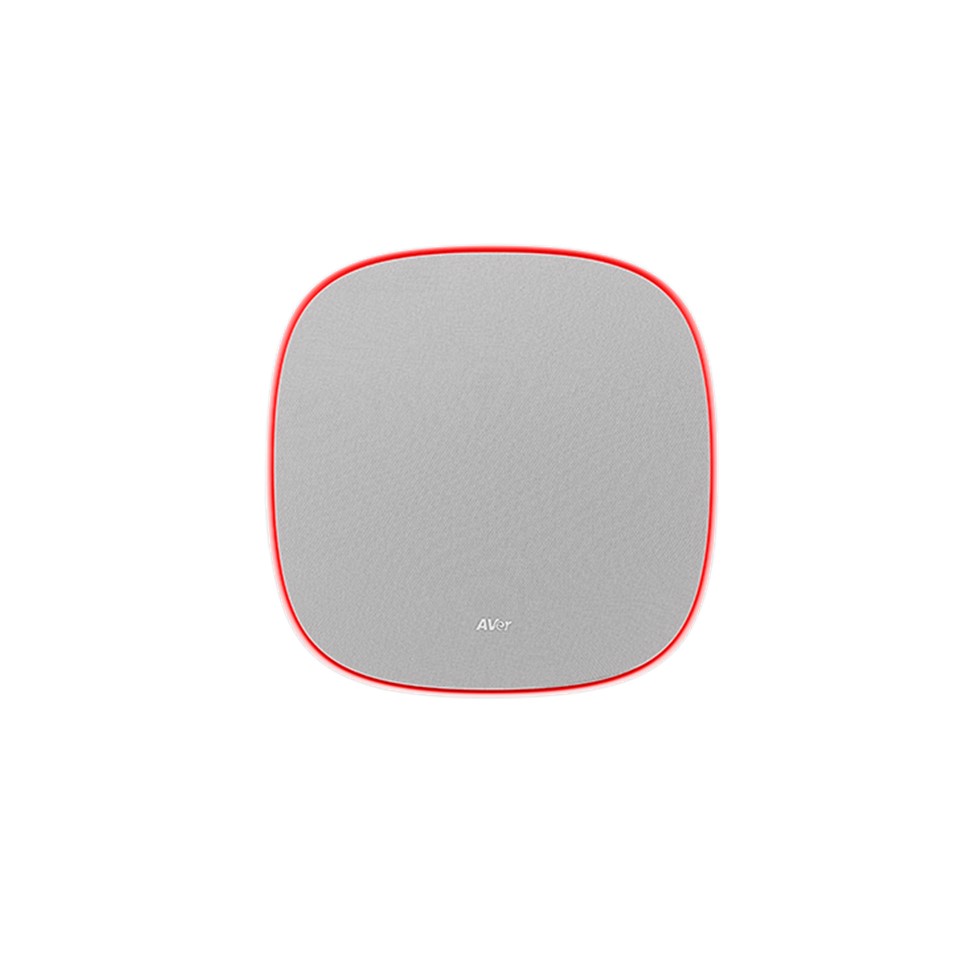

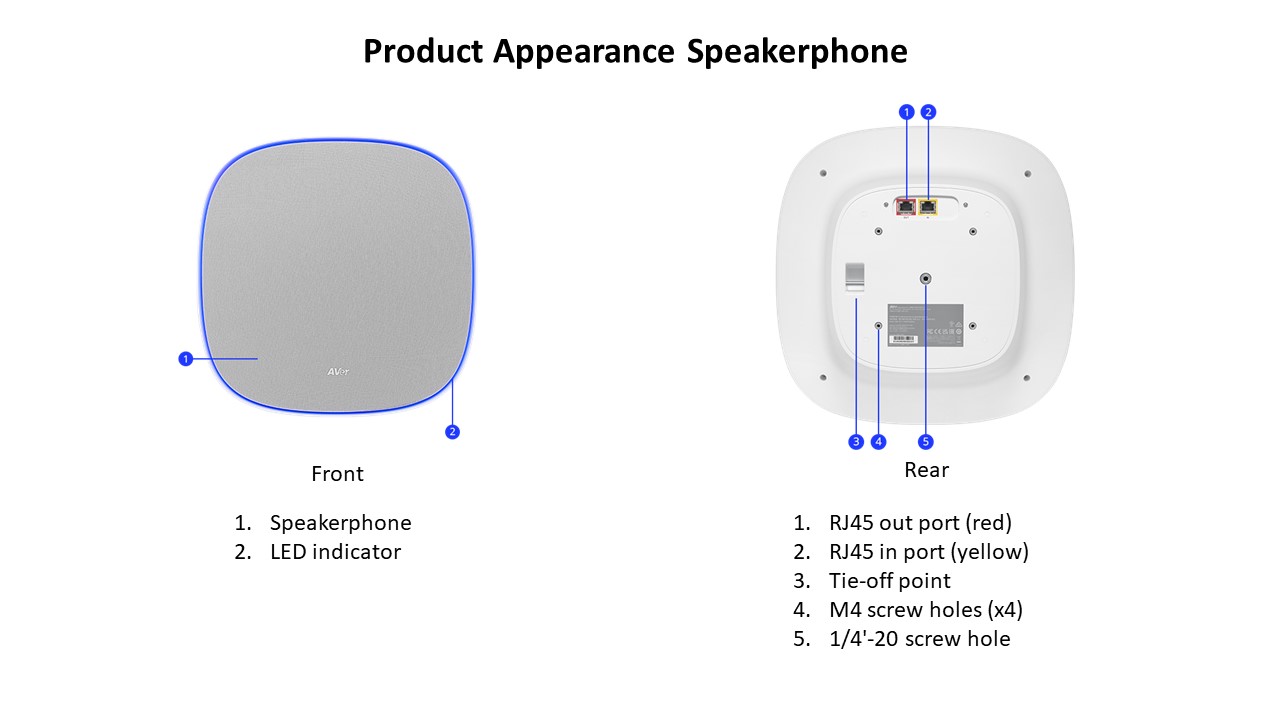

FONE700 Speakerphone

=        3 units directional + 18 units omnidirectional microphones

=        Acoustic pickup angle: 360 degrees per unit

=        Acoustic pickup range*: up to 3.5 m radius per unit

=        Speakerphone volume: adjustable, up to 99 dB SPL at 0.5 m

=        Daisy chain: up to 4 speakerphones with AVer-supplied RJ45 cable(s)

*Optimal performance varies depending on acoustic treatment of meeting room

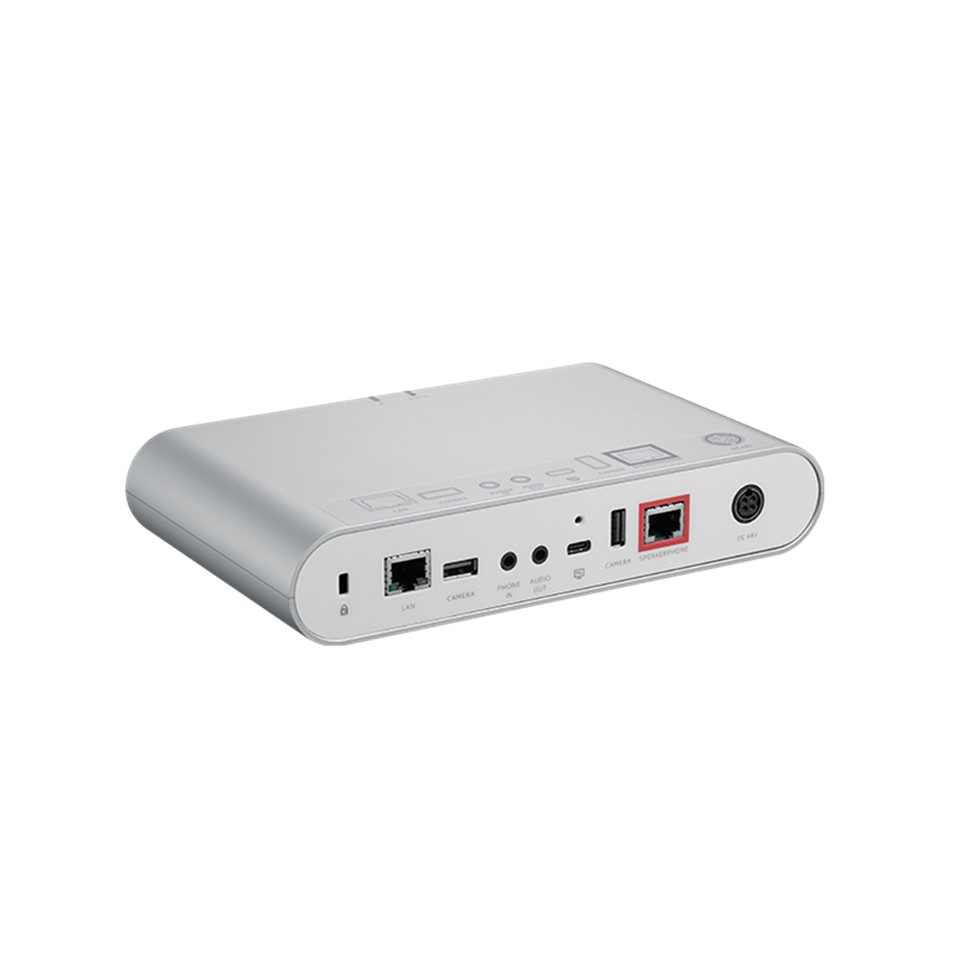

FONE700 Hub

=        Acoustic DSP Hub for speakerphone, expandable up to 3 additional units

=        One cable 48 V powered from Hub to 4 speakerphones via AVer-supplied Cat5 cable; no additional power required

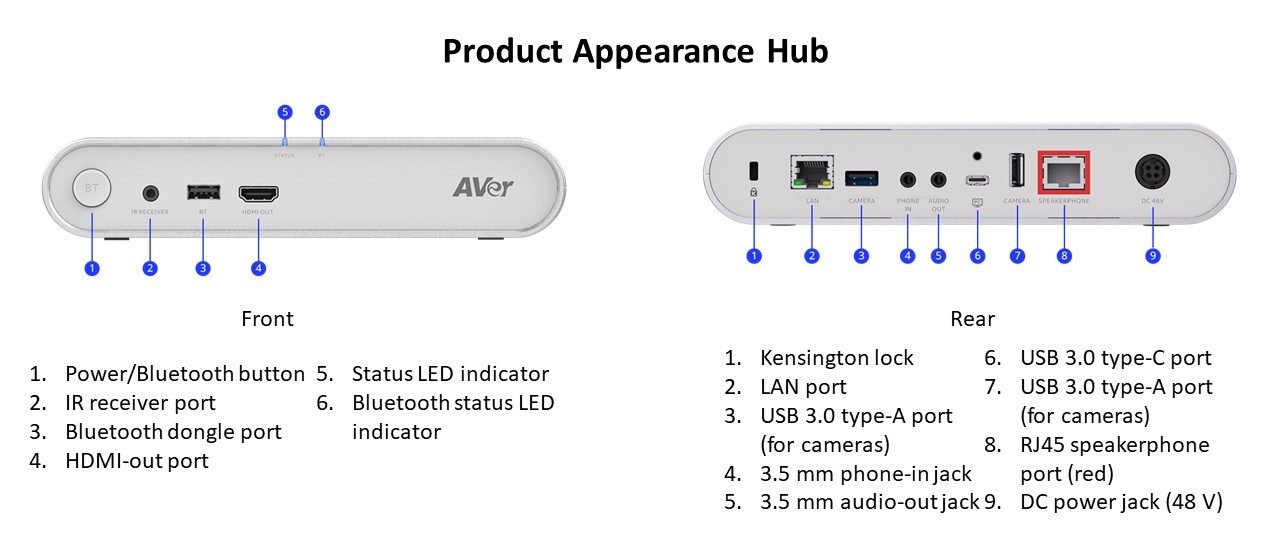

=        Integration for video conferencing with versatile connections for:*

=        USB 3.0 type-C port for PC connection

=        USB 3.0 type-A ports for AVer USB cameras hub; up to 2 cameras connected

=        USB 2.0 type-A port for BT dongle connection

=        Speakerphone port for AVer proprietary daisy-chained technology

=        LAN port for remote control and AVer Virtual Audio technology

=        4K HDMI output (for USB to display output from connected PC)

=        3.5 mm line-out jack for external speaker or hearing aid system

=        3.5 mm phone-in jack for phone calls or external microphone input

*Settings configured in PTZApp 2 or via web browser

Connection

=        USB with USB Audio Class (UAC) 1.0

=        RJ45 with AVer proprietary Virtual Audio (IP streaming)

Control

=        USB Plug and Play: Video conference software with mute/unmute, volume up/down

=        PTZApp 2 for advanced settings and AVer Virtual Audio streaming

=        Web browser for advanced remote settings

Security

=        Safety tether attachment points on speakerphone

=        Kensington slot on Hub

Power Supply

=        AC 100 V to 240 V, 50/60 Hz

=        Consumption: 48 V, 3.75 A

PTZApp 2

=        Value-added AVer Free Software for Meeting Collaboration

=        Auto/manual firmware upgrades

=        Acoustic settings

=        Operating status diagnosis

=        AVer proprietary Virtual Audio streaming technology

System Requirements for PTZApp 2

=        Operating system

=        Windows® 7/10/11 or later

=        Mac OS X v10.14 or later

=        Processor: 3.2 GHz Intel® Core™ i5-4460 or later

=        Memory: 4 GB RAM

Environmental Data

=        Operating temperature: 0°C to 40°C

=        Operating humidity: 20% to 80%

=        Storage temperature: -20°C to 60°C

=        Storage humidity: 20% to 80%

Dimensions

=        Package dimensions: 39.2 x 39.2 x 24 cm

=        Package weight: 7.83 kg

=        Hub: 21 x 12.5 x 4 cm/1.06 kg

=        Speakerphone: 37 x 37 x 16.5 cm/3.31 kg

Package Contents

=        FONE700 Ceiling Speakerphone

=        FONE700 Hub

=        Power adapter (48 V/3.75 A)

=        Power cable

=        RJ45 cable (10 m)

=        USB-C 2.0 cable (5 m)

=        Hub wall mount bracket with screws

=        Mount drill template

=        Quick Start Guide

Optional Accessories

=        Ceiling Speakerphone with 10 m cable supplied (for daisy chain)

=        RJ45 cable (10/20 m)

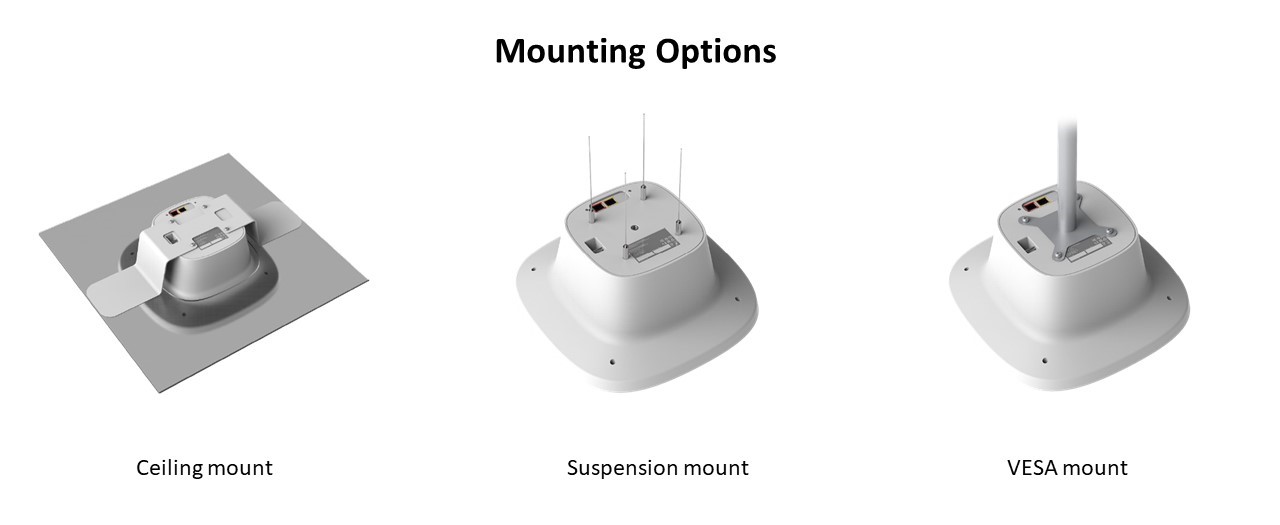

=        Ceiling mount kit

=        BT dongle

=        IR Receiver cable

Warranty

=        Speakerphone/ hub: 3 years

=        Accessories: 1 year

*We offer an optional 2-year extended warranty in the European area. Please contact your local agency for details

Compatible Applications

=        Software supports UAC connections, e.g., Zoom, Zoom Rooms, Microsoft Teams, Microsoft Teams Rooms, Google Meet, etc

* Specifications may vary depending on location and are subject to change without notice.
