Product Details
Enquiry

<img src='/assets/richtexteditorphp/richtexteditor/images/media.png' width='20' height='20/' alt="" />Video /editor_img/AVer/VB342/VB342 4K USB Video Soundbar for Huddle Rooms.mp4

Spec

Camera
- Sony Exmore sensor: Ultra crystal-clear image support up to 4K
- Frame rate: 4K 30fps; 1080p, 720p, 960 x 540, 848 x 480, 800 x 448, 640 x 480, 640 x 360, 424 x 240, 320 x 240, 320 x 180 at 60, 30, 15fps
- SmartFrame & SmartSpeaker: Automatic FOV adjustment (auto focus) to fit all participants and focus on the speaker
- 120° wide field of view
- True WDR up to 120 db: Superb back light compensation technology for optimizing light balance in high-contrast conditions
- Digital zoom rate up to 4X leveraging 4K sensor
- 3D denoise technology maintains clear and natural imaging in low light conditions
- Mirror, AE, white balance: Auto, manual override via PTZApp
- Minimum focus distance: 80 cm
- Analytics API: Enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
Motorized Pan and Tilt Movement
- Pan: Total horizontal viewing area 180°
- Tilt: Total vertical viewing area 105°
- 10 camera presets (through remote control)
- Fast and quiet pan & tilt movement
Audio
- Microphones: 2 unidirectional microphones supporting 6 m pickup
- 5Wx2 stereo full range speakers with professional bass port tuned for communication
- Volume up to 96 dB SPL at 1/2 meter
- Echo cancellation
- Noise suppression
- 3.5 mm Line-in (aux) cable connects BYOD smartphones or PCs as speakerphones

HDMI
- DisplayLink: Built-in USB 3.1 (Gen 1) to HDMI adapter
- 1080p HDMI output to TV**
** Win7/8 OS: Must install DisplayLink driver via AVer PTZApp

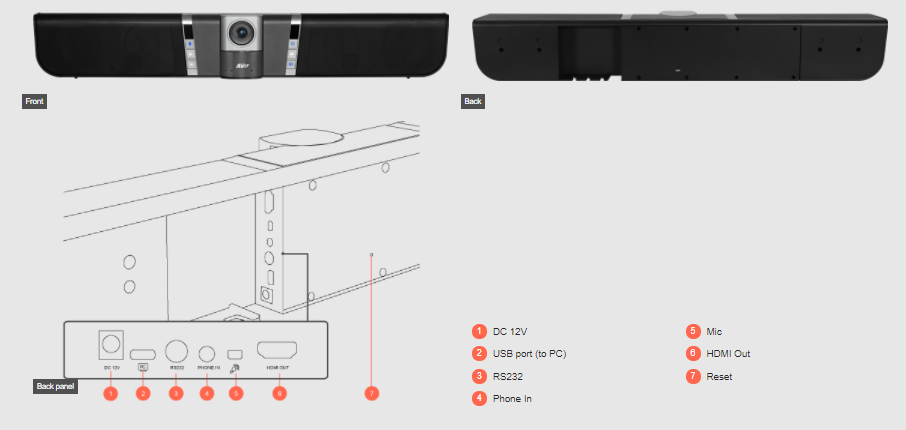

Connectivity
- 12V/5A power adaptor
- Mini DIN6 for RS232 connection
- USB type C connector
- HDMI out connection (DisplayLink)
- Phone in (3.5 mm audio jack)
- Mic input
- Wireless connection with mobile devices**
**Wireless function is not supported in the USA and some other countries. Please contact a local agent for details.
**Wireless connection does not support wireless speakerphone devices.
Video Format
- YUV, YUY2, M-JPEG

USB
- 3.1 Gen 1, backward compatible USB 2.0
- UVC (USB Video Class) 1.1
Control
- IR remote control
- VISCA/pelco P/pelco D via RS232
- UVC/UVA plug-and-play
- PTZApp
Security and Mount
- Camera wall-mount bracket included

System Requirements
- Windows 7/10
- MacOS X 10.7 or higher
- Google Chromebook version 29.0.1547.70
- Android 5 or higher
Hardware Specs*
- 2.4 GHz Intel® Core™2 Duo processor
- 2 GB RAM or more
- USB 3.1 Gen1 port (supports 4K); USB 2.0 port (supports up to 1080p)
Power Supply
- AC 100V~240V, 50/60 Hz
- Consumption: 12V, 5A

Free Applications for Meeting Collaboration
(Free app support on Windows® and Mac computers)
EZManager: Camera Central Management Software
- Remotely group FW/SW upgrades, control the camera, and manage settings
PTZApp
- Compatible with Skype plugin for answering and hanging up via remote control
- Upgrade firmware automatically or manually
- Control the camera
- Set parameters and adjust the camera image
- Diagnose operating status
- View live video
EZLive
- Real-time streaming / annotating / image capturing / video recording
Environmental Data
- Operation temperature: 0°C~40°C
- Operation humidity: 20%~80%
- Storage temperature: -20°C~60°C
- Storage humidity: 20%~80%
Dimensions
- Package dimensions: 739 x 193 x 229 mm
- Package weight: 4.16 kg/9.3 lbs
- Camera: 650 x 100 x 109.5 mm/2.133 kg
- Remote control: 200 x 50 x 21 mm/0.09 kg

Package Contents
- VB342+ unit
- Power cable 10 ft (3 m)
- USB 3.1 type-C to type-A Cable 6 ft (1.8 m)
- USB 3.1 type-A to type-C adapter
- Quick-start guide
- Wall-mount bracket and screws
- Warranty card
- Remote control
- Battery
Optional Accessories
- Mini DIN6 to RS232 adapter
- TV mount and mounting screws
- 33 ft (10 m) expansion microphone
- 66 ft (20 m) expansion microphone
- 33 ft (10 m) USB 3.1 extension cable
- 66 ft (20 m) USB 3.1 extension cable
- 16 ft (5 m) USB 2.0 cable
Warranty**
- Camera: 3+2 years
- Accessories: 1 year
** Please register online to receive a free 2-year warranty extension.
For detailed warranty information, please contact an AVer representative.

Compatible Applications
- Zoom, Microsoft® Teams, Skype for Business, Skype, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
*For 4K UHD support, please check system/hardware requirements with your software application provider.
