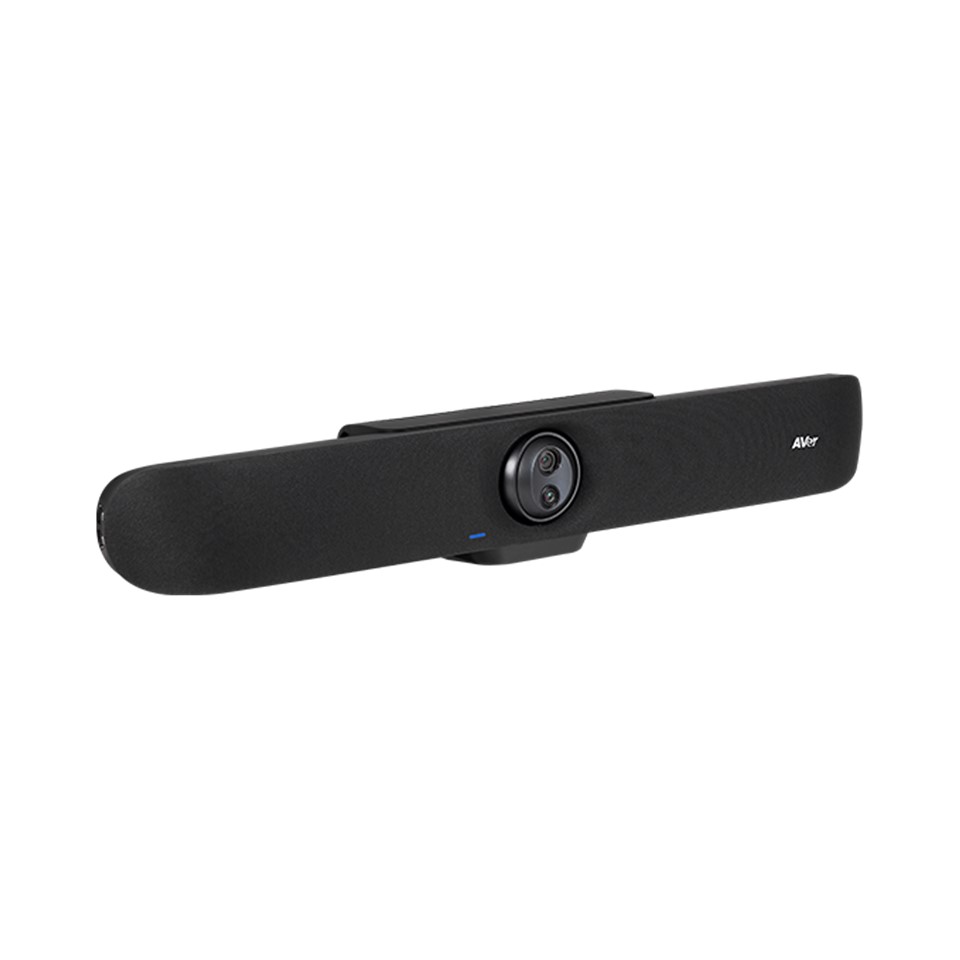

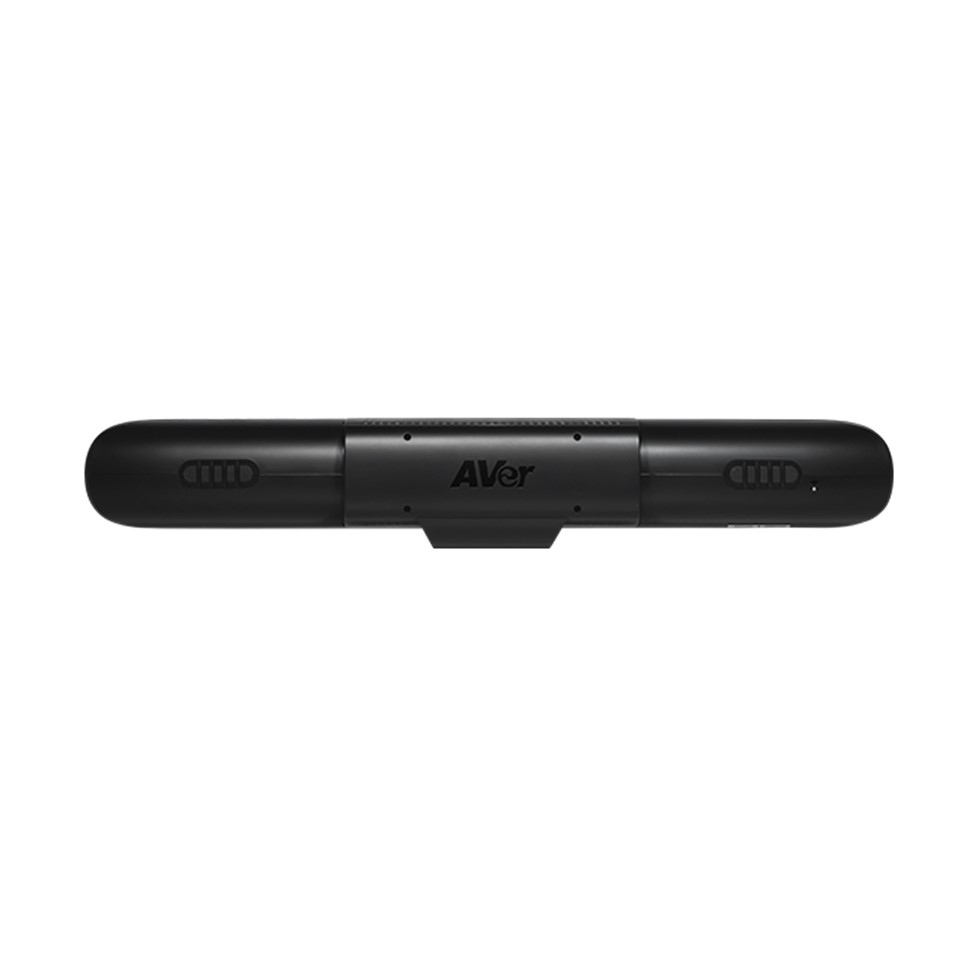

Dual Lens PTZ Video Bar With a Hybrid 18X Zoom for Medium & Large Rooms

With a streamlined design, dual 4K lenses, seamless lens switching, upgraded audio technology, and simple setup, the VB350 is the ultimate all-in-one solution for next-level video meetings. Level up to premium audio and video by using this powerful new video bar in your mid-to-large conference rooms.





Specifications

Camera

=        4K dual-lens technology delivers a wide 113° field of view (FOV) with 18X zoom

=        4K 3X varifocal lens: FOV (D/H/V) 92°/81°/50°

=        4K fixed lens: FOV (D/H/V) 113°/105°/71°

=        Sony 4K sensor: ultra-crystal-clear image in any lighting

=        Frame rate: (16:9) 1280 x 720 at 60, 30, 15fps; 4K, 3264 x 1836, 2560 x 1440, 1920 x 1080, 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 30, 15fps

=        Adjustable audio fence: Freedom to define wide/ medium/ narrow view fence

=        SmartFrame & SmartSpeaker: Automatic tracking and FOV adjustment to fit all participants and focus on the speaker

=        Presentation mode: Voice-triggered tracking on both defined areas and speakers

=        Smart gallery* function enhances visibility

=        Gesture control for intuitive camera control

=        WDR, white balance and more image settings via PTZApp 2

=        Minimum focus distance: 100 cm

=        People counting API: Enterprises and third-party software providers can obtain people-counting and meeting-interval data tor better understand meeting space usage

*Please use PTZApp2 to set up 5X zoom.

Motorized Pan and Tilt Movement

=        Pan: Total horizontal viewing area 165°

=        Tilt: Total vertical viewing area 101°

=        10 camera presets

Audio

=        14-element beamforming microphone array

=        10 meters pickup range*

=        Volume up to 96 dB SPL at 1/2 m

=        Echo cancellation

=       AI noise suppression

*The recommended working distance for AI functionality is within 5 meters

HDMI

=        One cable solution: Built-in USB 3.1 (Gen 1) to HDMI adapter

=        4K HDMI output to TV*

*Windows® 7 and MAC OS: Need to install HDMI adapter driver

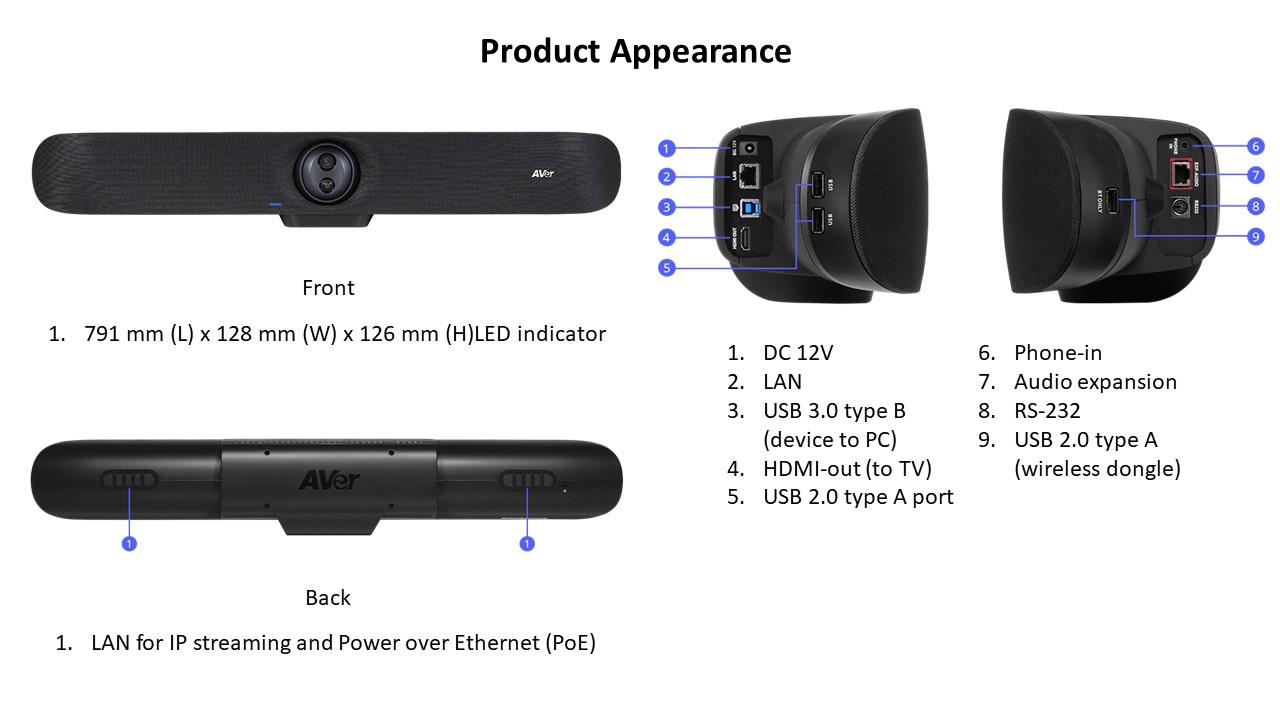

Connectivity

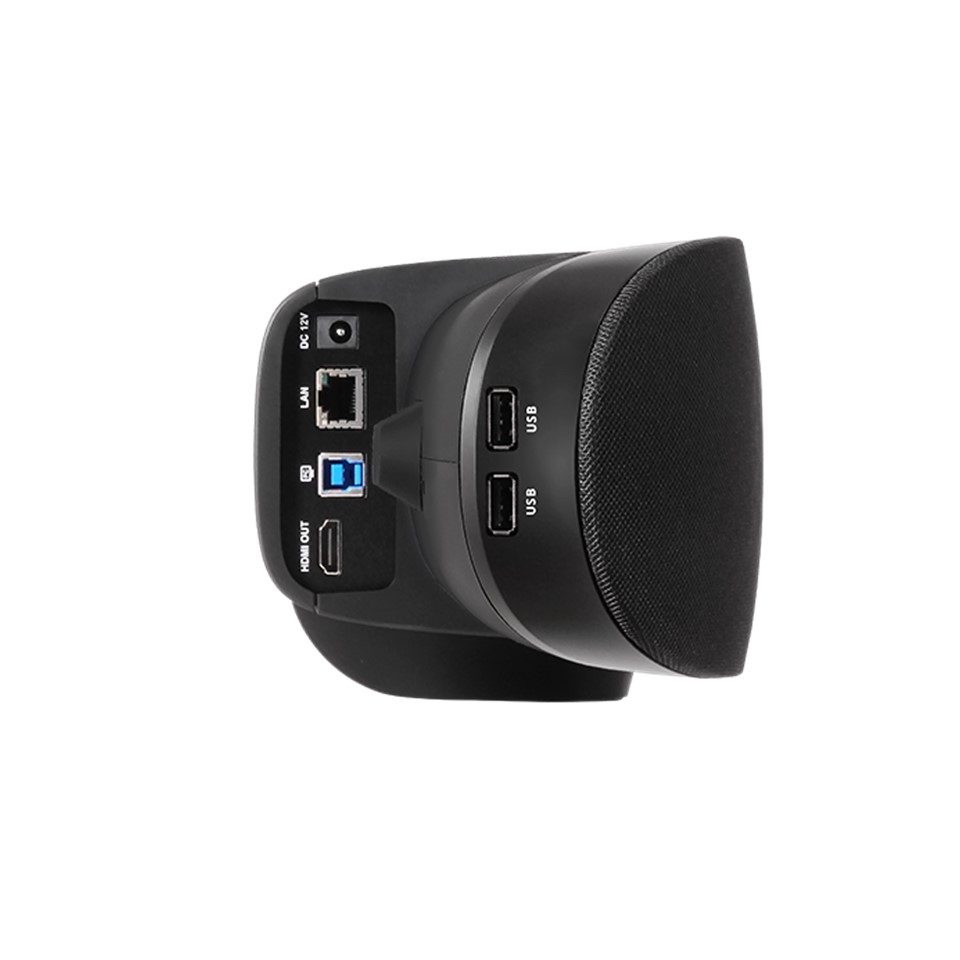

=        12V/5A power adapter

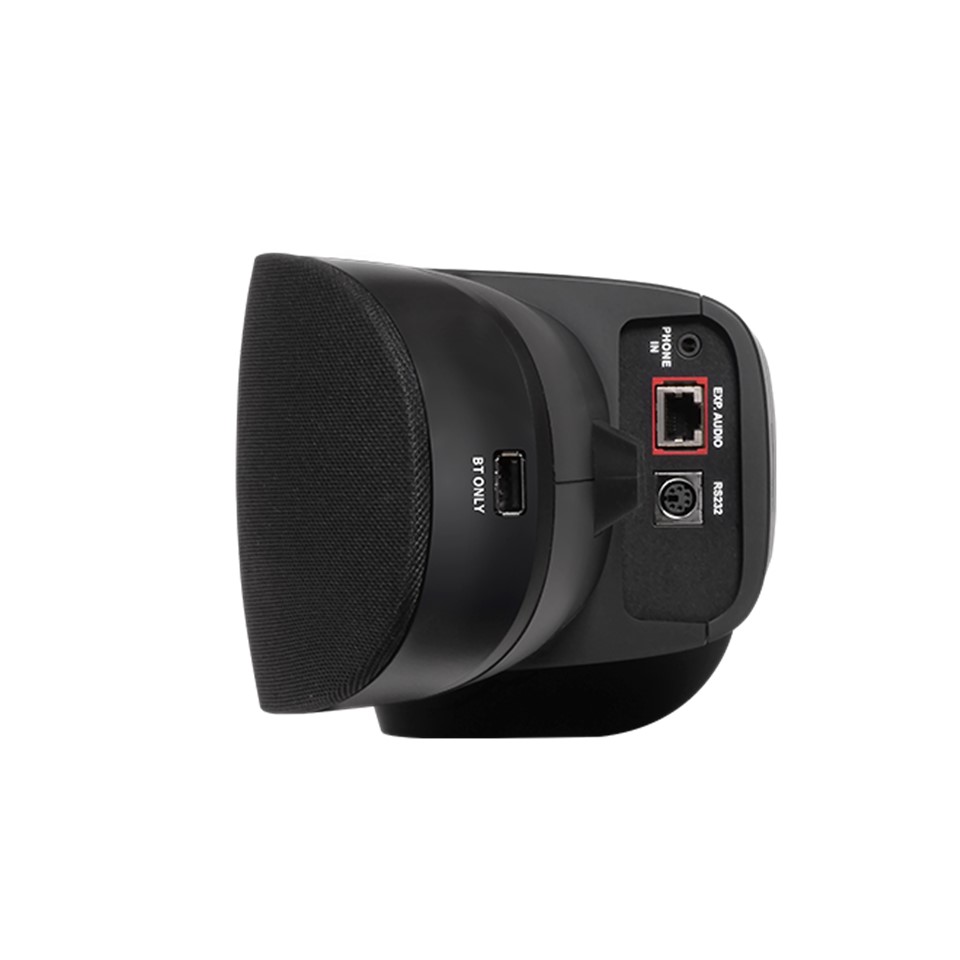

=        Mini DIN 6 for RS-232 connection

=        USB 3.1 type B port, backward compatible with USB 2.0

=        HDMI out connection (USB to HDMI adapter)

=        Phone-in (3.5 mm audio Jack)/speaker-out for HA system*

=        RJ45 ports x2: one for Ethernet, one for audio expansion speakerphone / microphone

=        USB 2.0 type A x3: Wireless connection**, USB to support IFP USB touch back, and expansion port

*Need to set up via PTZApp 2 and purchase an audio-out converter from AVer

**Optional wireless dongle needed to connect with mobile phone

Video Format

=        YUV, YUY2, M-JPEG

=        Network video compression formats: H.264

=        Network protocols: RTSP, RTMP

USB

=        3.1 Gen 1, backward compatible with USB 2.0

=        UVC 1.1 (USB Video), UAC 1.0 (USB Audio)

Control

=        IR remote control

=        WebUI: IP access via Chrome browser (Chrome 76.x or later; Internet Explorer not supported)

=        VISCA/pelco P/pelco D via RS-232/VISCA over IP

=        UVC/UAC plug-and-play

=        PTZApp 2

Mount and Security

=        Wall-mount bracket (included)

=        TV VESA mount kit (optional)

=        Kensington security lock

System Requirements

=        Software

=        Windows® 7/10/11

=        Mac OS X 10.14 or later

=        Chromebox 3 version 94.0.4606.114 or later

=        Hardware

=        3.2 GHz Intel® Core™ i5-4460 processor

=        4 GB RAM or more

=        USB 3.1 port, backward compatible with USB 2.0

Power Supply

=        AC 100V–240V, 50/60 Hz

=        Consumption: 12V/4.5A

Free Applications for Meeting Collaboration

(Free Apps support on Windows® and Mac® computers)

EZManager 2: Camera Central Management Software

=        Remotely group FW/SW upgrades, control the camera, and manage settings

PTZApp 2: Camera Setting Software

=        View live video, people counting number, meeting interval information

=        Enable Skype for Business far-end control

=        Upgrade firmware automatically or manually

=        Control the camera

=        Set parameters and adjust the camera image

=        Diagnose operating status

EZLive: Broadcasting Software

=        Enjoy multi-camera real-time streaming, annotating, image capturing, and video recording

Environmental Data

=        Operation temperature: 0 ~ 40°C

=        Operation humidity: 20% ~ 80%

=        Storage temperature: -20 ~ 60°C

=        Storage humidity: 20% ~ 80%

Package Contents

=        VB350 unit

=        Power adapter & cable

=        USB 3.1 type B to type A cable (3 m)

=        USB 3.1 type A to type C adapter

=        QR code card

=        Wall-mount bracket

=        Tripod Screws

=        Remote control

=        Wall-mount drill paper

Optional Accessories

=        Mini DIN 6 to RS-232 adapter

=        TV VESA mount

=        10 m/20 m expansion microphone

=        10 m/20 m expansion speakerphone

=        10 m/20 m/30 m USB 3.1 extender cable

=        5 m USB 2.0 type B to type A cable

=        Wireless dongle (for connecting with mobile phone)

=        Audio-out converter (TRS female to TRRS male)

Dimensions

=        Package dimensions: 872 mm (L) x 197 mm (W) x 260 mm (H)

=        Package weight: 7.4 kg

=        Camera: 791 mm (L) x 128 mm (W) x 126 mm (H)/3.3 kg

=        Remote control: 150 mm (L) x 42 mm (W) x 19 mm (H)/50 g

Warranty*

=        Camera: 3 years

=        Accessories: 1 year

*We offer an optional 2-year extended warranty in the European area. Please contact your local agency for details.

Compatible Applications

=        Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet™, Intel®Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit, V Cube

*For 4K UHD support, please check system/hardware requirements with your software application provider.
