Panel

Screen size : 65''

Panel type: IPS

Active area: 1428.5 × 803.5 mm

Resolution: UHD 3840 × 2160 pixels

Orientation: Landscape

Aspect ratio: 16:9

Panel brightness (typical): 450 nits

Contrast ratio (typical): 1200:1

Dynamic contrast ratio: 50,000:1

Response time: 8 ms

Color gamut: 72% NTSC

Color depth: 10-bit

Backlight life (typical): 50,000 hrs

Glass

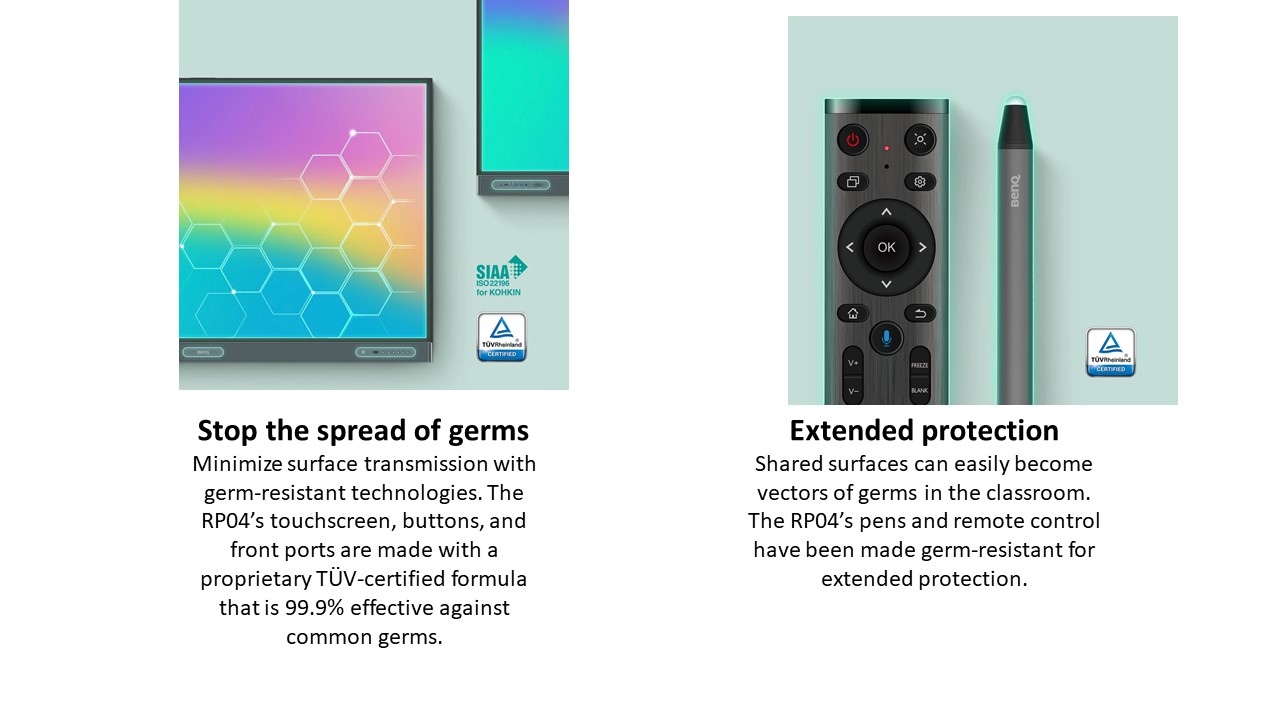

Germ-resistant technology: Nano-ionic silver

Anti-glare: Yes

Hardness: 9H tempered

Touch Screen

Touch technology: Ultra Precision IR

Touch points: up to 50

Touch response time: < 2.5 ms

System

Memory | Storage: 8GB I 64GB

OS: Android 13 (EDLA)

GPU: Arm Mali-G57 MC5

CPU: Arm Cortex-A78 × 4 + A55 × 4

Connectivity

VGA: 1

HDMI (in | out): 4 × HDMI 2.0 | 1 × HDMI 2.0

Display Port: 1 × 1.2a

USB-A: 7 × 3.0, 1 × 2.0

USB-C: 1 × 3.0 (PD 100 W), 2 × 3.0, 1 × 2.0 (PD 65 W)

USB-B (for touch): 3 × 3.0

3.5 mm Line in (1): Mic × 1

3.5 mm Line in (2): PC Audio × 1

3.5 mm Line out: Earphone × 1

OPS slot (for slot-in PC): 1

Wi-Fi: Wi-Fi 6

Bluetooth®: Bluetooth 5.2

S/PDIF out: 1 (optical)

Ethernet: 2

RS-232: 1

Built-in peripherals

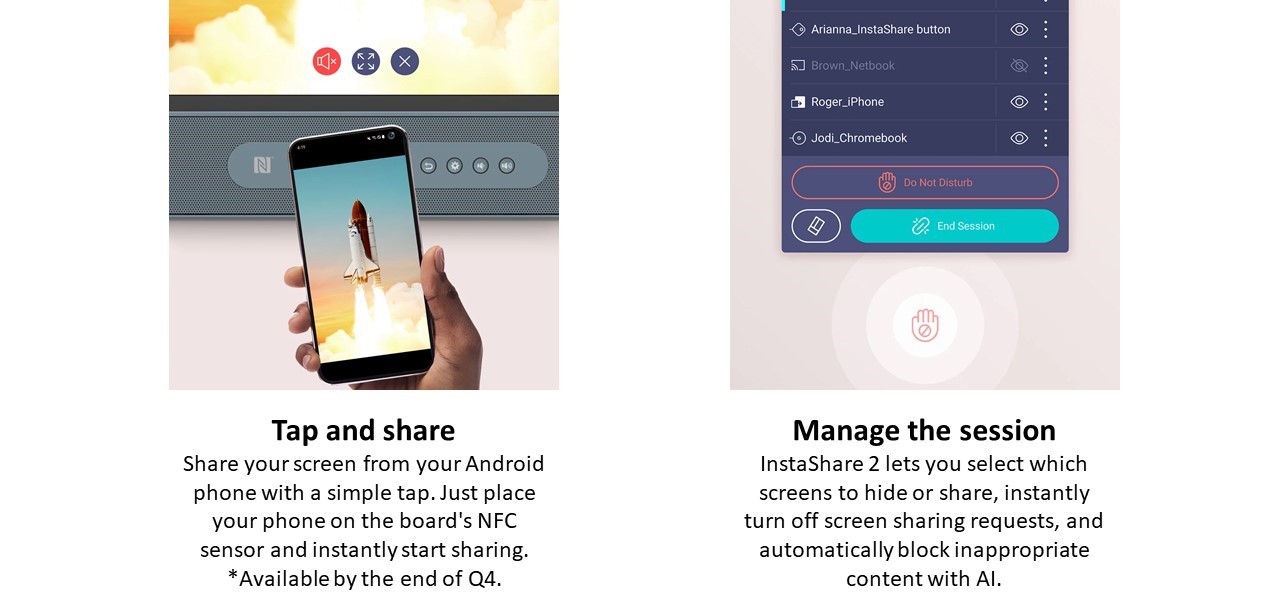

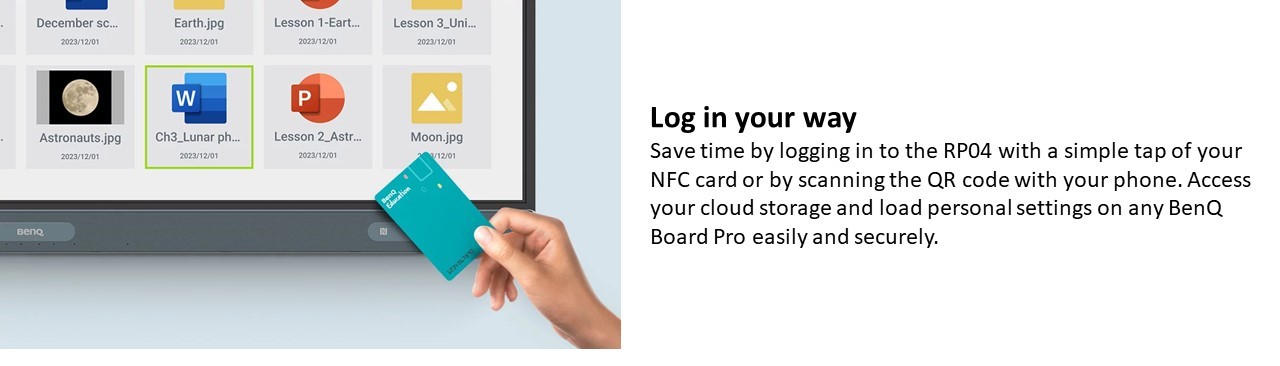

NFC sensor: Yes

Ambient light sensor: Yes

IR sensor: Yes

Motion sensor: Yes

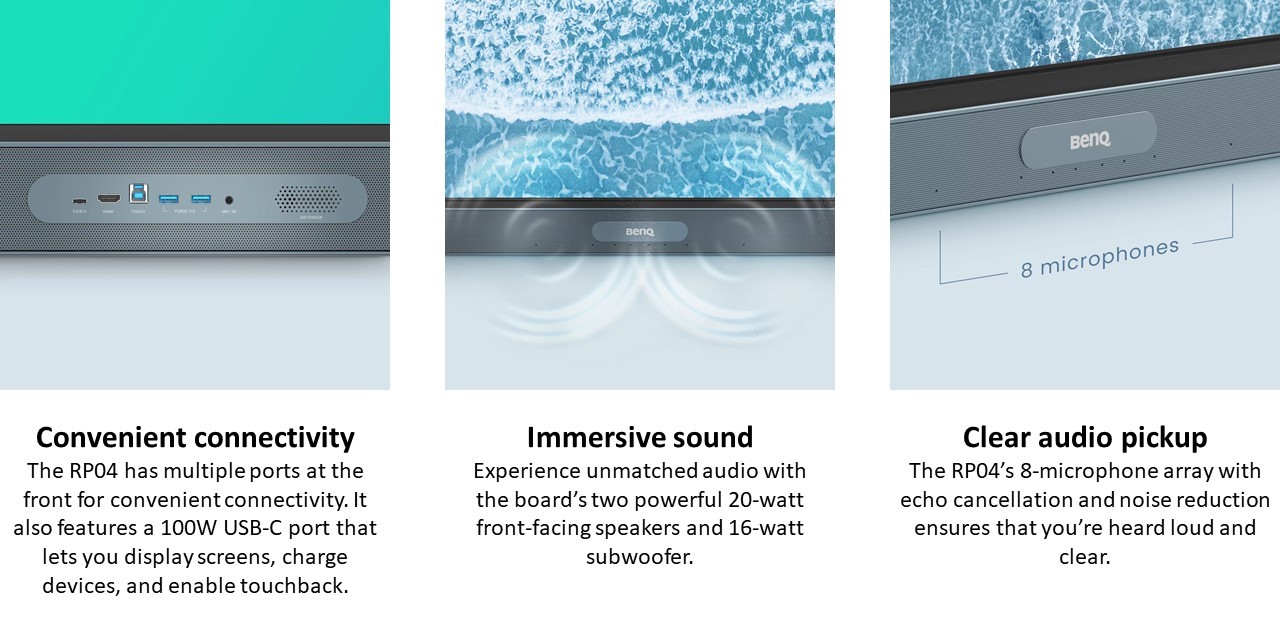

Microphone: 8-microphone array (range: up to 8 m | 26ft)

Speaker: 2 × 20 W (max)

Subwoofer: 1 × 16 W

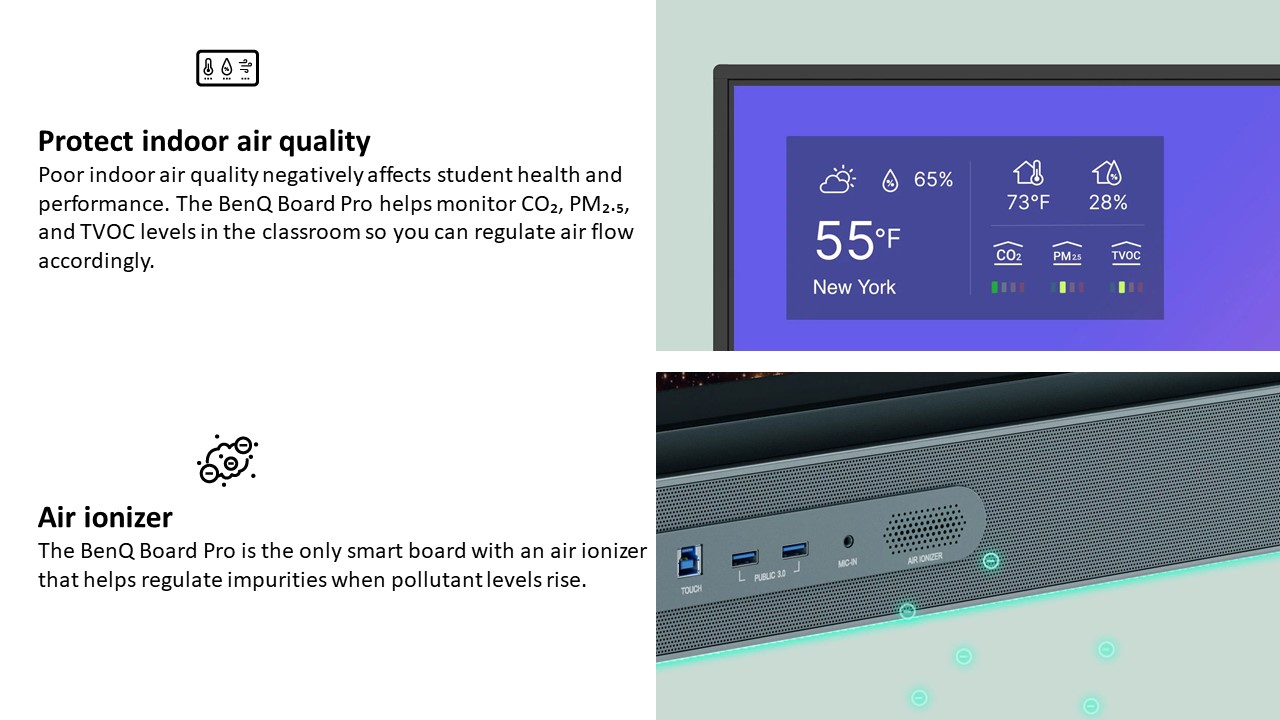

Air sensor: CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature, humidity

Air Ionizer: Yes

Power

ENERGY STAR®: Yes

Power: AC 100-240V 50/60Hz

Standby power consumption: <0.5 W

Typical power consumption: 95.0 W

Physical

Dimensions (W x H x D): 1488.4 × 937.6 × 117.7 mm (58.6 × 36.9 × 4.6 inch)

Shipping dimensions (W x H x D): 1628 × 1024 × 208 mm (64.1 × 40.3 × 8.2 inch)

Weight (product I shipping): 40.6 kg | 47.8 kg (89.5 lbs | 105.4 lbs)

Mount (screws): VESA 600 × 400 mm (4 × M8 × 25L)

Pen Tray: Yes

Environment

Operating temperature: 0°C ~ 40°C | 32°F ~ 104°F

Storage temperature: -20°C ~ 60°C | -4°F ~ 140°F

Storage humidity: 10% ~ 90% RH Non-Condensing

Operating humidity: 10% ~ 90% RH non-condensing

Software

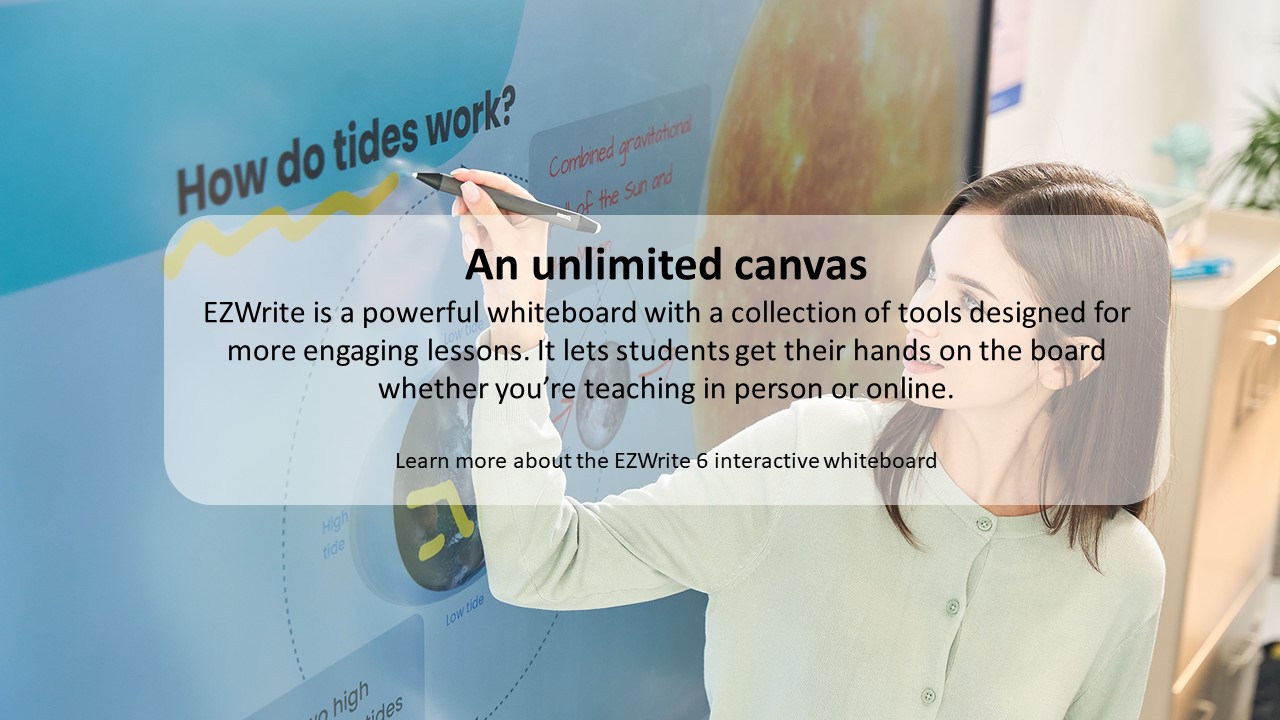

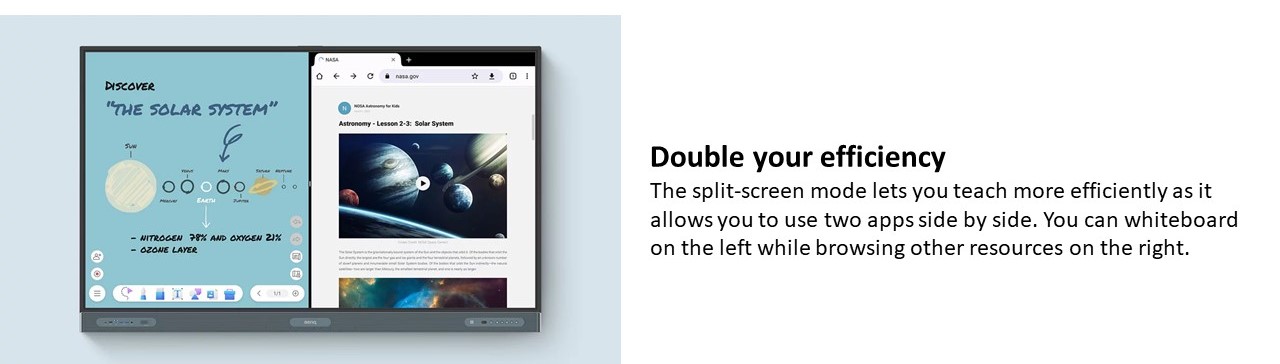

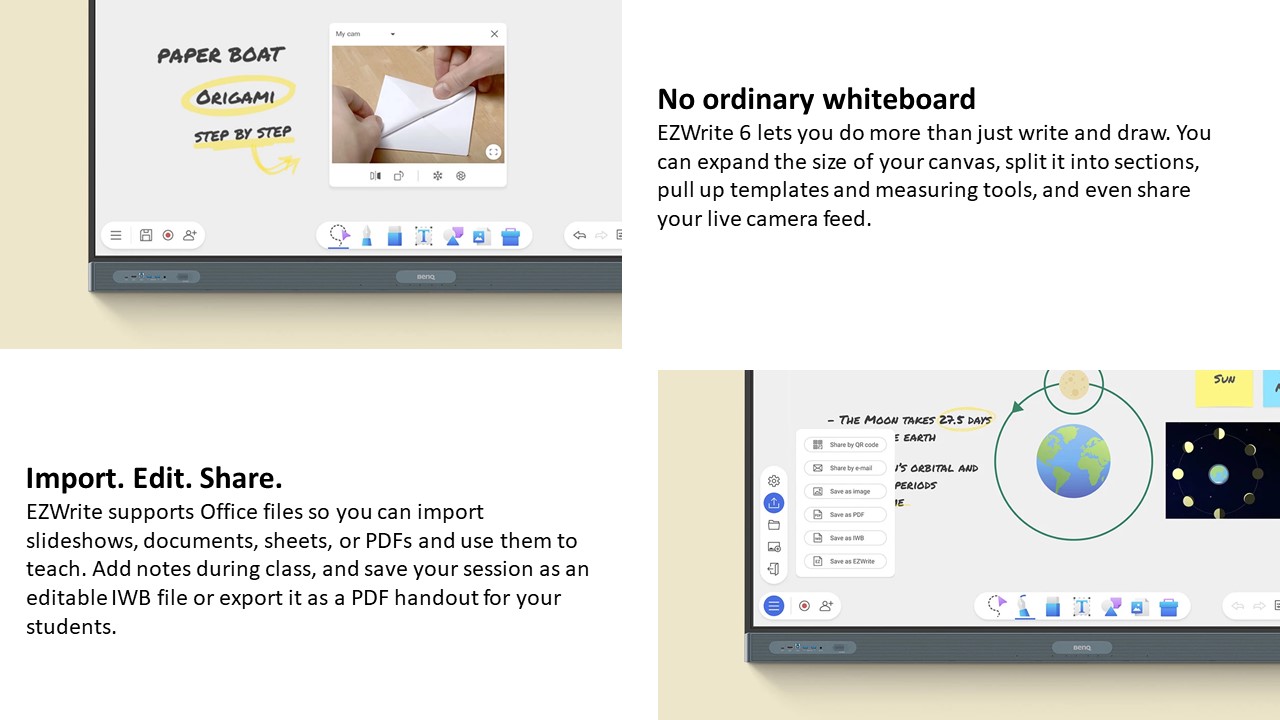

Whiteboarding: EZWrite 6.0

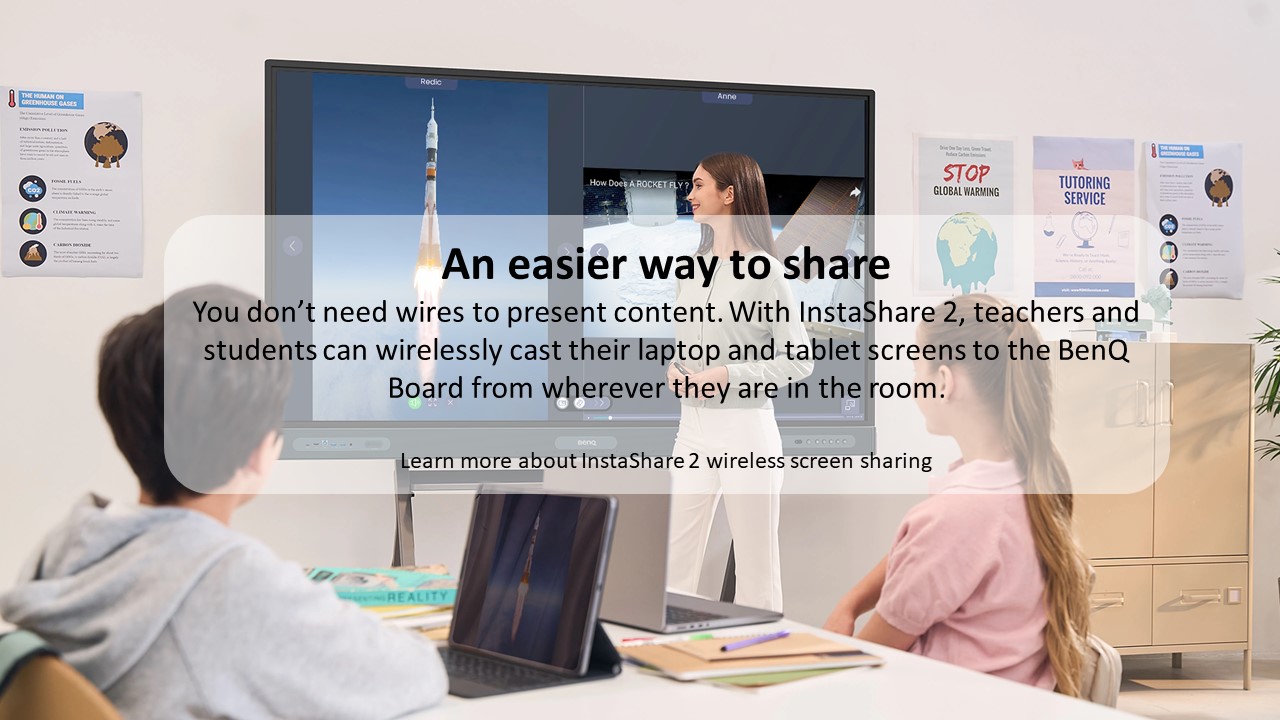

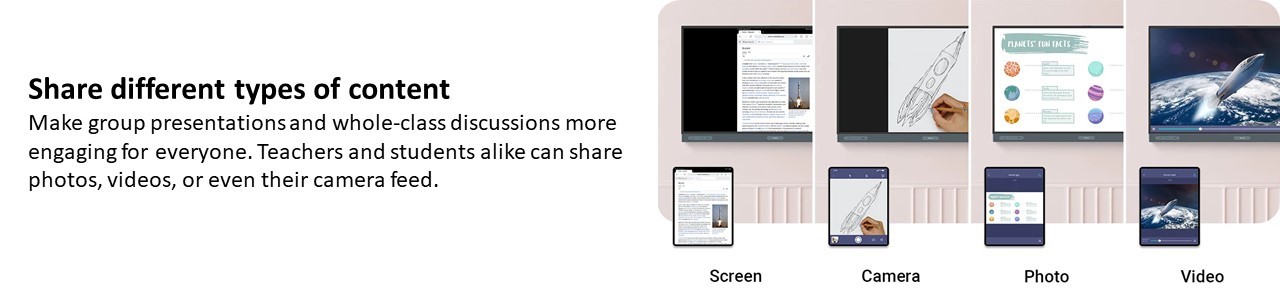

Wireless screen sharing: InstaShare 2

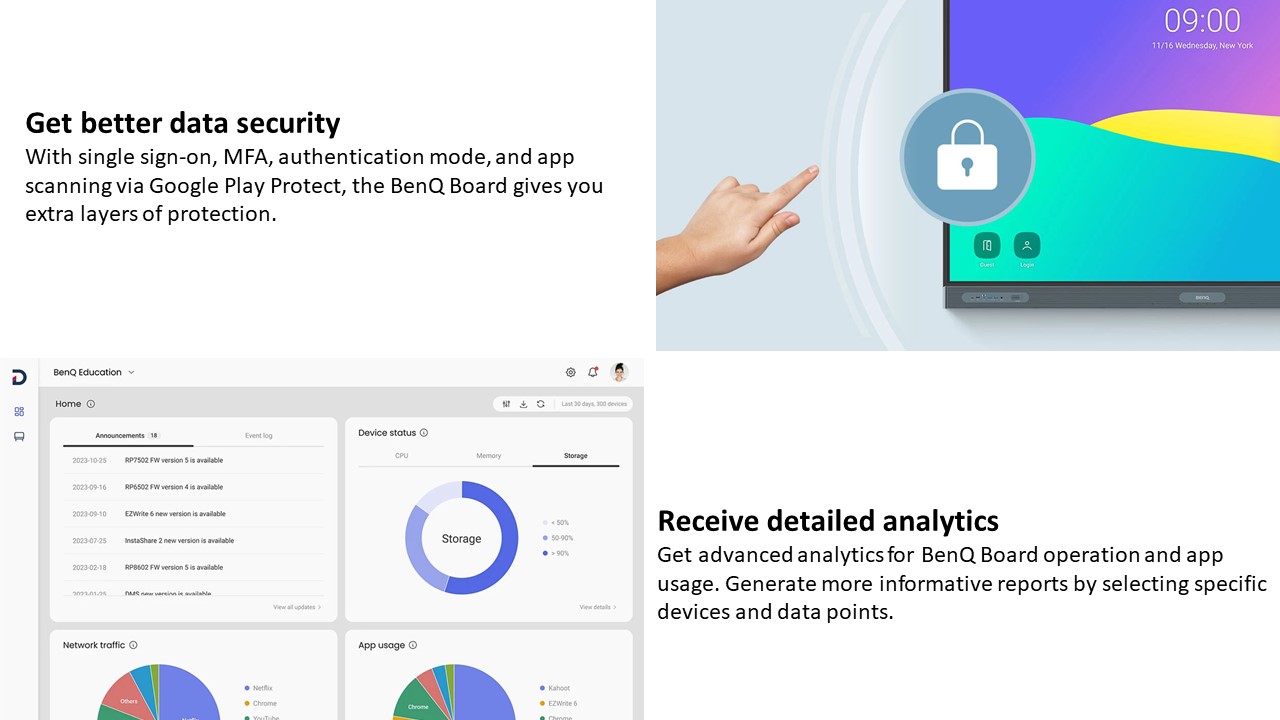

Device management: DMS

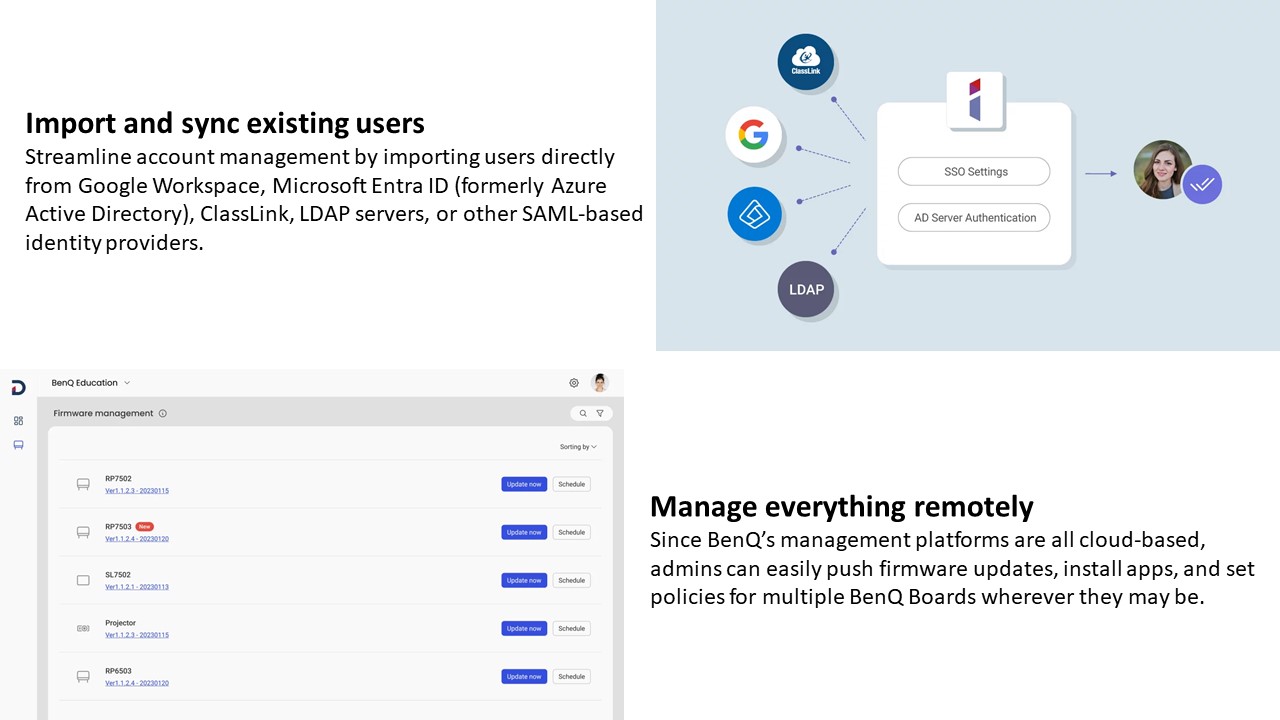

Account management: AMS

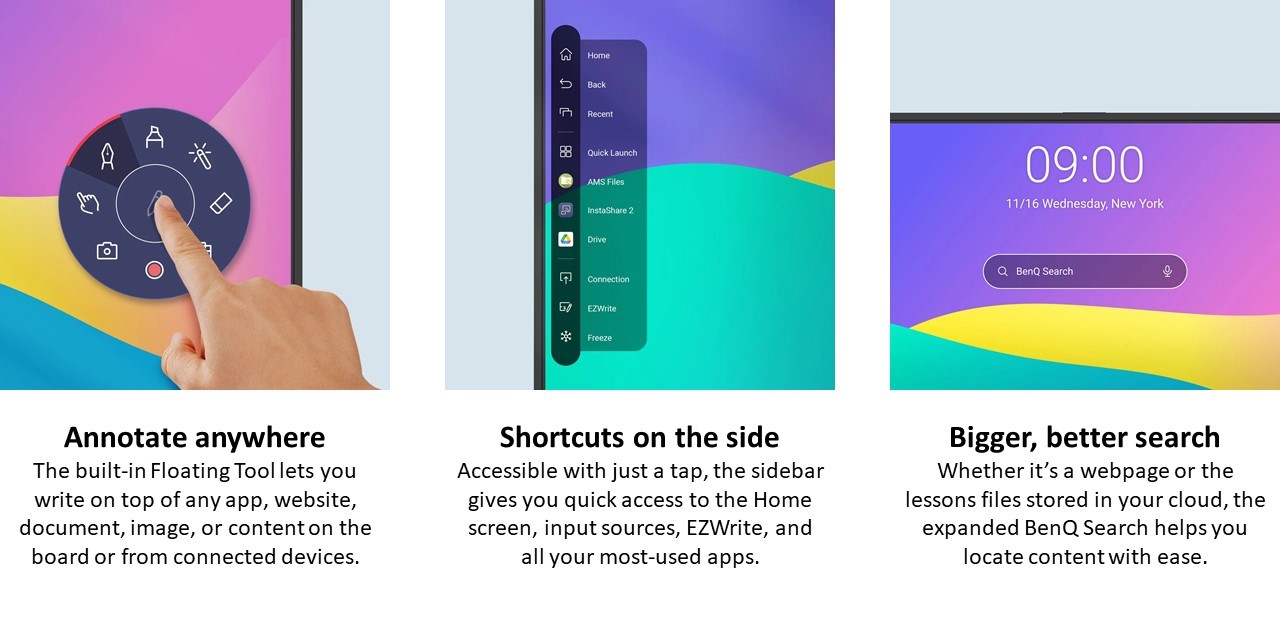

Quick access tool: Floating Tool

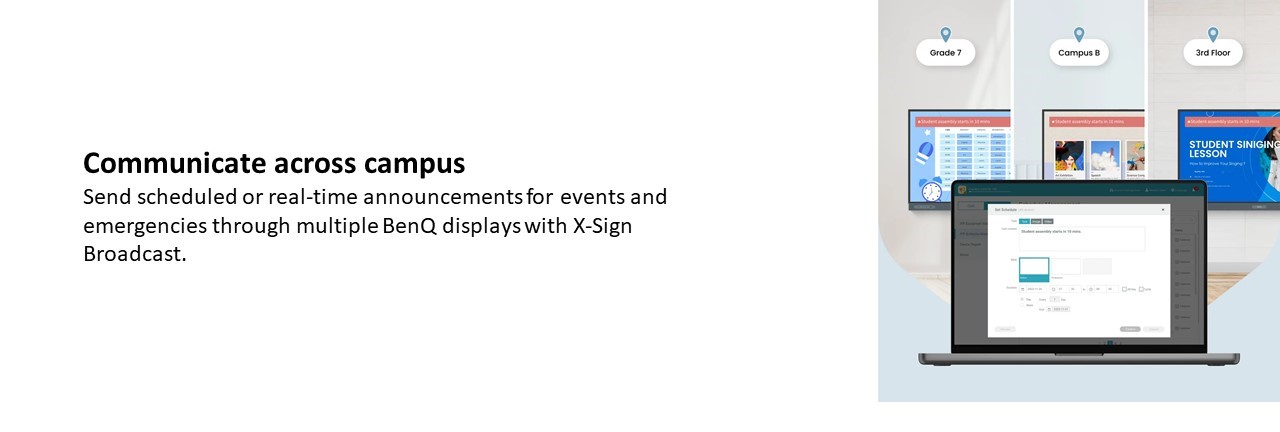

Broadcast system: X-Sign Broadcast

Accessories

Cables: 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)

Wall mount: 1

Pen: 2

Remote control: 1
