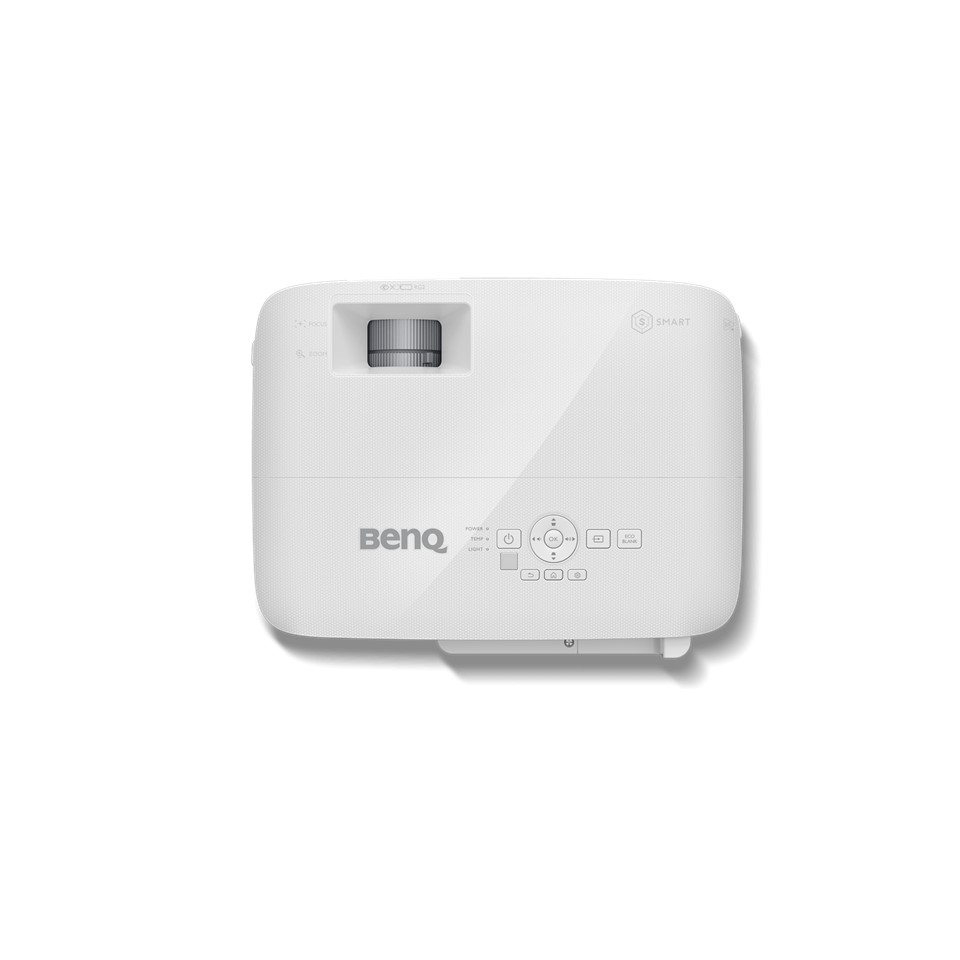

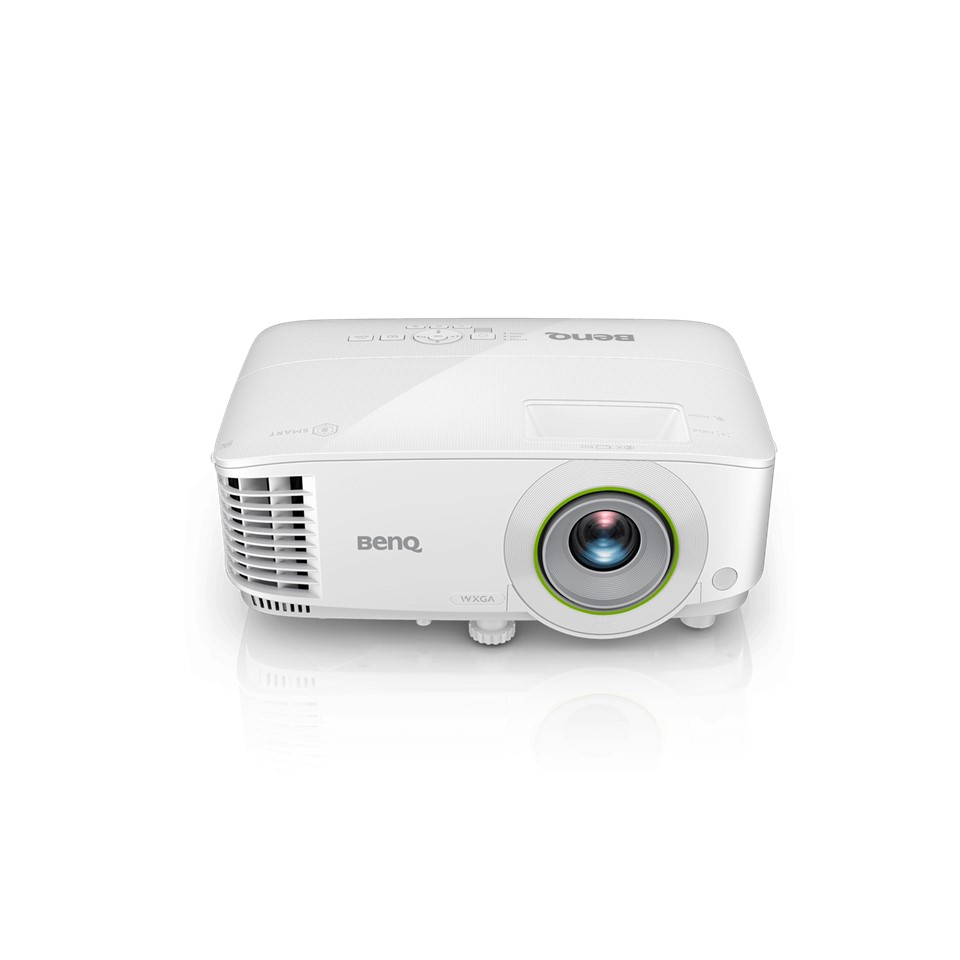

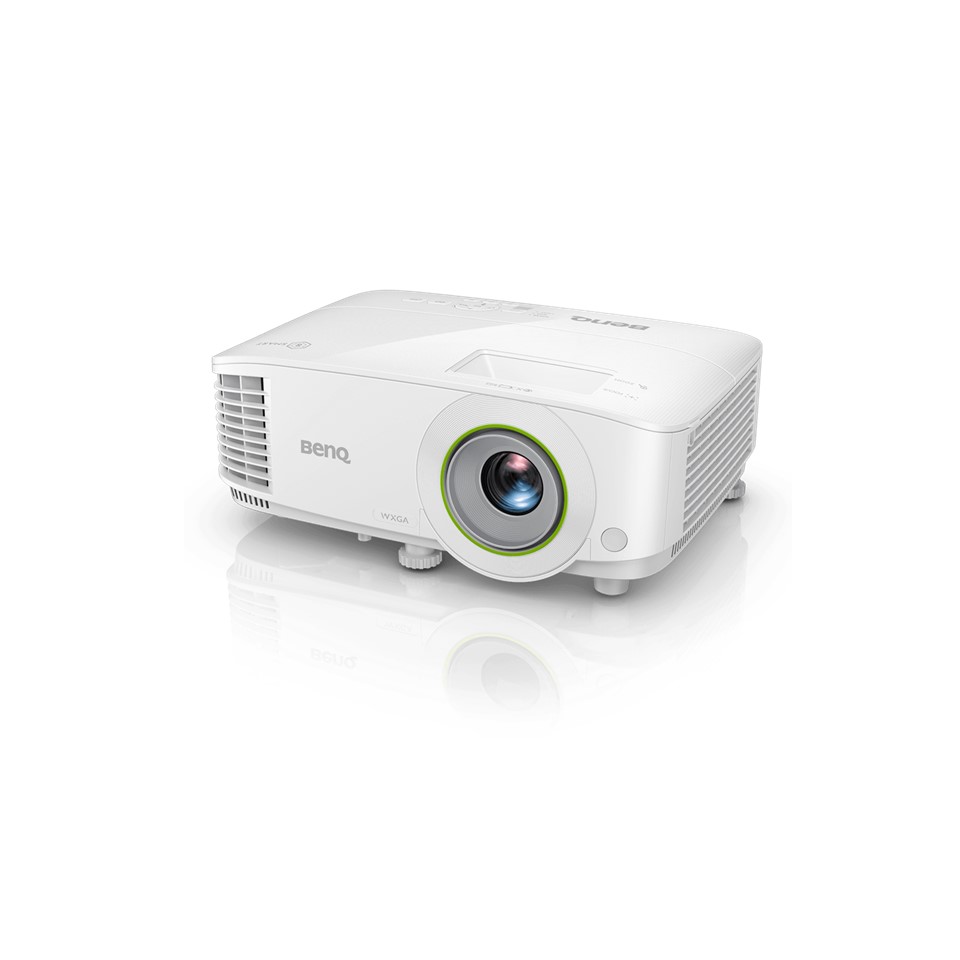

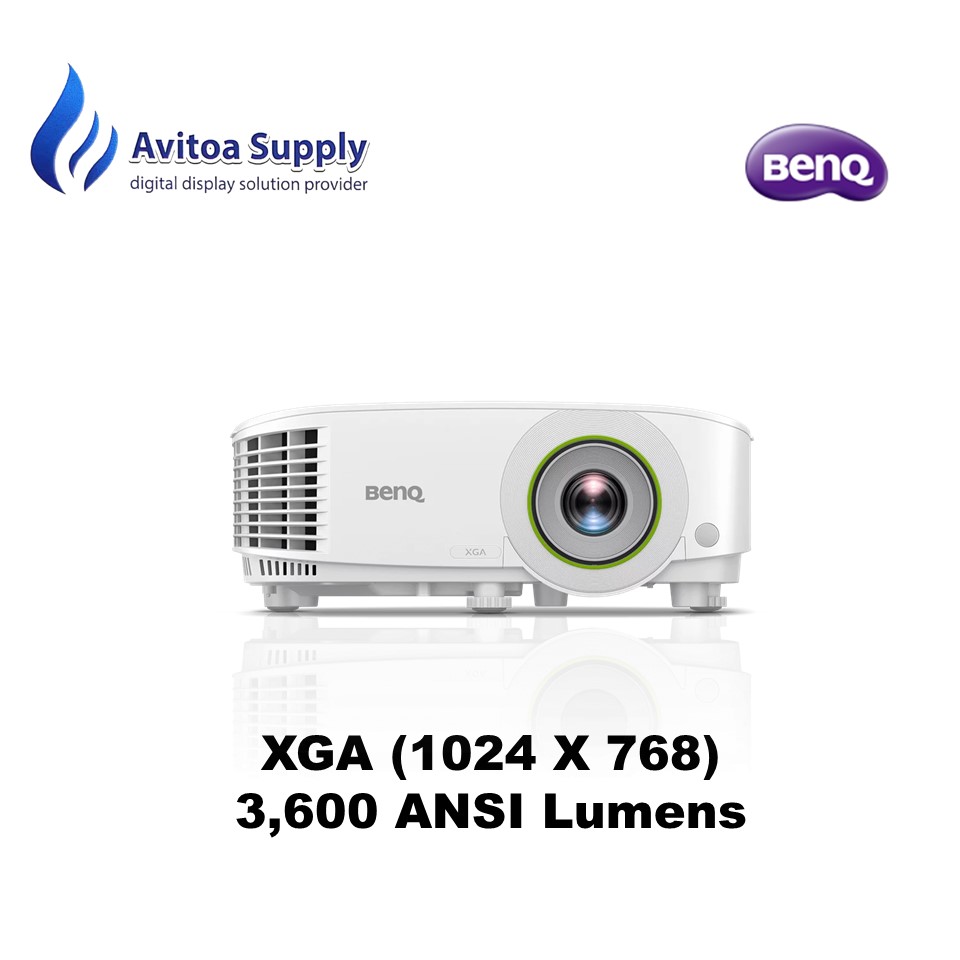

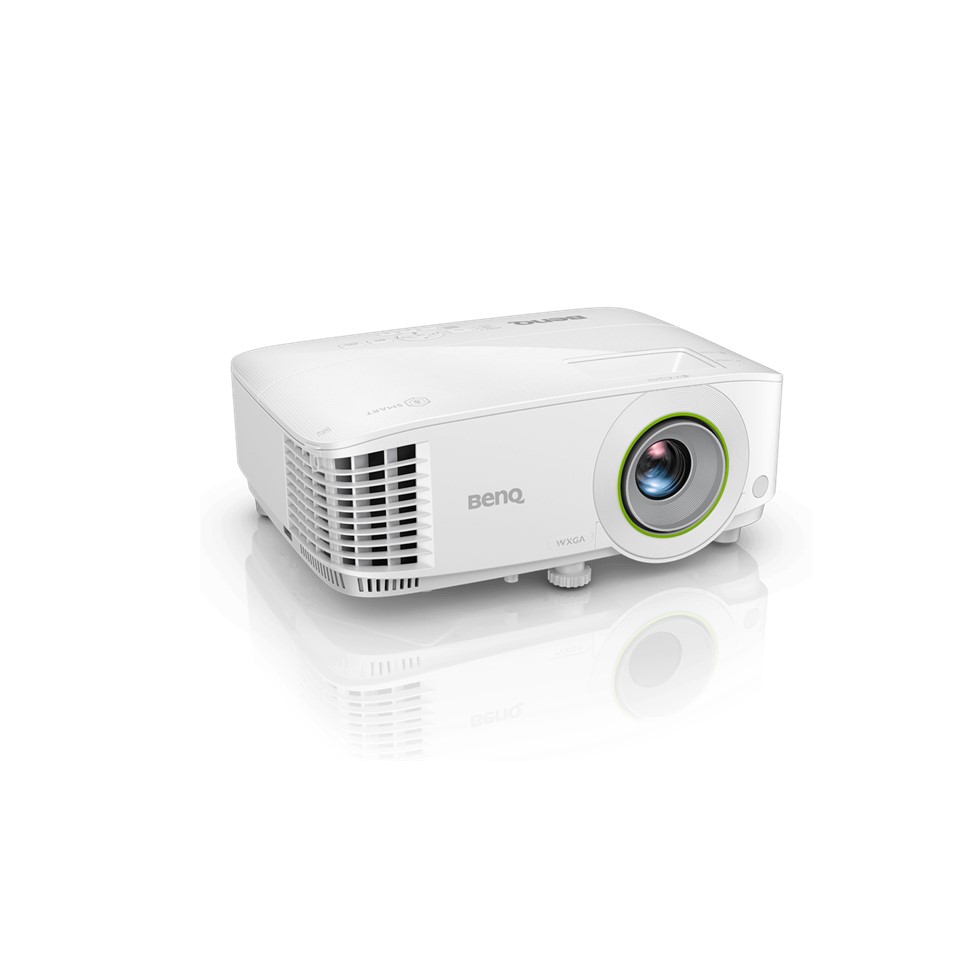

Wireless Android-based Smart Projector for Business | 3600lm, XGA
- Convenience made easier through wireless connections, built-in business apps, and over-the-air firmware updates.

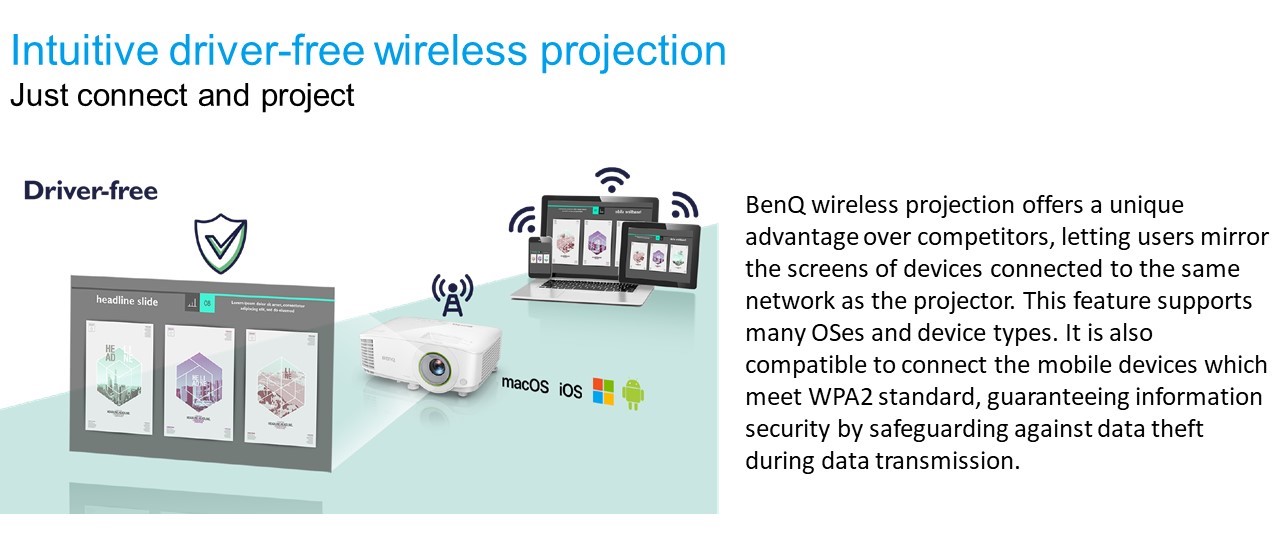

- Wireless projection & mirroring capabilities across various platforms (Mac/iOS, Android, or PC) for simple and easy presentations
- Wireless projector with internet connectivity and USB reading to easily show your ideas during huddle sessions
All Specifications
DisplayBrightness (ANSI lumens)3600
Native ResolutionXGA (1024x768)
Contrast Ratio (FOFO)20,000:1
Display Color30-bit (1.07 billion colors)
Light Source Lifea. Normal 5000 hrs, b. ECO 10000 hrs, c. SmartEco 15000 hrs, d. LampSave 15000 hrs
OpticalLensF/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height)110%
Keystone Adjustment1D, Vertical ± 40 degrees
PicturePicture Modes3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video
CompatibilityInput Lag33.4 ms (1080P 60Hz)
Resolution SupportVGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency15K~102KHz
Vertical Scan Rate23~120Hz

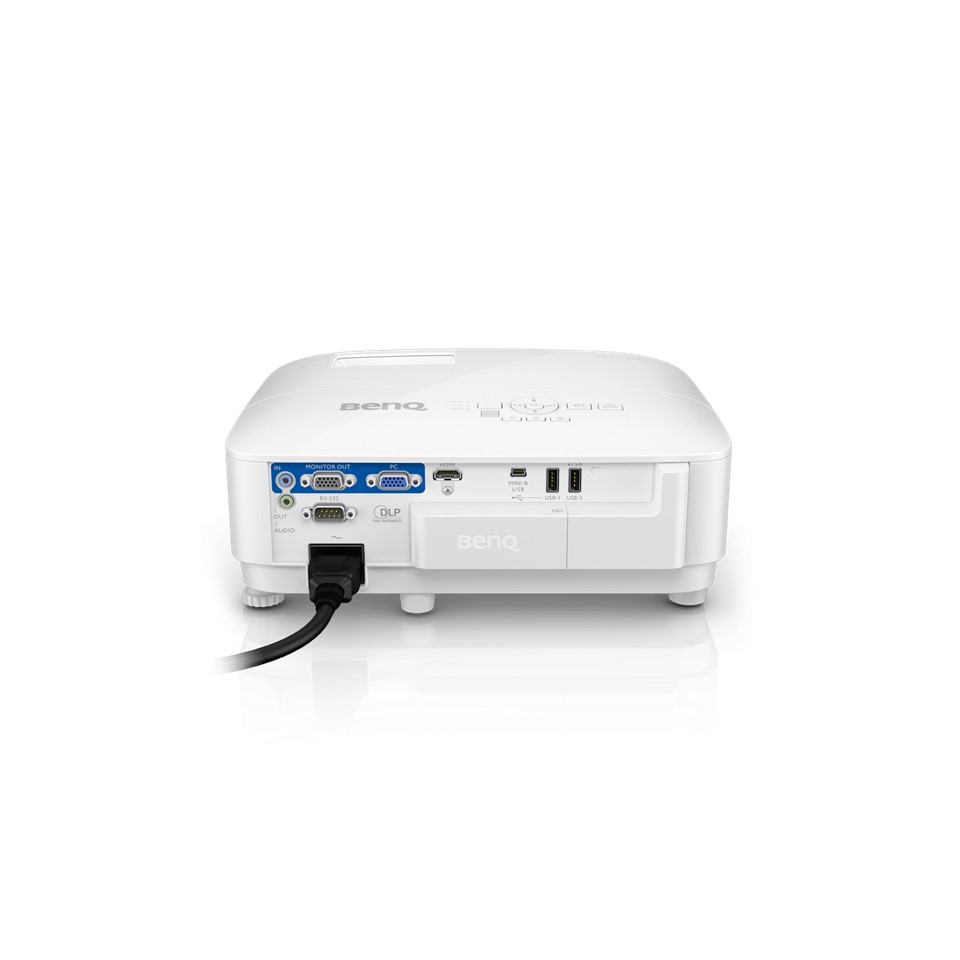

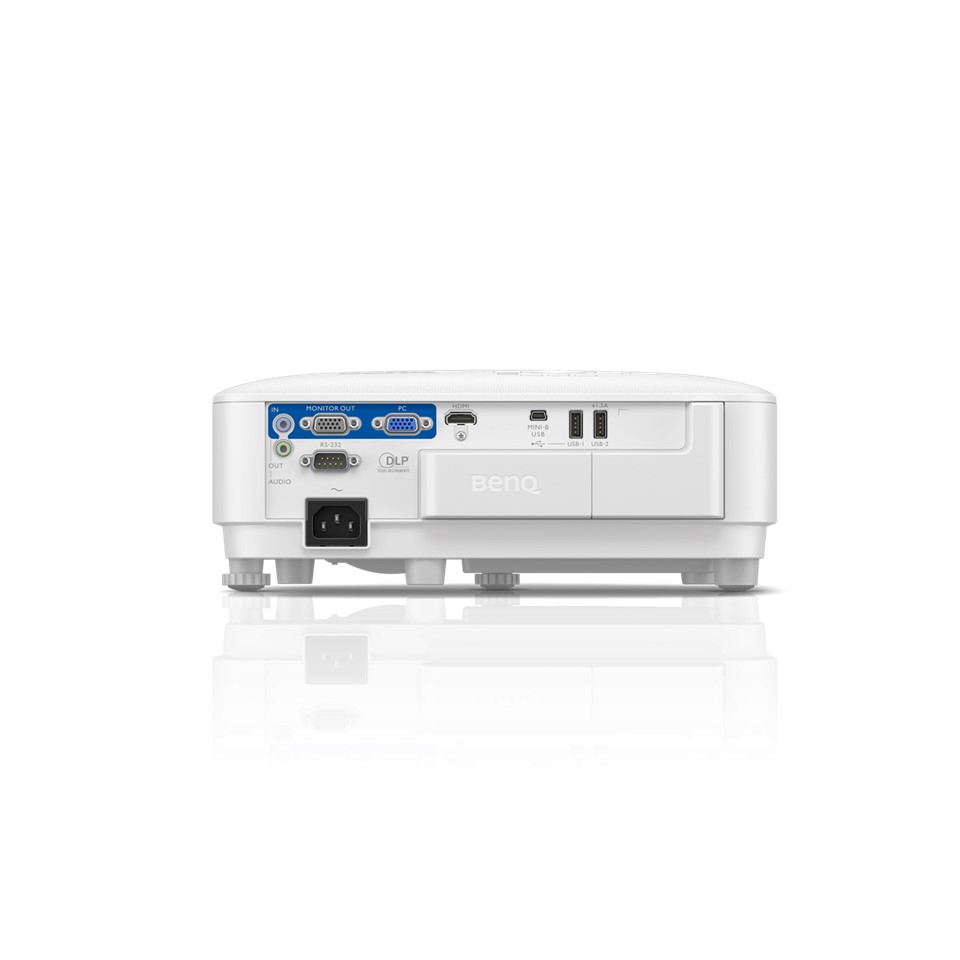

I/O InterfacePC in (D-sub 15pin)PC in-1 (shared with component video)
Monitor out (D-sub 15pin)(x1)
HDMI in(x1), HDMI-1 (1.4a/HDCP1.4)
USB Type A(x3), USB Type A-1 (2.0/Power Supply1.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader), USB Type A-3 (2.0/Wireless Dongle)
USB Type Mini B(x1), USB Type Mini B-1(service/Page up&down)
AudioAudio in (3.5mm Mini Jack)(x1)
Microphone in (Mini Jack)(x1)
EnvironmentOperating Temperature0~40℃
Power SupplyAC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)270W/110V
Stand-by Power Consumption<0.5W
Acoustic Noise (Typ./Eco.)(dB)33/29 dB
AccessoriesWireless USB dongleWDR02U
Carry Bag(optional),5J.J3T09.001
Remote Control w/ BatteryRCI023
Power Cord (by region)x1 (1.8M)
VGA(D-sub 15pin) Cable1 (1.5m)
3D Glasses(Optional), DGD5
Quick Start Guide(x1) 21L
Warranty Card (by region)Yes
Universal Ceiling Mount(Optional), CM00G3
Onscreen DisplaySmart SystemBuilt-in OSYes, Android 6.0
BluetoothYes, Bluetooth 4.0
Wi-Fi Standard802.11 a/b/g/n/ac (2.4G/5G)
Wireless ProjectionAirPlay, Google Cast
Dimension & WeightDimensions (WxHxD) (mm)296 x120 x232
Net Weight (kg)2.5 kg(5lbs)
Projection SystemDLP
