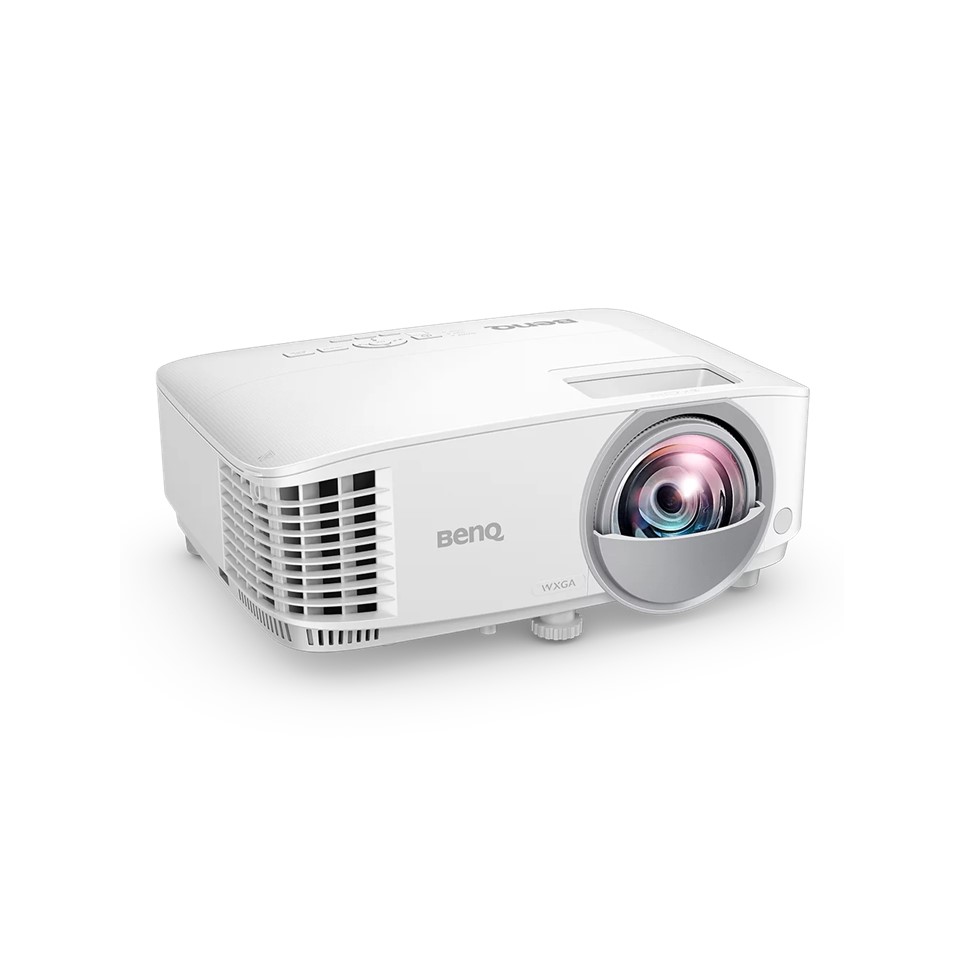

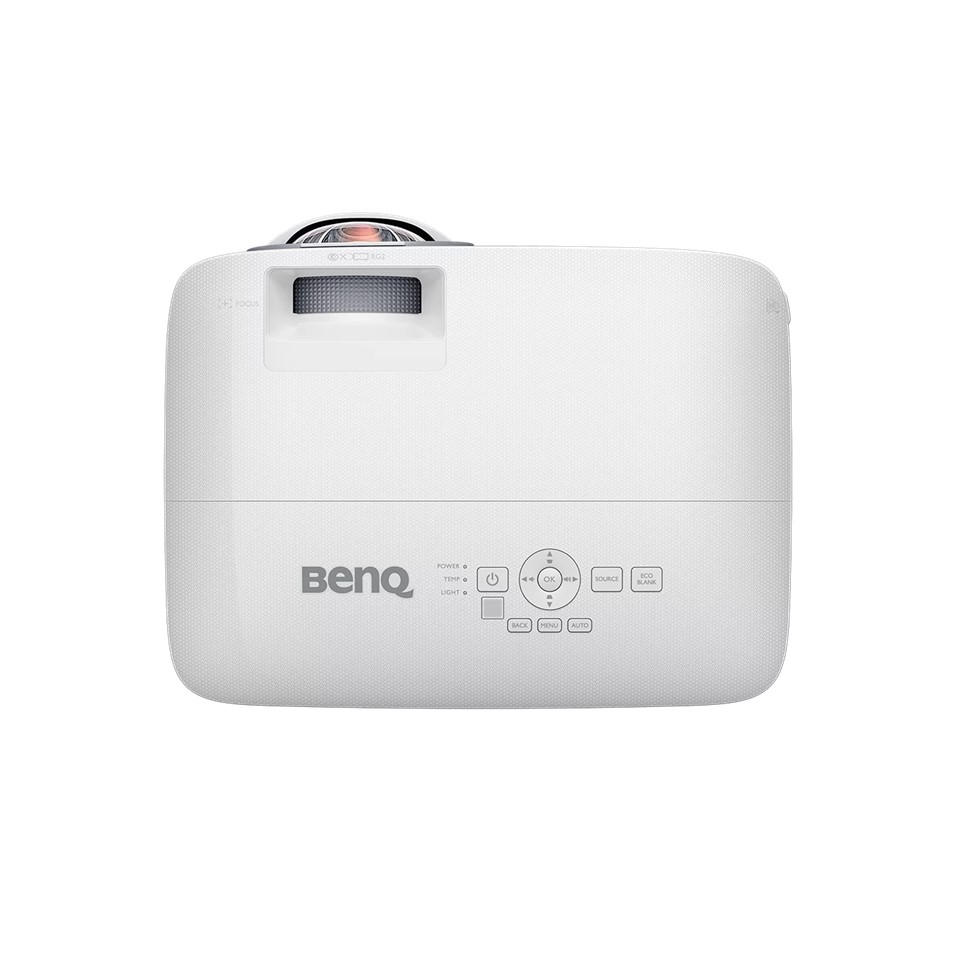

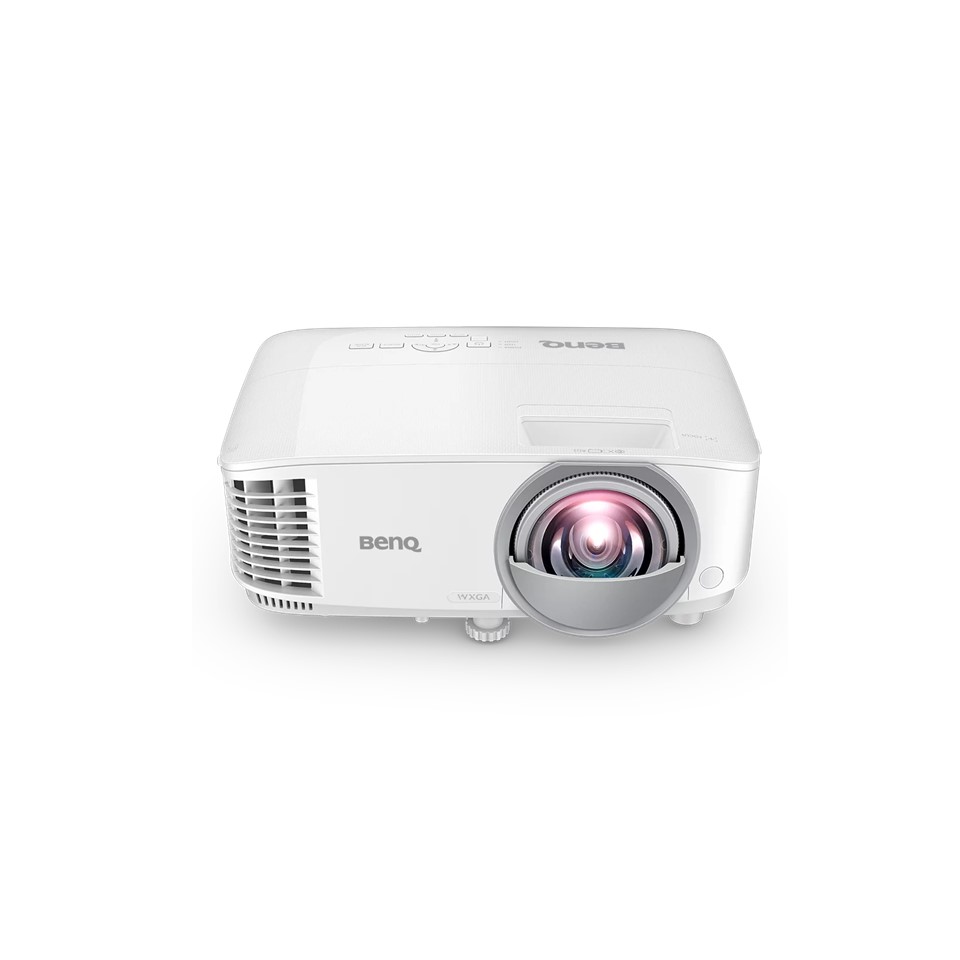

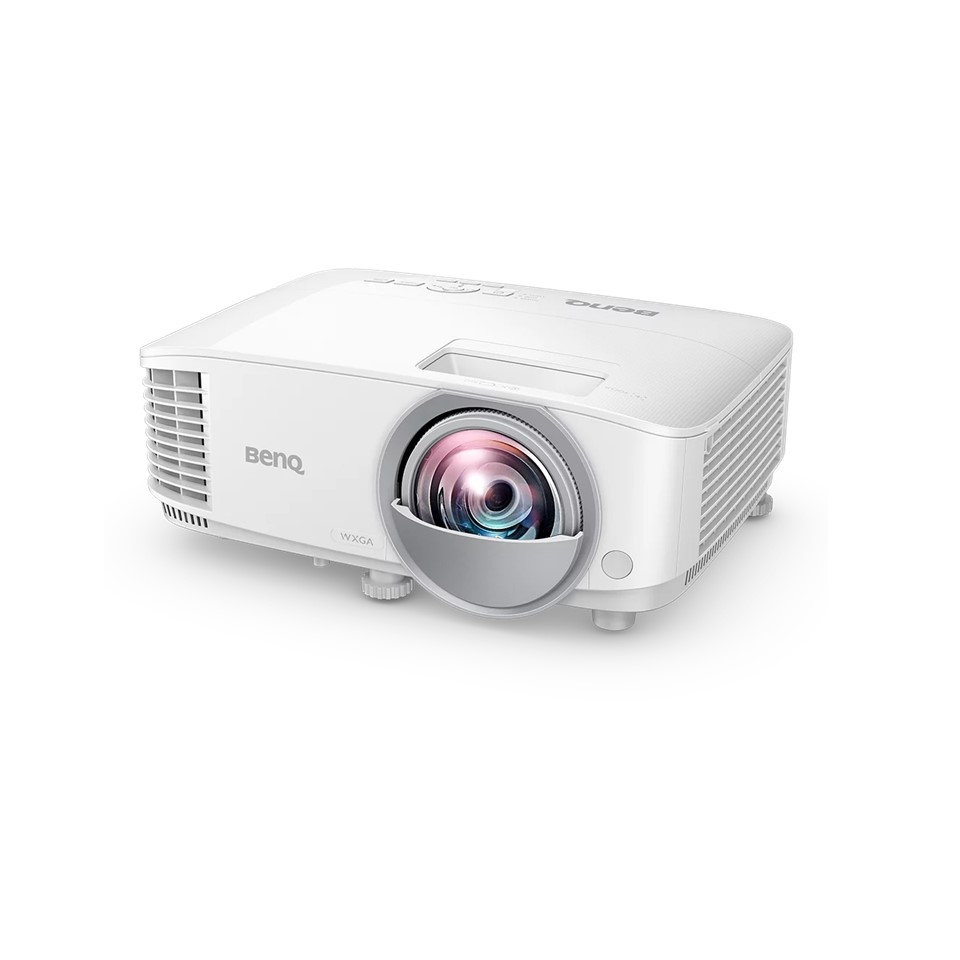

BenQ MW826STH | 3500AL WXGA Short Throw Network Business Projector

MYR3049.00

Brand: BenQ

  • Share

Get shipping estimates

Country
State
Shipping Method



 All Specifications

Display
Brightness (ANSI lumens)
3500
Native Resolution
WXGA (1280x800)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
20,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 6000 hrs, b. ECO 10000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs
Optical
Throw Ratio
0.49
Zoom Ratio
Fixed
Lens
F/# = 2.6,f = 6.9 mm
Projection Offset (Full-Height)
105%

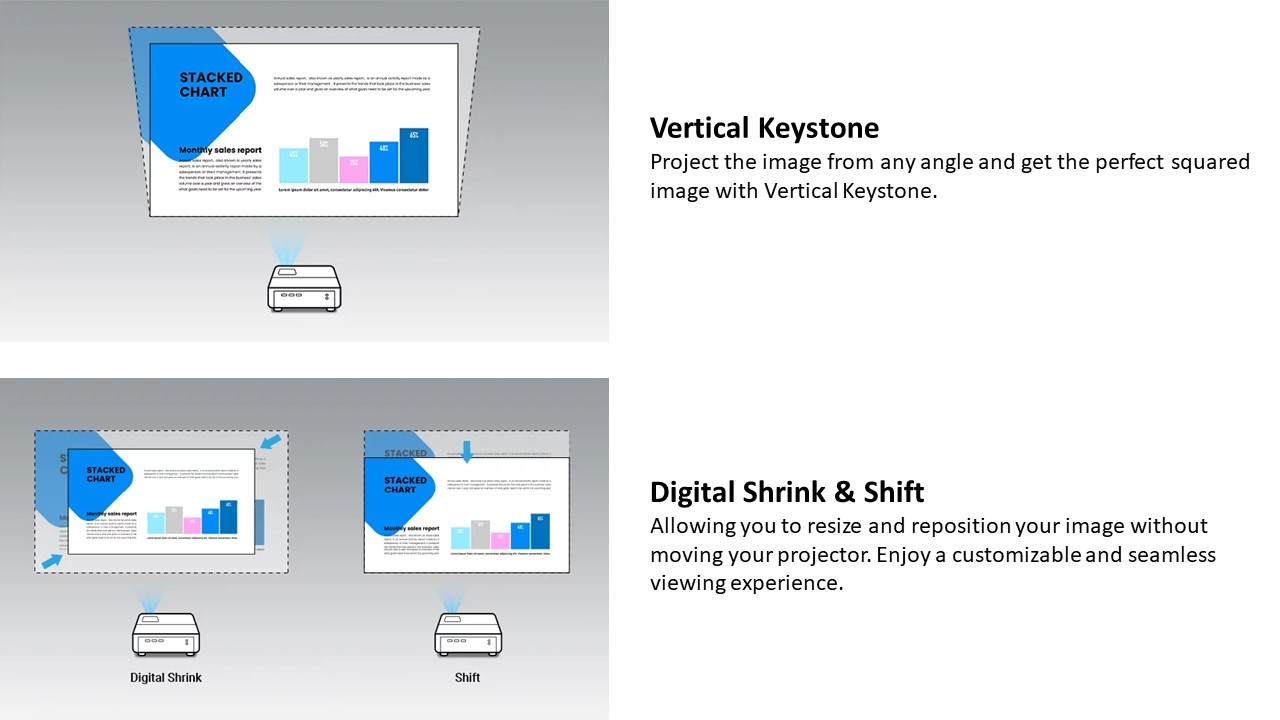

Keystone Adjustment
1D, Vertical ± 30 degrees
Picture Modes
3D, Bright, Cinema, Presentation, sRGB, User 1, User 2
Compatibility
Input Lag
34 ms (1080p@60Hz)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120KHz
I/O Interface
PC in (D-sub 15pin)
(x2)
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
S-Video in (Mini DIN 4pin)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL)
LAN (RJ45)
(x1)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B
(x1), USB Type Mini B-1(service/Page up&down)
RS232 in (DB-9pin)
(x1)
Audio
Speaker
(x1), 10W
Audio in (3.5mm Mini Jack)
(x2)
Audio out (3.5mm Mini Jack)
(x1)
Environment
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
260
Acoustic Noise (Typ./Eco.)(dB)
33/29
Accessories
Carry Bag
Yes,5J.J3T09.001 (optional)
Remote Control w/ Battery
RCE013
Power Cord (by region)
x1 (3.0M)
VGA(D-sub 15pin) Cable
1 (1.5m)
3D Glasses
(Optional), DGD5
Quick Start Guide
(x1) 18L
Warranty Card (by region)
Yes
Anti-dust Filter
(Optional), All SKU
Wall Mount
(Optional), WM06G3
Dimension & Weight
Dimensions (WxHxD) (mm)
296 x120 x239
Net Weight (kg)
2.6
Projection System
Projection System
DLP
Optical
Throw Ratio
0.49
Zoom Ratio
Fixed
Keystone Correction
1D, Vertical +/- 30 degrees

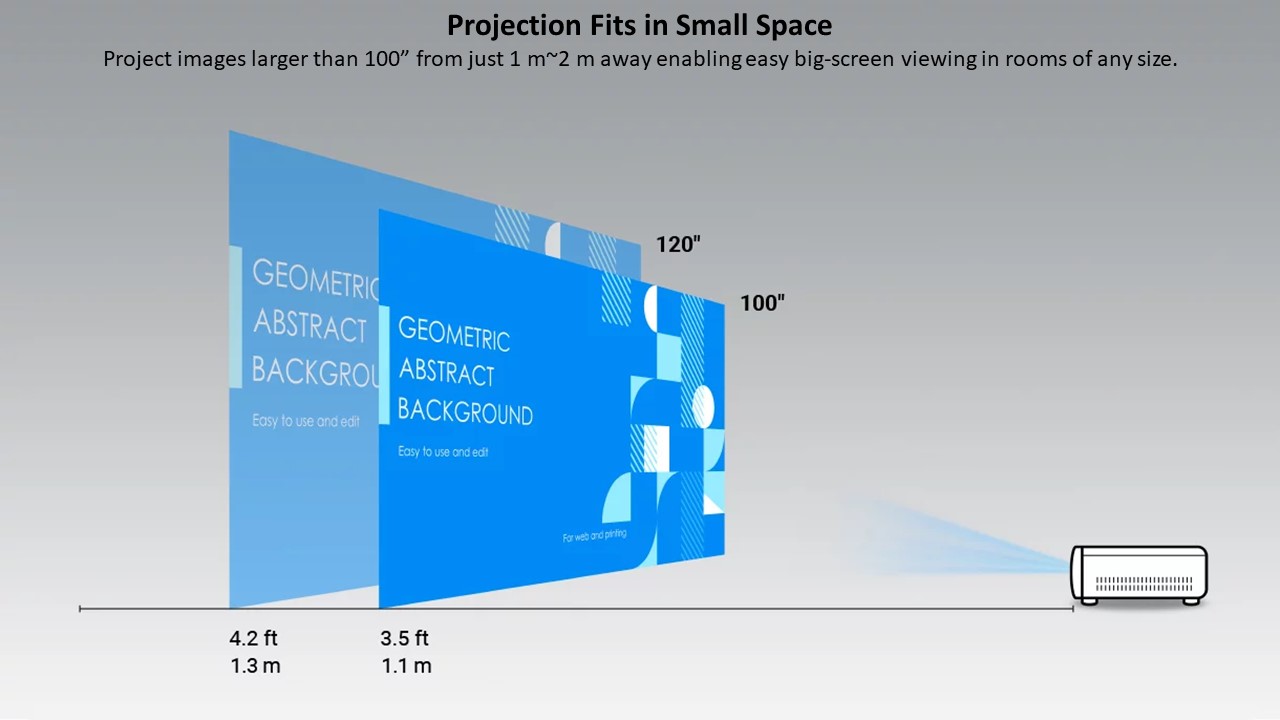

Projection Size
70"~120" / 120"
Projection Offset**
105%±2.5% (Full-Height)
Display
Projection System
DLP
DMD type
0.65" WXGA
Brightness
3500AL
Display Color
30 Bits/1.07 Billion Colors
Aspect Ratio
Native 16:10 (5 aspect ratio selectable)
Light Source
Lamp
Light Source Life*
6000/10000/10000/15000 hours
(Normal/Economic/SmartEco/LampSave)
Native Resolution
WXGA, 1280x800
Contrast Ratio
20,000:1
Audio
Built-in Speaker
10Wx1
Special Feature
Security
Security Bar, Kensington lock
Feature
SmartEco Power Saving Technology, 0.61 Short Throw Ratio, Designed for Education & IWB
Connectivity

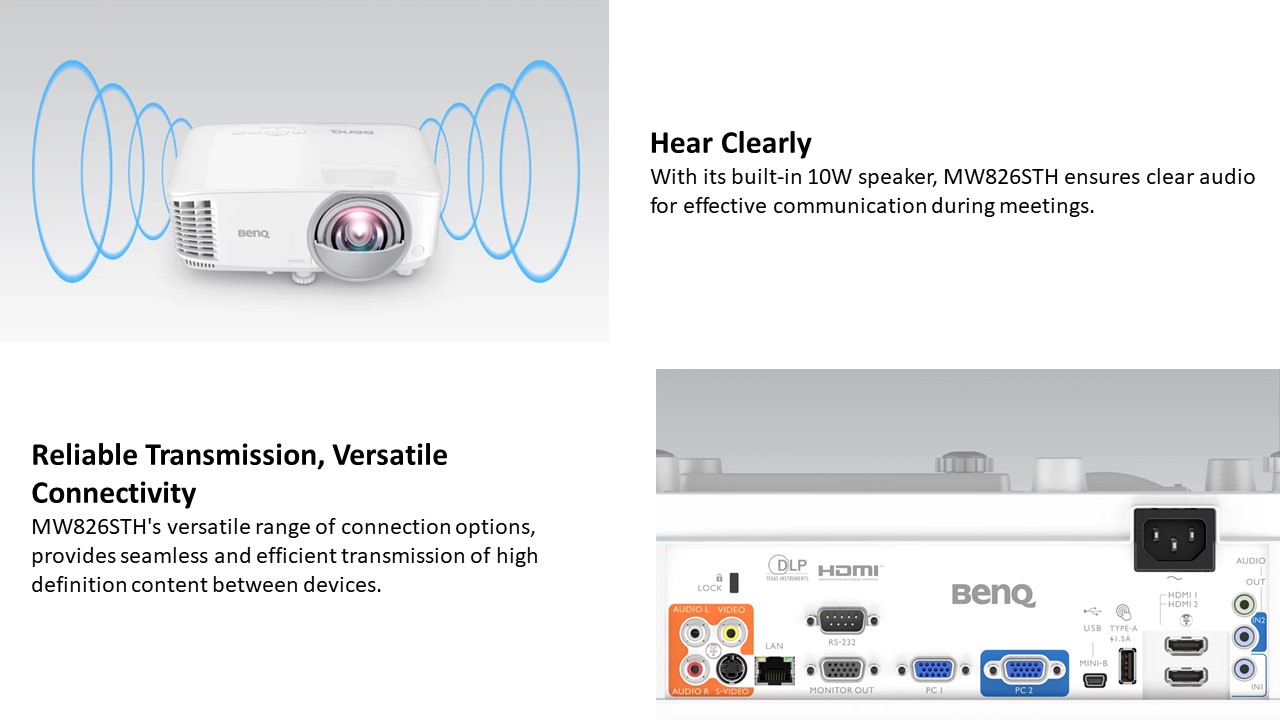

I/O Port
Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 2
Audio in (Mini Jack) x 2
Audio out (Mini Jack) x 1
Audio L/R in (RCA) x 1
Speaker 10W x 1
USB (Type A) x 1 (power only 5V/1.5A)
USB (Type Mini B) x 1 (Download & page/down)
RS232 (DB-9pin) x 1
LAN (RJ45) x 1
Compatibility
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200)
*RB-Reduced Blanking
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23Hz ~120Hz
HDTV Compatibility
480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility
Frame Sequential: Up to 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side Half: Up to 60Hz 1080p
Top Bottom: Up to 60Hz 1080p
Power
Power Consumption (Max/Normal/Eco)
Typical 260W
Standby Power Consumption
Standby<0.5W, Network standby<2W
Power Supply
AC 100 to 240 V, 50/60 Hz
Dimension and Weight
Product Dimensions (WxHxD)
296 (W)*239(D)*120(H) mm
Product Weight
2.6 Kg (5.7 lbs)
Operation Condition
Operating Temperature
0o ~ 40oC
Noise Level (Normal/Eco)
33/29 dBA (Normal/Economic mode)
Accessories
Accessories (Standard)
Remote Control w/ Battery RCE013 x 1
Power Cord (by region) x 1
Warranty card (by Region)
User Manual e-edition x 1
QSG x1
Accessories (Optional)
PointWrite PW02
FingerTouch PT12
Spare Lamp Kit
Wall Mount
Dust Filter
OSD
On Screen Display Language
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
