The EB-L12000Q offers an incredible resolution and a host of features that hugely benefit the rental and installation sector, such as backwards lens compatibility and swappable interface boards. It's a great addition to the line-up as it's designed to be used at events, festivals, visitor attractions, large auditoriums, trade shows and shopping centres, as well as for corporate and educational purposes.

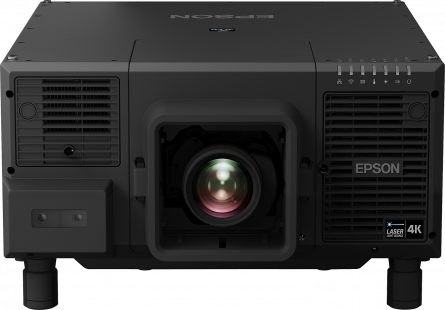

Enter the world of ultra-detailed projection with Epson's first native 4K projector, which works perfectly with existing Epson lenses. The EB-L12000Q includes a native 4K panel developed to offer 4K resolution, at 3840x2160 pixels, for projections of a higher quality than UHD.

Epson's highest resolution projector
The EB-L12000Q is the industry's first 12,000-lumen native 4K 3LCD projector¹. It's compatible with standard Epson 4K-compatible lenses, as used on the EB-L1000 series and EB-L20000U projectors.

Easy installation
It's light, compact and easy for a single person to transport and install. The EB-L12000Q offers 360-degree installation and can project from any angle, as well as in portrait mode. It can be used in conjunction with Epson’s Professional Projector Tool software to set up multiple-unit installations, and take advantage of advanced techniques such as edge blending and projection mapping.

Minimal maintenance
A five-year, 20,000-hour warranty, coupled with inbuilt self-recalibration, means these projectors can be installed and forgotten about. A built-in camera enables remote adjustment and troubleshooting.

Reliability
A steel chassis and sealed optical system protect against dust and smoke, making it suitable for the harshest environments and the toughest rental jobs. The EB-L12000Q can also be fitted with confidence in hard-to-access areas.

Tech Specs

Product features and specifications are subject to change without prior notice.

• Technology

  Projection System



  3LCD Technology

  LCD Panel



  1.03 inch with C2 Fine

• Image

  Color Light Output



  12,000 Lumen- 8,400 Lumen (economy) In accordance with ISO 21118:2013

  White Light Output



  12,000 Lumen - 8,400 Lumen (economy) In accordance with ISO 21118:2013

  Portrait Colour Light Output



  12,000 lm

  Portrait White Light Output



  12,000 lm

  Resolution



  Native 4K (3840x2160), 16:9

  High Definition



  Native 4K

  Aspect Ratio



  16:9

  Contrast Ratio



  2,500,000 : 1

  Native Contrast



  1,200 : 1

  Light source



  Laser

  Laser Light source



  20,000 hours Durability High, 30,000 hours Durability Eco

  Keystone Correction



  Manual vertical: ± 45 °, Manual horizontal ± 30 °

  Colour Reproduction



  Upto 1.07 billion colours

• Optical

  Throw Ratio



  1.52 - 2.47:1

  Zoom



  Motorized, Factor: 1 - 1.61

  Projection Lens Zoom Ratio



  1.52 - 2.56 : 1

  Lens



  Optical

  Lens Shift



  Motorized - Vertical ± 58 %, horizontal ± 16 %

  Lens position memory



  10 positions

  Screen Size



  60 inches - 1,000 inches

  Projection Distance Wide



  2 m - 34.2 m

  Projection Distance Tele



  3.2 m - 55.3 m

  Projection Distance Wide/Tele



  1.98 m - 55.28 m

  Projection Lens F Number



  1.8 - 2.3

  Projection Lens Focal Length



  36 mm - 57.3 mm

  Projection Lens Focus



  Motorized

  Interchangeable Lens



  Yes

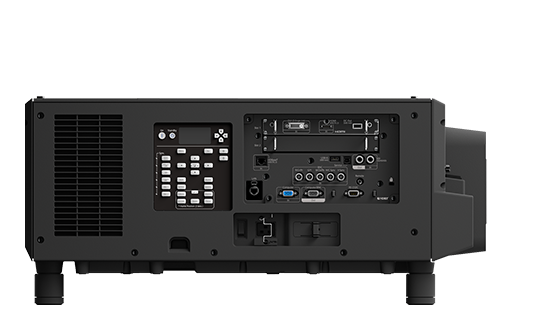

• Connectivity

  Interfaces



  HDBaseT, DVI in, VGA out, VGA in, Wired Network, RS-232C, USB 2.0 Type B (Service Only), Wireless LAN b/g/n (2.4GHz) (optional), HDMI (HDCP 2.2), DisplayPort (optional), 12G SDI Input, 12G SDI Output, 3G-SDI Input (4x), DC Power Output (900mA), 3G-SDI Output (4x), Ethercon LAN

  Epson iProjection App



  Ad-Hoc / Infrastructure

• Advanced Features

  Security



  Kensington lock, Security bar, Wireless LAN security, Password protection

  Other features



  Absolute Black, Auto Calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory

  Video Color Modes



  Cinema, Dynamic, Presentation, DICOM SIM, Multi Projection, BT709

  Projector control



  via: AMX, Crestron, Extron

• General

  Power consumption



  1,741 Watt, 1,030 Watt (economy), 0.5 Watt (standby), On mode power consumption as defined in JBMS-84 1,546 Watt

  Heat Dissipation



  5,919 BTU/hour (max)

  Supply Voltage



  AC 100 V - 240 V, 50 Hz - 60 Hz

  Product dimensions



  620‎ x 790 x 358 mm (Width x Depth x Height)

  Product weight



  51.4 kg

  Noise Level



  Normal: 45 dB (A) - Economy: 38 dB (A)

  Supported Temperature



  Storage -10° C - 60° C

  Supported Humidity



  Operation 20% - 80%, Storage 10% - 90%

  Included Software



  EasyMP Monitor, iProjection

  Options



  HDBaseT Transmitter, Wireless LAN unit

  What's in the box



  CD Manual, Cable cover, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries

  Room Type / Application



  Boardroom, Large Meeting Room / Auditorium, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction

  Positioning



  Ceiling Mounted, Flying Frame

  Colour



  Black
