Project bright, easy-to-read images from nearly anywhere in classrooms and offices with the versatile EB-L200X long-throw laser projector. A convenient, affordable projector for modern classrooms, the EB-L200X offers 4,200 lumens of brightness and is virtually maintenance-free with no lamps to replace for light source up to 20,000 hours. Designed with collaboration in mind, this flexible projector delivers colorful images with native XGA (4:3) resolution, and provides a variety of engaging features, including a powerful 16 W speaker and built-in wireless and Miracast® support for convenient content sharing from laptops and smart devices.

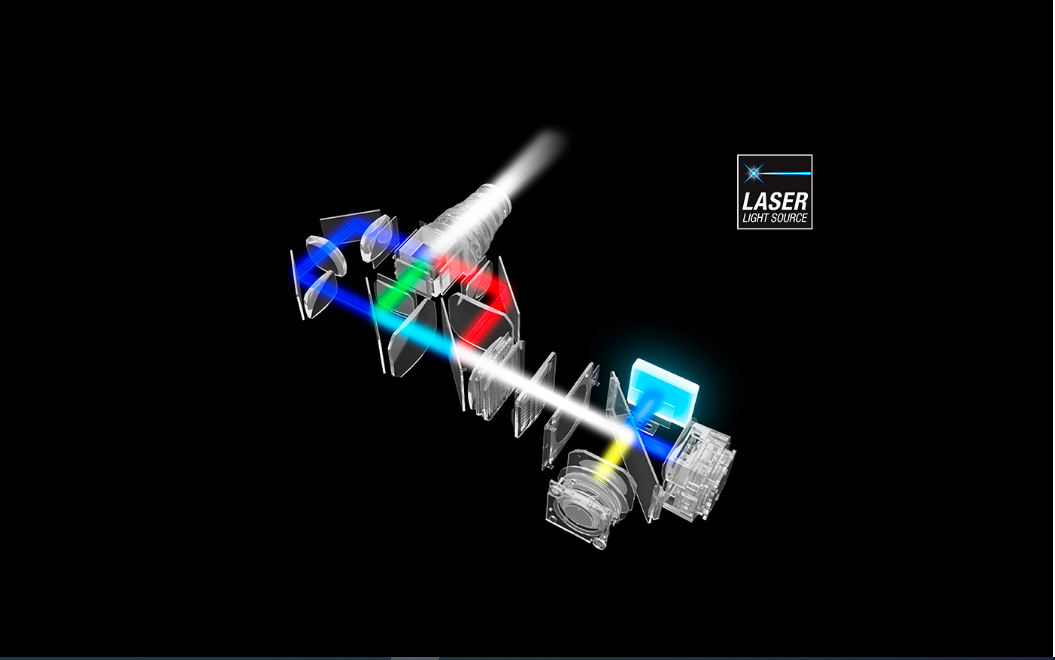

Using Epson’s very own original designed fixed phosphor unit, coupled with the innovative optimized design, the L200 series is now more compact yet producing bright and sharp images. Thanks to the new heatsink design, the L200 series has great heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.

Improve perceived image resolution with the detail enhancement function. Now, you can enjoy great image quality.

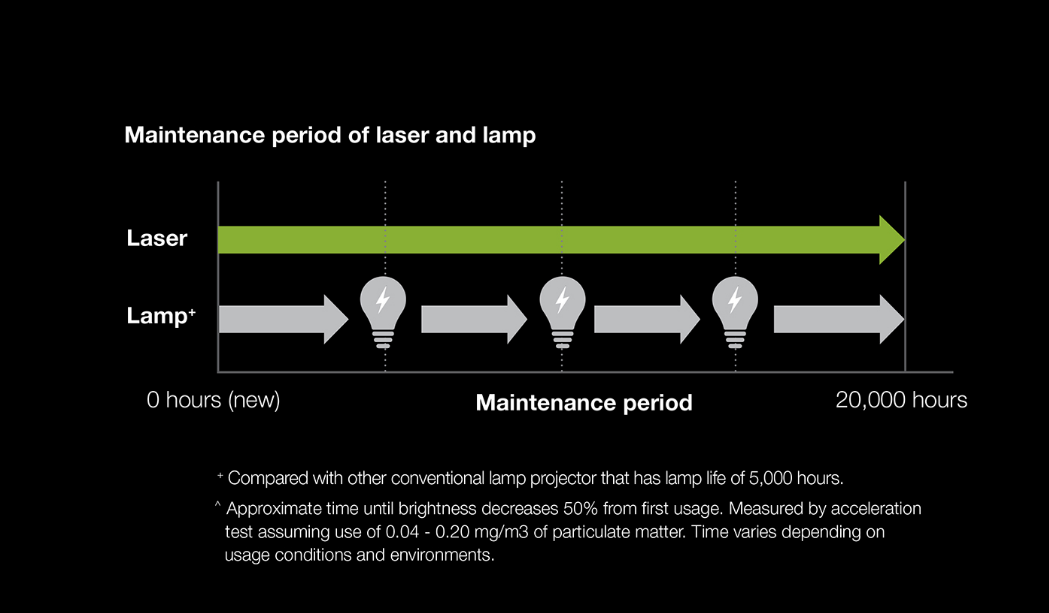

Epson’s unique laser technology sees the L200 series having 20,000 hours of maintenance-free laser light source. Users can share their content with confidence, thanks to the innovative fixed phosphor unit, giving your devices durability and long-lasting life.

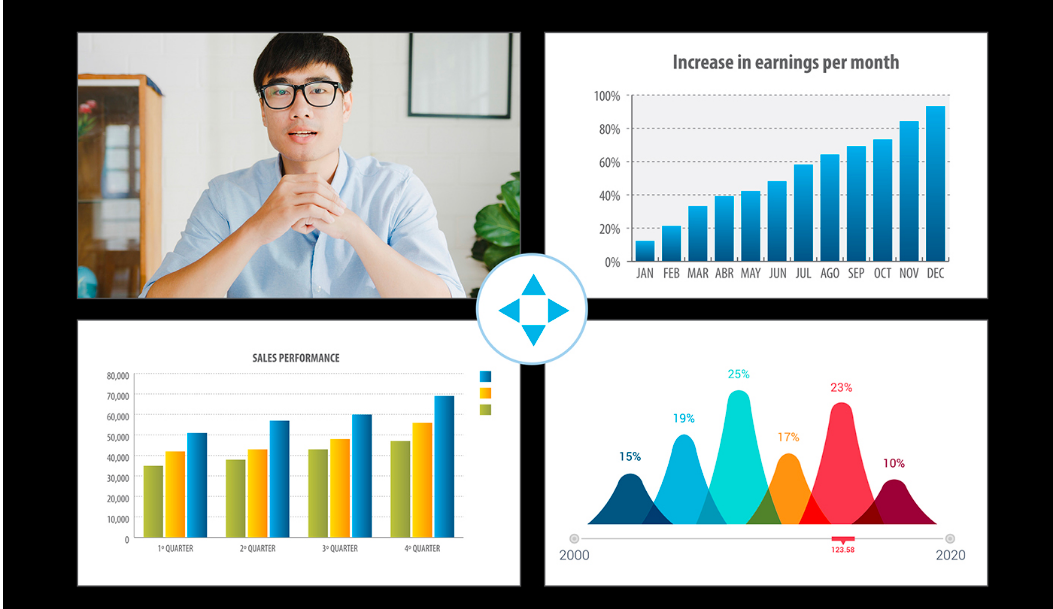

Split Screen Function

Power up efficiency in conferences by connecting up to four displays in one screen and accommodate great information sharing.





What's In The Box:

Power Cable: 1.8m x 1

HDMI Cable (1.8m)

Remote Control with 2x AA Battery



Specifications

Projection Technology:

---

Projection Technology:RGB liquid crystal shutter projection system

Brightness:

---

White Light Output (Normal / Eco):4,200lm / 2,940lmColour Light Output:4,200lm

Connectivity:

---

Network:Wireless:
Built-in x 1
Optional x 1 (using optional ELPAP11)
Wired Lan:
RJ45 x 1 (100Mbps)Analog Input:D-Sub 15Pin: 2 (RGB)
Composite RCA x 1 (Yellow)Digital Input:HDMI: 2 (HDCP 2.2)Analog Output Terminal:D-Sub 15Pin: 1 (Black)Audio Input:RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output:Stereo Mini Jack: 1Control I/O:RS-232C: D-Sub 9pin x 1Others:USB Type A: 1 (for Saving and Reading Data via USB, Firmware Update, Copy OSD Settings, Document Camera)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)
Mic I/O: Stereo Mini x 1

Contrast Ratio:

---

Contrast Ratio:Over 2,500,000 : 1

Screen Size (Projected Distance):

---

Standard Size:60” screen @ 169cmZoom : Wide:30” to 300” screen (83 – 854cm)

Geometric Correction:

---

Vertical/Horizontal Keystone:±30° / ±30°Quick Corner:Yes (Manual

Operating Temperature:

---

Single Use:0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No CondensationMulti-projection Use:0 - 2,286 m (0 - 7,500 ft): 0 °C - 35 °C [32 °F - 95 °F ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 - 30 °C [32 °F - 86 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

---

Operating Altitude:Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

---

Start-Up Period:Less than 8 seconds, Warm-up Period: 30 seconds
Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:

---

Cool Down Period:Instant Off

Internal Speaker(s):

---

Sound Output:16W Monoaural

Direct Power On/Off:

---

Direct Power On/Off:Yes

Weight:

---

Weight:Approx. 4.1kg

Air Filter:

---

Type:Electrostatic FilterMaintenance Cycle:20,000 hours*5

Fan Noise:

---

Fan Noise (Normal / Eco):36dB / 26dB

Dimension Excluding Feet:

---

Dimension Excluding Feet (D x W x H):299 x 325 x 90 mm

Optional Wireless & Built In Lan Specifications:

---

Supported Speed for each Mode:Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps*3, IEEE 802.11g (2.4GHz): 54Mbps*3 IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps*3, IEEE 802.11n (2.4GHz): 72.2Mbps*3, IEEE 802.11a (5GHz): 54Mbps*3, IEEE 802.11n (5GHz): 150Mbps*3, IEEE 802.11ac (5GHz): 325Mbps*3Wireless LAN Security:Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct): WPA2-PSK (AES)Supported Mode:Infrastructure, Access Point (Wi-Fi Direct)

Image:

---

Noise Reduction:YesSuper-Resolution:YesDetail Enhancement:Yes

Projectors Facets:

---

Resolution, Projectors Facets:XGAContrast Ratio, Projectors Facets:Over 2,500,000:1Brightness Range Lumens, Projectors Facets:4001Features, Projectors Facets:Wifi
Screen Mirroring
Quick CornerLaser / Lamp, Projectors Facets:Laser

Power Consumption (220-240V):

---

Lamp On (Normal/Eco):254W / 193WStandby:2.0W / 0.5W (Network On / Off)

Specifications of Main Parts:

---

LCD:Size: 0.63” (C2Fine)
Resolution: XGA (1024 x 768)Lightsource:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrsProjection Lens:Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51 – 1.99
Focal Length: 18.2 – 29.2mm
Zoom Ratio: 1.0 – 1.62 (Optical Zoom)

Throw Ratio: 1.38 – 2.24
