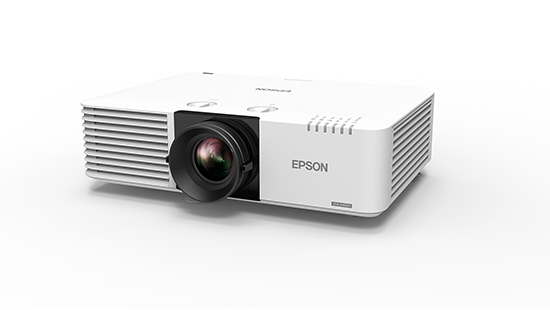

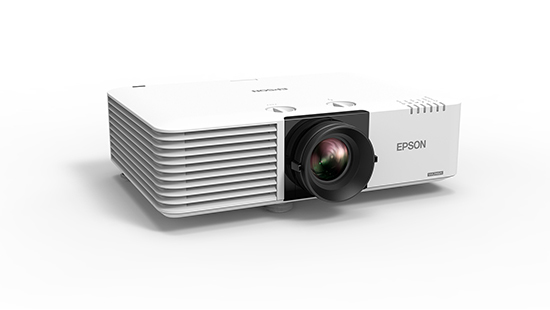

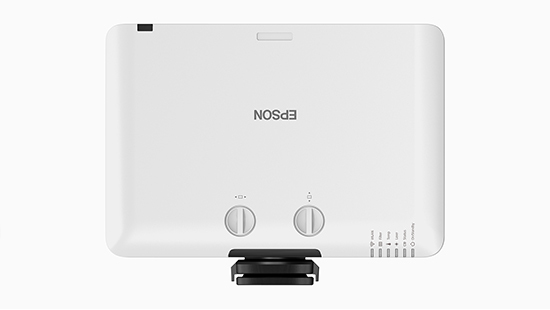

EPSON EB-L610W Laser Projector

MYR16000.00

Brand: EPSON

  • Share

Get shipping estimates

Country
State
Shipping Method








  1. Bright, vivid colour — 6,000 lumens colour/white brightness1.
  2. Colourful, widescreen images up to 500" — WXGA resolution (1280 x 800).
  3. Breakthrough laser technology — features a laser light source of up to 20,000 hours5; plus, Instant ON/OFF.
  4. Virtually maintenance-free operation — for the life of the optical engine6.
  5. Extraordinary sharpness and detail — up to 2,500,000:1 Dynamic contrast ratio.
  6. Flexible installation — up to ±50 percent vertical and ±20 percent horizontal manual lens shift.
  7. Advanced installation features — 360-degree flexibility and geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner® and more.

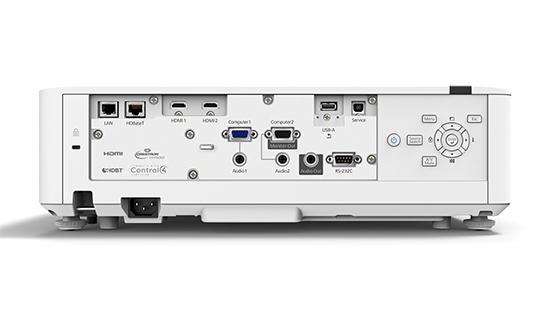

  8. Robust connectivity — supports HDBaseT™, 2x HDMI®, VGA, RJ-45, stereo mini and control management tools.
  9. Constant Brightness Mode8 — fine-tune the brightness setting to help maximise run time.
Better Products for a Better Future
For more information on Epson’s environmental programmes, visit http://global.epson.com/SR/environment



What's In The Box:

Power Cable: 3m only
Remote Control with 2 x AA Battery
Cable Cover
Quick Start Guide Printed
CD (PDF)
VGA Cable: 1.8m
Wireless LAN Unit Cover



Projection Technology:


Projection Technology:RGB liquid crystal shutter projection system

Brightness:


White Light Output (Normal / Extended):6,000lm / 4,200lm *1Colour Light Output:6,000lm *1

Connectivity:


Network:Wireless: ELPAP10 Optional
Wired Lan: RJ45 x 1Analog Input:D-Sub 15Pin: 2
HDMI: 2
HDbaseT: RJ45 x 1Output Terminal:D-Sub 15Pin: 1 Shared with Computer 2Audio Input:Stereo Mini Jack: 2Audio Output:Stereo Mini Jack: 1Control I/O:RS-232C: D-Sub 9pin x 1Others:USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update, Contents Playback, Copy OSD Settings)
USB Type B: 1 (for Mouse, K/B, Control, Firmware Update)

Contrast Ratio:


Contrast Ratio:Over 2,500,000:1

Screen Size (Projected Distance):


Zoom : Wide:50” - 500” [1.44 - 14.76 m]Zoom : Tele:50” - 500” [2.35 - 23.84 m]

Geometric Correction:


Vertical/Horizontal Keystone:±30° / ±30°Auto Keystone:YesQuick Corner:YesArc Correction:Yes

Operating Temperature:


Operating Temperature:0 - 45 °C <32 - 113 °F> (Below 1,500m / 4,921ft)
0 - 40 °C <32 - 104 °F> [Above 1,500m / 4,921ft - 3,048m / 10,000ft (with high altitude mode)]
(20% - 80% humidity, no condensation)

Operating Altitude:


Operating Altitude:0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Start-Up Period:


Start-Up Period:Less than 7 seconds, Warm-up Period: 30 seconds
Quick Start: Less than 5 seconds (display)

Cool Down Period:


Cool Down Period:Instant Off

Internal Speaker(s):


Sound Output:10W Monaural

Direct Power On/Off:


Direct Power On/Off:Yes

Weight:


Weight:Approx. 8.5kg

Air Filter:


Type:High Efficiency FilterMaintenance Cycle*4:(Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hours

Fan Noise:


Fan Noise (Normal / Eco):38dB / 27dB

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H):304 x 440 x 120 mm

Wireless Specifications (Wireless LAN):


Supported Speed:IEEE 802.11b (2.4GHz): 11 Mbps3
IEEE 802.11g (2.4GHz): 54 Mbps3
IEEE 802.11n (2.4GHz): 130 Mbps3Supported Security Type:Quick Mode: Open, WPA2-PSK
Advanced Mode: Open, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode:Infrastructure, Access Point

Power:


Power Consumption:(Normal / Quiet / Extended): 322W / 244W / 244WPower Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):


Laser Diode:(Normal / Quiet / Extended): 353W / 265W / 265WStandby:(Network / Energy Saving): 2.0W / 0.3W

Wireless Specifications (Screen Mirroring):


Supported Speed:IEEE 802.11n (5GHz): 270 Mbps*2

Specifications of Main Parts:


LCD:Size: 0.67” (D10 C2fine)
Native Resolution: WXGA (1280 x 800)Lightsource:Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hoursProjection Lens:Lens Shift, Type: Manual
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.5 - 1.7
Focal Length: 20.0 - 31.8mm
Zoom Ratio: 1-1.6
Throw Ratio: 1.35 - 2.20 (Wide to Tele)
Vertical (Up/Down): -50%
Horizontal (Left/Right): -20%

Projectors Facets:


Resolution, Projectors Facets:WXGAContrast Ratio, Projectors Facets:Over 2,500,000:1Brightness Range Lumens, Projectors Facets:4001Laser / Lamp, Projectors Facets:LaserFeatures, Projectors Facets:Wifi
Quick Corner
