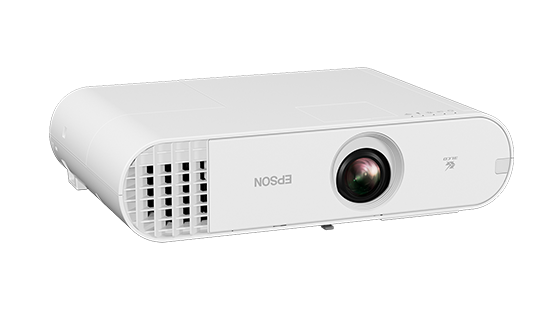

EPSON EB-U50 Digital Signage Projector

MYR5099.00

Brand: EPSON

  • Share

Get shipping estimates

Country
State
Shipping Method

Cost-saving & Affordable
Keeping costs low with 10,000* maintenance free hours in normal mode and 17,000* hours in ECO mode.

Built to Please - Endless Possibilities
Combining illumination with projection, the Epson EB-U50 projector turns any surfaces into customisable digital advertising spaces, enticing your customers into a new retail world. Giving you the freedom to create animated displays, providing a deeper story to your audience, and ultimately enticing them to make the purchase.

Flexible installation options
The EB-U50 projector offers a variety of flexible installation options. It can be mounted directly onto the ceiling, or conveniently on a tabletop. For ceiling projection, the projector enables you to project from any angle through 360° horizontal and 30° vertical.

Advance networking security
Utilising enterprise-level security connectivity via wireless networking, the Epson EB-U50 projector safeguards the simultaneous content sharing experience, making it the perfect choice for sharing confidential contents during meetings.

What's In The Box:

Power Cable
VGA Cable
Interface Cover
Remote control with 2AA Battery
User’s Manual CDROM
Quick Start Guide





Projection Technology:


Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Brightness:


White Light Output (Normal / Extended):3,700 lm*1Colour Light Output:3,700 lm*1Contrast Ratio:16,000:1

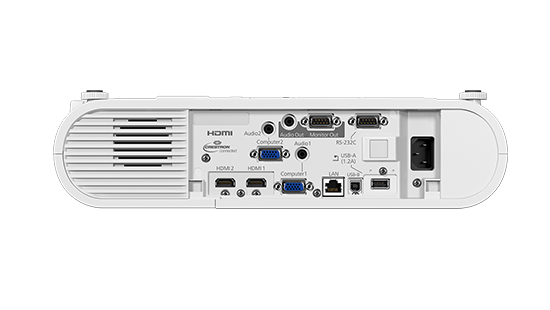

Connectivity:


Analog Input:D-Sub 15Pin: 2Digital Input:HDMI: 2Output Terminal:D-Sub 15Pin: 1Audio Input:Stereo Mini Jack: 2Audio Output:Stereo Mini Jack: 1

Projection Lens:


Type:Optical Zoom (Manual) / Focus (Manual)Focal Length:20.42 - 24.50 mmZoom Ratio:1 – 1.2F-number:1.50 – 1.71Throw Ratio Range:1.38 - 1.68 (Wide to Tele)

Wireless Specifications:


Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*2
IEEE 802.11g (2.4GHz): 54 Mbps*2
IEEE 802.11n (2.4GHz): 130.0 Mbps*2Wireless LAN Security:Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP

Screen Size (Projected Distance):


Standard Size:Tele: 30" to 300" [0.87 to 9.02 m]
Wide: 30" to 300" [1.07 to 10.98 m]

Geometric Correction:


Vertical/Horizontal Keystone:±30° / ±30° (Auto Vertical Keystone only)Quick Corner:Yes

Operating Temperature:


Operating Temperature:5 - 40 °C <41 - 104 °F
[When environment temperature becomes high, the brightness becomes dark automatically]

Operating Altitude:


Operating Altitude:0 - 3,048 m <0 - 10,000 ft> (over 1,500m / 4,921ft : with high altitude mode)

Cool Down Period:


Cool Down Period:Instant Off

Direct Power On/Off:


Direct Power On/Off:Yes

Weight:


Weight:Approx. 3.1 kg (Including Standard Lens)

Air Filter:


Type:High Efficiency FilterMaintenance Cycle:10,000 / 20,000 hours*3

Fan Noise:


Normal / Quiet:37dB / 28dB

Power:


Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Others:


USB Type A:1 (for USB Memory, USB Document Camera, Wirelss LAN unit, Firmware Update)USB Type B:1 (for USB Display, Control, Firmware Update)

Control I/O:


RS-232C:D-Sub 9pin x 1

Network:


Wireless LAN:RJ45 x 1Wireless:Built-In

Start Up Period:


Start Up Period:Up to 6 seconds, Warm-up Period: 30 seconds

Power Consumption (220-240V):


Lamp (Normal / Extended):285W / 218WStandby:2.0W / 0.3 W

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H):248 x 364 x 87 mm

Projectors Facets:


Resolution, Projectors Facets:WUXGAContrast Ratio, Projectors Facets:16,000:1Brightness Range Lumens, Projectors Facets:2000Laser / Lamp, Projectors Facets:LampFeatures, Projectors Facets:Wifi
Quick Corner

Specifications of Main Parts:


LCD:Size: 0.67”
Native Resolution: WUXGA (1920 x 1200)Lightsource:Type: 200W UHE
Life (Normal / Eco): 10,000 / 17,000 hoursAspect Ratio:16:10
