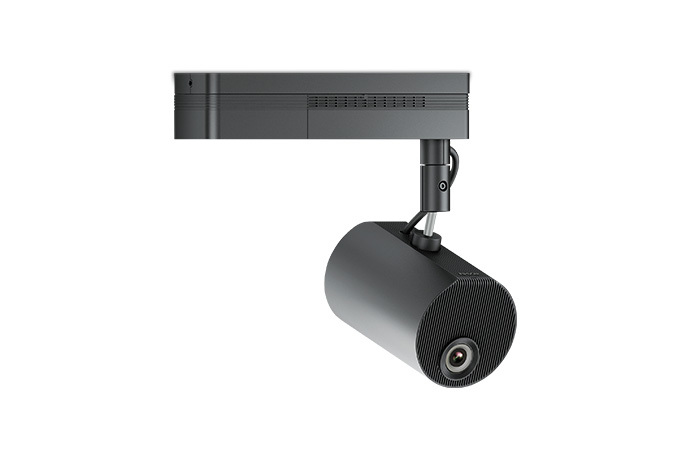

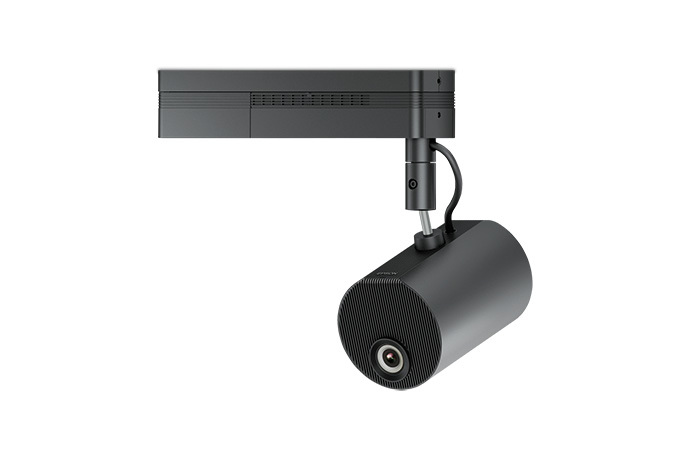

EPSON EV-105 Lighting Projector

MYR10500.00

Brand: EPSON

  • Share

Get shipping estimates

Country
State
Shipping Method







Integrated lighting and digital display — project dynamic, experiential content to engage audiences in retail, hospitality and event spaces, showrooms and museums

Create head-turning digital signage — illuminate and project on virtually any surface or material, for digital art, commercial signage and décor applications

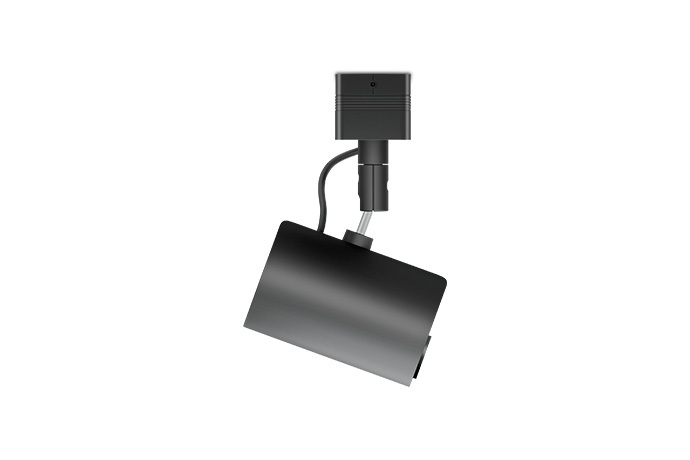

Blends in discreetly — sleek, black spotlight design easily blends into its surroundings, offering vertical and horizontal rotation, with flexible mounting on tracks, floors, walls or ceilings

Breakthrough laser technology — provides up to 20,000 hours of virtually maintenance-free operation1, plus a sealed optical engine, for amazing image quality matched by outstanding performance

Robust management and control tools — via Epson’s Web-based application or over the network with Crestron®, Art-Net and more

Scalable, for an array of applications — install multiple LightScene projectors and utilize Edge Blending technology for versatile, breathtaking displays

Easily programmable — includes templates, effects, color filters and customizable options; playlist and playback function allows for seamless content management for single or multiple LightScene projectors

Flexible positioning — 1.58x powered optical zoom, plus powered focus, allows the projector to be installed in both large and small spaces

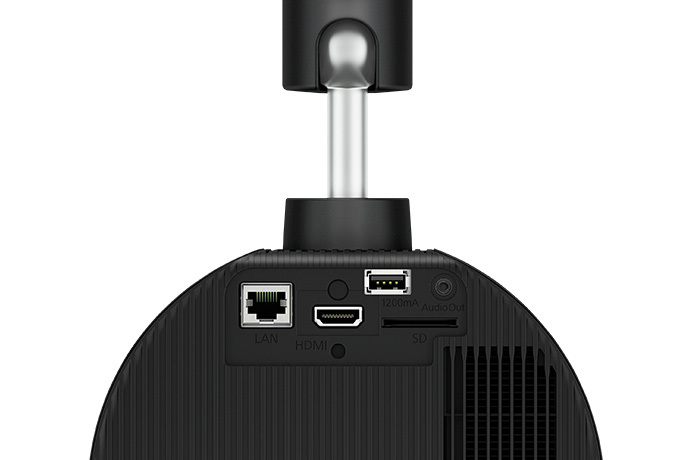

Expansive connectivity — HDMI®, wired and wireless LAN, and SD card slot2 for direct content storage when needed

Bright visual display system — 2,000 lumens equal color and white brightness for vibrant, rich color3

Eco Features
  • RoHS compliant
  • Recyclable product

Better Products for a Better FutureTM
For more information on Epson's environmental programmes, visit http://global.epson.com/SR/environment.



Projection Technology:


Projection Technology:RGB liquid crystal shutter projection system

Projectors Facets:


Resolution, Projectors Facets:WXGAContrast Ratio, Projectors Facets:Over 2,500,000:1Brightness Range Lumens, Projectors Facets:2000Laser / Lamp, Projectors Facets:LaserFeatures, Projectors Facets:Wifi
Edge Blending
Quick Corner

Connectivity:


Network:Wired LAN: RJ45 x 1 (100Mbps)
Wireless: Built-inMemory I/O:SD Card: 1 (SDHC, up to 32GB, more than Class 10)Digital Input:HDMI: 1Audio Output:Stereo Mini Jack: 1USB Input:USB Type A: 1 (For 1200mA power supply)
USB Type B: 1 (For firmware update)

Wireless Specifications:


Supported Speed for Each Mode:IEEE 802.11b (2.4GHz): 11 Mbps*
IEEE 802.11g (2.4GHz): 54 Mbps*
IEEE 802.11n (2.4GHz): 130 Mbps*Wireless LAN Security:Quick Mode: WPA2-PSK
Advanced Mode: WPA/WPA2-PSK, WPA/WPA2-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode:Infrastructure, Access Point

Geometric Correction:


Vertical/Horizontal Keystone:±45° / ±40°Quick Corner:Yes

Operating Temperature:


Operating Temperature:5 °C to 40 °C (41 °F to 104 °F)
(20% - 80% humidity, No condensation)

Operating Altitude:


Operating Altitude:0 m to 3048 m (0 ft to 10000 ft)
(over 1500 m / 4921 ft : with High altitude mode)

Start-Up Period:


Start-Up Period:Less than 9 seconds
Warm-up period: 30 seconds

Cool Down Period:


Cool Down Period:Instant off

Direct Power On/Off:


Direct Power On/Off:Yes / Yes

Dimension Excluding Feet (W x H x D):


Dimension Excluding Feet (W x H x D):Projection unit: Φ 175 x D260
Power supply unit: 361 x 65 x 110 mm (without Cable Cover)

Weight:


Weight:Approx. 15.2 lbs. / 6.9kg (Main Unit and Direct Mount unit)

Fan Noise:


Fan Noise (Normal / Eco):34 / 22 dB

Power Consumption (220 - 240V):


Stand By (Network On / Off):2.0W / 0.30WLaser diode on (normal / quiet):170W / 118W

Brightness:


White Light Output (Normal / Quiet / extended):2000lm / 1000lm / 1000lmColour Light Output:2000lmContrast Ratio:Over 2,500,000:1Colour Mode:Dynamic
Normal

Specifications of Main Parts:


LCD:Size: 0.59 inch (D8, C2 fine)
Native resolution: WXGAProjection Lens:Type: Optical Zoom (Powered) / Focus (Powered)
F-number: 1.51-1.92
Focal Length: 18.2mm-28.4mm
Zoom Ratio: 1 - 2.21 (Total)
Zoom Ratio: 1 - 1.58 (Optical Zoom)
Zoom Ratio: 1 - 1.40 (Digital Zoom)
Throw Ratio: 1.38 - 2.19 (Wide to Tele)
Type: Laser Diode
Life (normal/quiet/extended): 20000hrs / 20000hrs / 30000hrsScreen Size (projected distance):30" to 150" (0.88 to 4.51 m) (Wide Zoom)
30" to 150" (1.41 to 7.16 m) (Tele Zoom)
60" screen 1.79m (Standard size)

Power Supply Voltage:


Power Supply Voltage:100 - 240 V AC +/- 10%, 50/60 Hz

Contents Player:


Playlist:YesTimetable (scheduled playlist):YesSD viewer:YesPlaylist Contents:Motion JPEG Movie (AVI), and Photo (JPEG, PNG, GIF, BMP)

Options:


Options:(Floor Stand) White: ELPMB55W
(Floor Stand) Black: ELPMB55B
