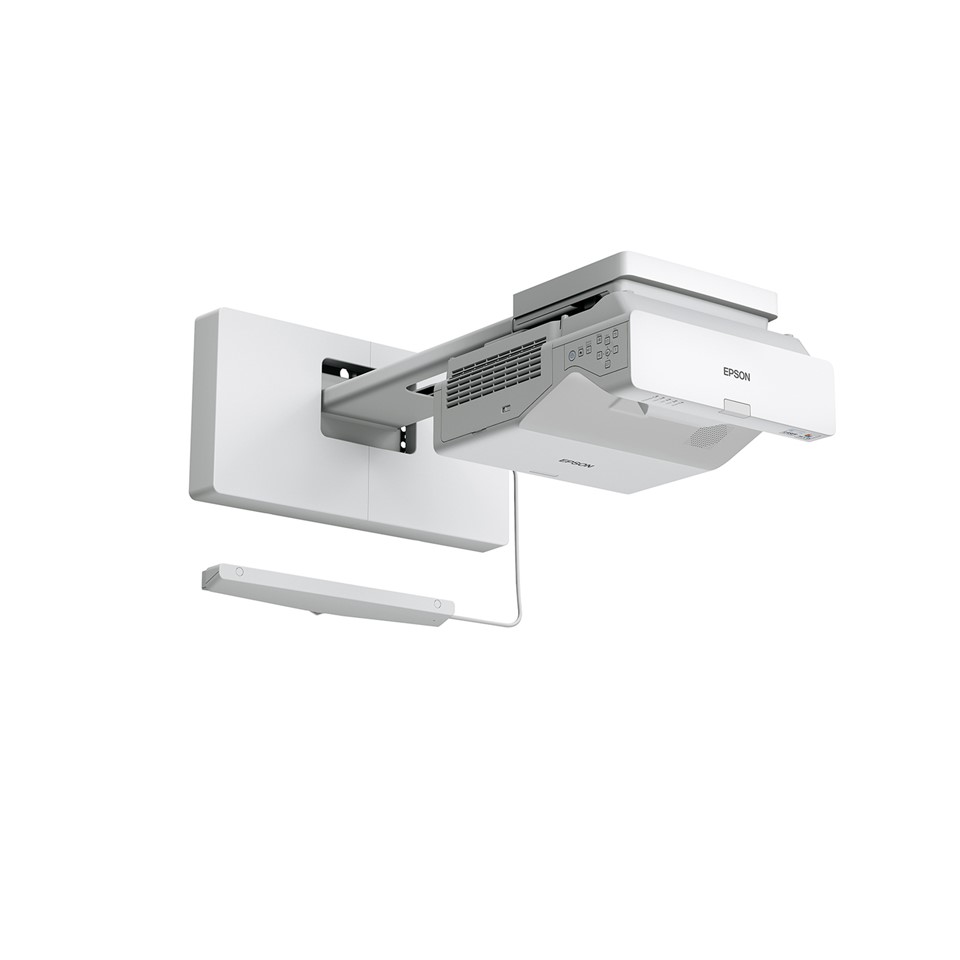

Lamp-free interactive display projects easy-to-read images for collaborative classrooms

Offering a high-quality 16:10 WXGA display up to 100", the EB-760Wi interactive display delivers easy-to-read images that provides up to 85 percent more interactive space than a 75" flat panel—for a low cost per square inch. With 4,100 lumens of color and white brightness and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever.

=        4,100 lumens of colour and white brightness

=        Large interactive display up to 100"

=        Multi-user capability for easy collaboration

=      16:10 WXGA resolution for true-to-life images

Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system (3LCD)

Brightness:

White Light Output (Normal / Extended):

4,100lm / 2,800lm

Colour Light Output:

4,100lm

Contrast Ratio:

Over 5,000,000 : 1

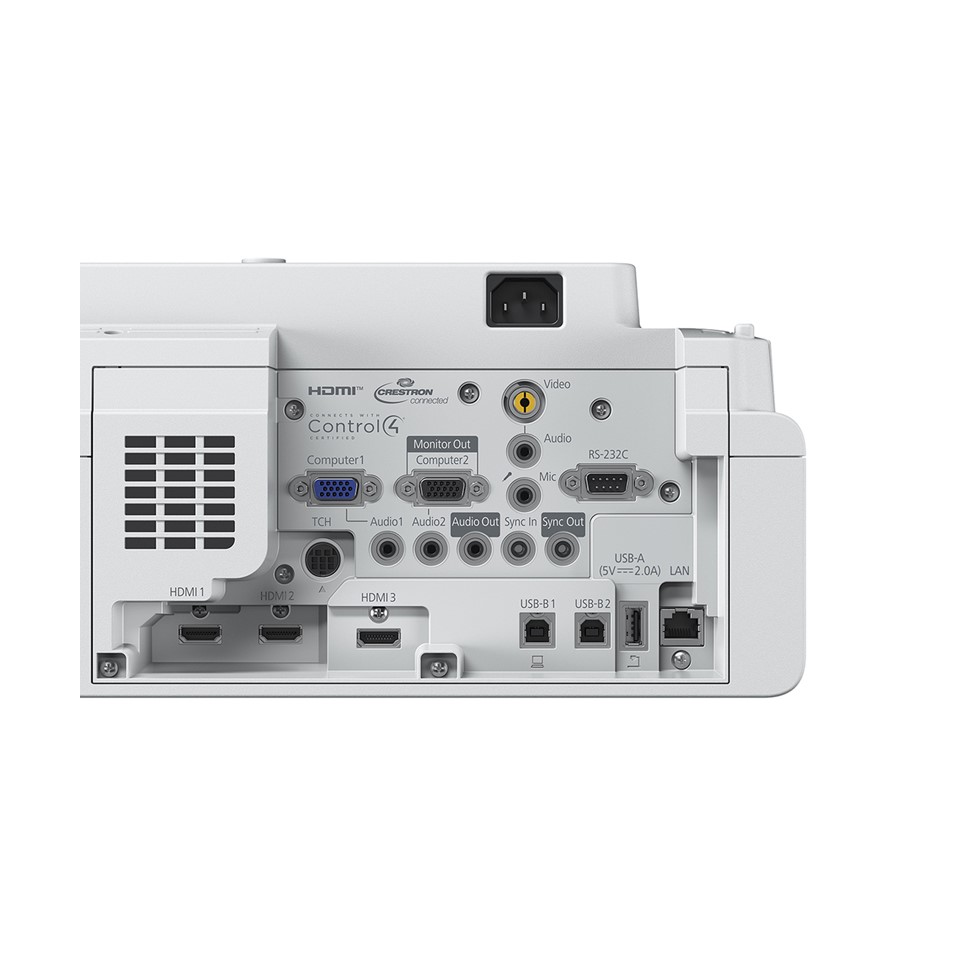

Connectivity:

Analog Input:

Computer In: 2

Composite: 1

Digital Input:

HDMI In: 3 (HDCP 2.3)

Analog Output:

Computer Out: 1 (Share with Computer)

Audio Input:

Audio In: 3 (Stereo Mini)

Audio Output:

Audio Out: 1 (Stereo Mini)

Mic I/O:

Mic In: 1 (Stereo Mini)

Control I/O:

RS232C: 1 (D-sub 9pin)

Interactive Sync: 1 (Stereo Mini)

Finger Touch Unit Control: 1 (Mini DIN 8pin)

USB I/O

Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)

Type B: 2 (For FW Update, Copy OSD Settings, USB Display)

Network I/O:

Wired LAN: 1 (RJ45)

Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:

Vertical/Horizontal Keystone:

±3° / ±3°

Quick Corner:

Yes (Auto / Manual)

Operating Temperature:

Operating Temperature:

0 - 2,286 m (0 - 7,500 ft): 0 °C - 40 °C [32 °F - 104 °F ] ; 20% to 80% Humidity, No Condensation

Over 2,286 m (7,500 ft): 0 - 35 °C [32 °F - 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:

Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period:

Less than 10 seconds (Epson Logo)

Quick Start-Up:

Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period:

Instant Off

Internal Speaker(s):

Sound Output:

16W Mono

Weight:

Weight:

Approx. 6kg

Air Filter:

Type:

Electrostatic Filter

Maintenance Cycle (Normal / Extended):

12,000 hours / 20,000 hours

Fan Noise:

Fan Noise (Normal / Eco):

37dB / 27dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):

395 x 356 x 133

Image:

Noise Reduction:

Yes

Super-Resolution:

Yes

Detail Enhancement:

Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Speed for Each mode:

Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps, IEEE 802.11g (2.4GHz): 54Mbps IEEE 802.11n (2.4GHz): 72.2Mbps,

IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps

Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps, IEEE 802.11n (2.4GHz): 72.2Mbps,

IEEE 802.11a (5GHz): 54Mbps, IEEE 802.11n (5GHz): 150Mbps, IEEE 802.11ac (5GHz): 325Mbps

Supported Mode :

Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security

Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP

Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;

Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:

Power Supply Voltage:

100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):

Lamp (Normal / Extended):

263W / 199W

Standby:

(Network On / Off): 2.0W / 0.5W

Direct Power On / Off:

Direct Power On / Off:

Yes

Specifications of Main Parts:

LCD:

Size: 0.59” (C2Fine)

Resolution: WXGA

Lightsource:

Type: Laser Diode

Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Projection Lens:

Type: No Optical Zoom / Focus (Manual)

F-Number: 1.60

Focal Length: 3.7mm

Zoom Ratio: 1 – 1.35 (Digital Zoom)

Throw Ratio: 0.27 – 0.37

Screen Size (projected distance):

Standard: 74.3” screen 43.3cm

Zoom (Wide):

53” to 132” (33.7 – 92.8 cm) @ 4:3

58” to 146” (33.7 – 92.8cm) @ 16:9

60” to 150” (33.7 – 92.8cm) @ 16:10

Zoom (Wide): (With Interactive Function)

52.6” to 100” (33.7 – 60.1 cm) @ 16:9

57.9” to 100” (33.7 – 68.7cm) @ 16:10

59.5” to 100” (33.7 – 61.9cm) @ 4:3
