Lamp-free laser display for the classroom projects easy-to-read images up to 120"

Change the way you think about classroom displays with the EB-L210SW. Delivering 4,000 lumens of color and white brightness1 and high-quality WXGA resolution at up to 120" diagonal size—more than three times larger than a 75" flat panel—this short throw lamp-free laser display brings stunning clarity to presentations and encourages engagement with large, bright and easy-to-read images from nearly anywhere in the classroom. Engineered for reliability, this display has a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to replace—ever. Sharing your lesson plans just got easier with wireless connectivity from PCs, Mac® computers, Chromebooks, and Android™ and iOS® devices, as well as split screen functionality to display up to four devices simultaneously. You can project brilliant images, inspire collaboration and enjoy ease of use with the EB-L210SW—all at a remarkable value.

=        4,000 lumens of colour and white brightness

=        WXGA resolution for images up to 120"

=        20,000-hour lamp-free laser light source

=        Images more than three times larger than a 75" flat panel

=        Instant-on laser light source

Specifications

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system

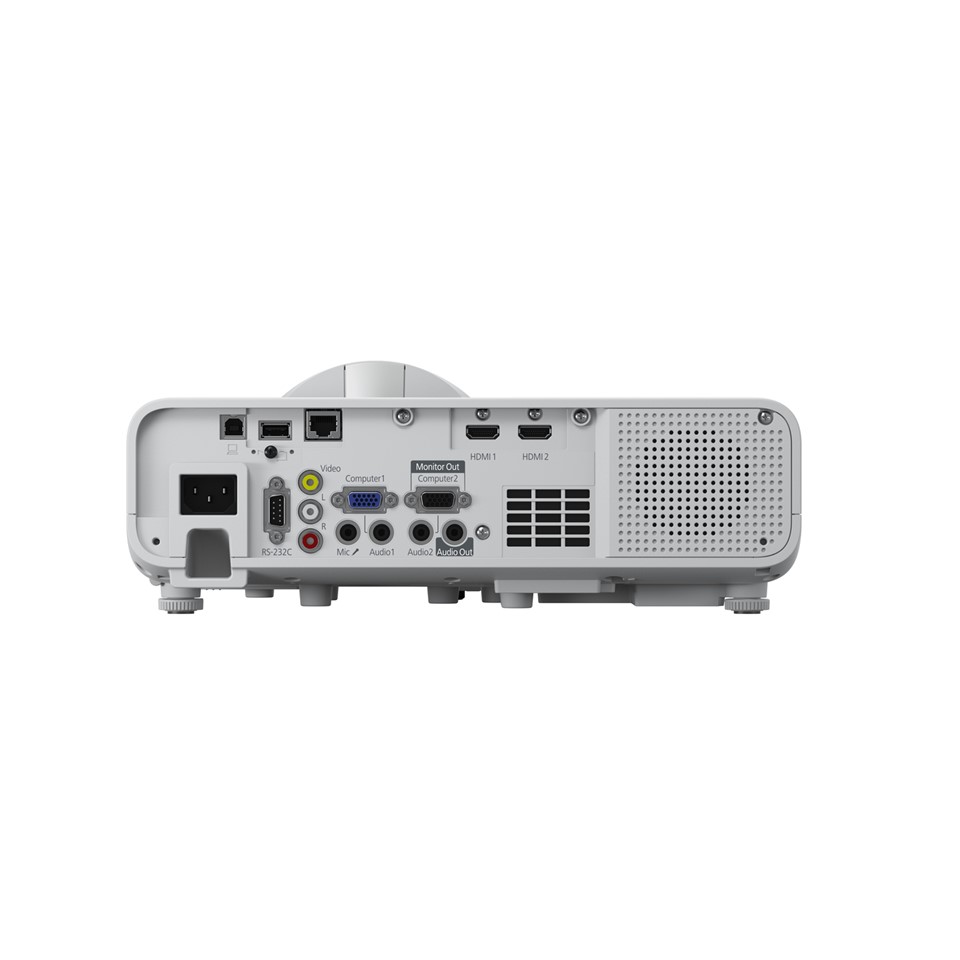

Connectivity:

Analog Input:

D-Sub 15Pin: 2

Composite: RCA x 1 (Yellow)

Digital Input:

HDMI: 2 (HDCP 2.3)

Analog Output:

D-Sub 15Pin: 1 (Black) (in common with Computer 2)

Audio Input:

RCA: 1 (White, Red)

Stereo Mini Jack: 2

Audio Output:

Stereo Mini Jack: 1

Mic I/O:

Mic In: 1 (Stereo Mini)

Control I/O:

RS-232C: D-Sub 9pin x 1

Others:

USB Type A: 1 (For PC Free, Firmware Update, Copy OSD Settings or 5V/2A Power Supply)

USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Network I/O:

Wired LAN: RJ45 x 1 (100Mbps)

Wireless: Built-in and Optional wireless (using ELPAP11)

Contrast Ratio:

Contrast Ratio:

Screen Size (Projected Distance):

Standard Size:

87" screen 91 cm

Zoom : Wide:

53" to 120" [54 cm to 126 cm]

Geometric Correction:

Vertical/Horizontal Keystone:

±15° / ±15°

Quick Corner:

Yes (Manual)

Operating Temperature:

Operating Temperature:

0 – 2286m (0-7500ft): 0°C - 40°C (32°F - 104°F); 20%-80% Humidity, No Condensation

Over 2286m(7500ft): 0°C - 35°C (32°F - 95°F); 20%-80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:

Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period:

Less than 9 seconds (Epson logo), Warm-up Period: 30 seconds

Quick Start-Up:

Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period:

Instant Off

Internal Speaker(s):

Sound Output:

16W Monaural

Weight:

Weight:

Approx. 4.6kg

Air Filter:

Type:

Electrostatic Filter

Maintenance Cycle:

20,000 hours

Fan Noise:

Fan Noise (Normal / Eco):

37dB / 27dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):

337mm x 325mm x 90mm

Brightness:

Colour Light Output:

4,000lm

White Light Output (Normal/Extended)

4,000lm / 2,800lm

Image:

Noise Reduction:

Yes

Super-Resolution:

Yes

Detail Enhancement:

Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):

Supported Speed for Each mode :

Infrastructure:

IEEE 802.11b (2.4GHz): 11 Mbps

IEEE 802.11g (2.4GHz): 54 Mbps

IEEE 802.11n (2.4GHz): 72.2 Mbps

IEEE 802.11a (5GHz): 54 Mbps

IEEE 802.11n (5GHz): 150.0 Mbps

IEEE 802.11ac (5GHz): 325Mbps

Access Point(Wi-Fi Direct):

IEEE 802.11g (2.4GHz): 54 Mbps

IEEE 802.11n (2.4GHz): 72.2 Mbps

IEEE 802.11a (5GHz): 54 Mbps

IEEE 802.11n (5GHz): 150.0 Mbps

IEEE 802.11ac (5GHz): 325Mbps

Supported Mode :

Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security

Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP

Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;

Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Wireless Specifications (Optional Wireless LAN):

Supported Speed for Each Mode:

Access Point (Wi-Fi Direct):

IEEE 802.11g (2.4GHz): 54Mbps,

IEEE 802.11n (2.4GHz): 72.2Mbps,

IEEE 802.11a (5GHz): 54Mbps,

IEEE 802.11n (5GHz): 150Mbps,

IEEE 802.11ac (5GHz): 325Mbps

Supported Mode:

Access Point (Wi-Fi Direct)

Supported Security Type:

WPA2-PSK (AES)

Projectors Facets:

Resolution, Projectors Facets:

WXGA

Contrast Ratio, Projectors Facets:

5,000,000 : 1

Inputs & Interfaces, Projectors Facets:

Epson Creative Projection App

RJ-45 & RS-232

Brightness Range Lumens, Projectors Facets:

4001

Short Throw / Ultra Short Throw, Projectors Facets:

Short Throw

Features, Projectors Facets:

Screen Mirroring

Wifi

Short Throw

Laser / Lamp, Projectors Facets:

Laser

Light Source, Projectors Facets:

Type: Laser Diode

Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Main Parts Specification:

LCD:

Size: 0.59” (C2Fine)

Resolution: WXGA

Projection Lens

Type: No Optical Zoom / Focus (Manual)

F-number: 1.6

Focal Length: 6.4mm

Zoom Ratio: 1.0 – 1.35 (Digital Zoom)

Throw Ratio: 0.48 – 0.65

Lightsource:

Type:

Laser Diode

Light Source Life (Normal/ Quiet/ Extended):

20,000 / 20,000 / 30,000 hrs

Direct Power On / Off:

Direct Power On / Off:

Yes

Power Supply Voltage:

Power Supply Voltage:

100 – 240 V AC ±10%, 50/60 Hz

Power Consumption

LD On (Normal / Extended): 260W / 191W

Standby (Network On / Off): 2.0W / 0.5W
