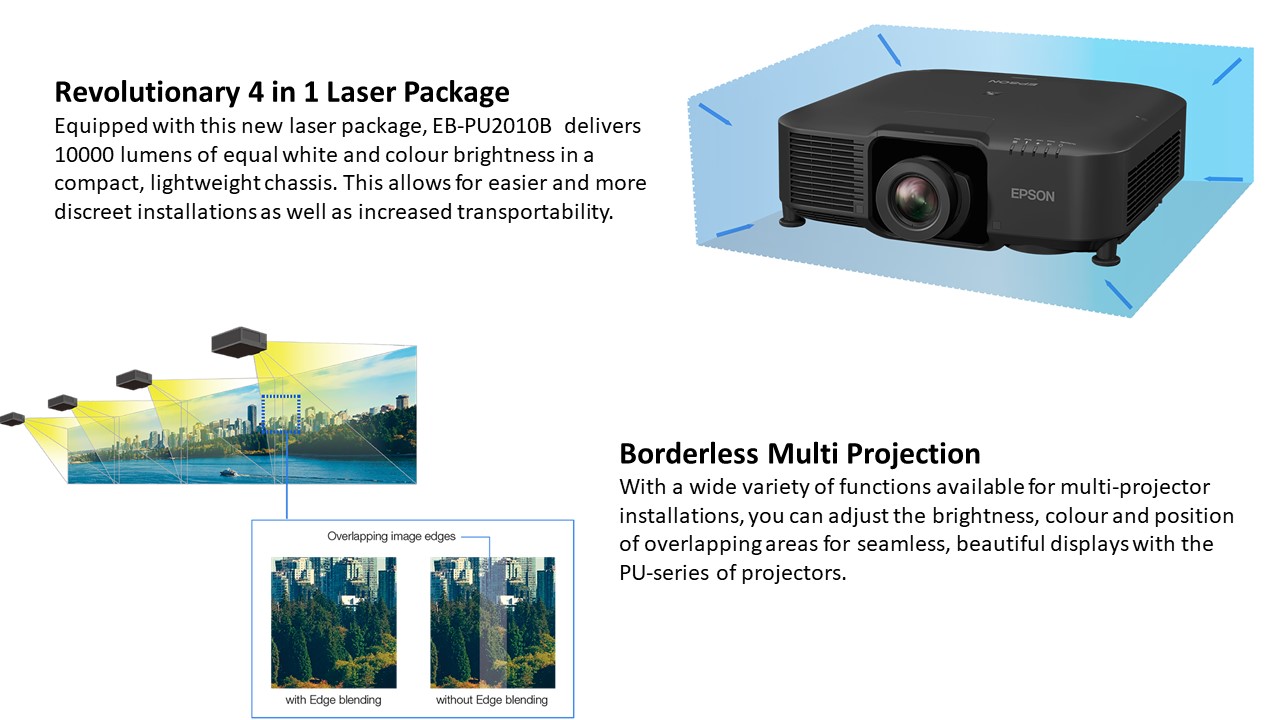

A sleek powerful projector boosting 10,000 lumens of equal colour and white brightness and is designed to be virtually maintenance-free.

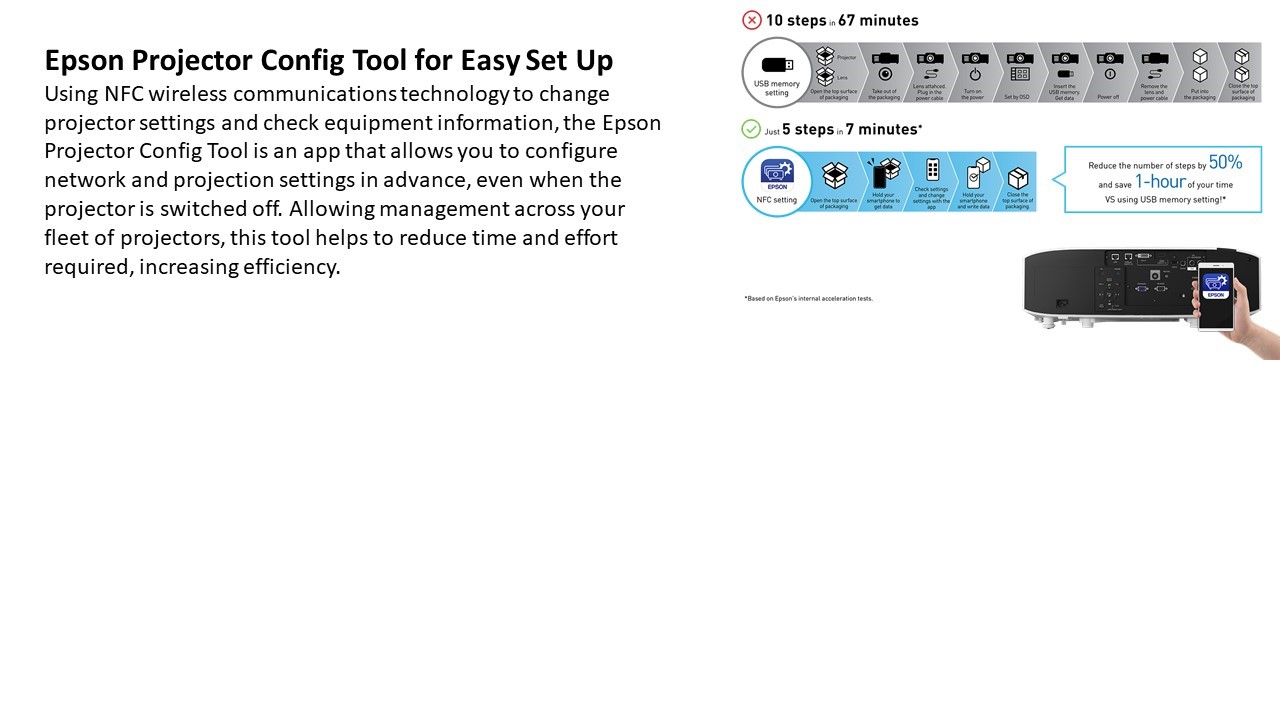

This compact and versatile high brightness projector with optional interchangable lens including a zero-offset ultra short throw lens allows offers flexibility in a wide variety of environments. With its beyond Full HD WUXGA resolution and 4K Enhancement Technology (1920 x 1200 x 2), expect stunning, crystal-clear, true to life images with exceptional image detail and clarity. With the Built-in NFC function, diagnostics and installations is made easier using the Epson Projector Config Tool, reducing the time spent even for the setting up of multiple projectors. The optional external camera module allows access to powerful automated tools including auto color calibration, screen matching of multiple projectors, Geometry Correction Assist for Tiling for Edge Blending, and the Geometry Correction Assist for Stacking function.

• 10,000 lumens Colour and White brightness
• 4K Enhancement Technology with HDR support
• SDI input and output connectivity
• Laser light source — up to 20,000 hours of use
• Compatible with wide range of up to 10 optional powered lenses
• Advanced installation tools : Free software tools and optional ELPEC01 external camera module





Specifications

Projection System: High-aperture Epson® 3LCD, 3-chip technology

Projection Method: Front/rear/ceiling mount

Driving Method: Poly-silicon TFT Active Matrix

Pixel Number: 2,304,000 dots (1920 x 1200) x 3 chips

Signal Input Maximum Display Resolution: 4096 x 2160

(resizing display) Display Resolution: 1920 x 1200 pixels

Native Resolution WUXGA with 4K Enhancement1 (1920 x 1200 x2)

Resolution on Screen: WUXGA with 4K1

Enhancement/4.6

million pixels1

Aspect Ratio Supports: 4:3, 16:9, 16:10

Pixel Arrangement: Cross stripe

Color Brightness: Color Light Output: 10,000 lumens

White Brightness: White Light Output: 10,000 lumens

Contrast Ratio: 2,500,000:1 (Dynamic Contrast: On)

Lamp Hours: 20000 hours

Brightness Uniformity (typical): 85%

Color Reproduction: Up to 1.07 billion colors

Keystone Correction: Vertical: ±45 degrees;

                                        Horizontal: ±30 degrees

Illumination Technology: Laser Phosphor

Projection Lens (Standard)

Standard Lens: ELPLM08 (sold separately)

Type: Powered shift/focus/zoom

F-number: 1.7 – 2.3

Focal Length: 24.0 mm – 38.2 mm

Zoom Ratio: Optical zoom 1 – 1.6x

Throw Ratio Range: 1.45 – 2.32

Lens Shift Vertical: ±67%; horizontal: ±30%

Other Features

Operating Temperature: 32 ˚ to 113 ˚F (0 ˚ to 45 ˚C)

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC

Power Consumption: 559W (Normal, Custom)

                                        469W (Medium, Quiet, Extended)

                                        2.0 W Standby (Communication on)

                                        0.5 W Standby (Communication off)

Fan Noise: 35dB (Normal Mode)

                    34dB (Medium Mode)

                    30dB (Eco Mode)

Security: Security cable hole, lens lock, Kensington lock provision, wireless LAN unit lock

Video I/O

Input Signal: Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160

Dimensions (W x D x H)

Excluding Feet, Lens: 21.5" x 17.2" x 6.5"

Weight: 37 lb

Remote Control

Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions

Operating Angle:

Angle Front: Right/Left: 60 to +60 Upper/Lower +30

to 20 degrees

Angle Rear: Right/Left 30 to +30 Upper/Lower +50

to +10 degrees

Operating Distance: 98 ft

Eco Features

RoHS compliant Recyclable product

Epson America, Inc. is a SmartWay® Transport Partner10

Support

Epson Connection^SM

Pre-sales support U.S. and Canada 800-463-7766

Internet website www.epson.com

Service Programs

The projector has a limited warranty of 3 years. Epson Road

Service program with free Next-Business-Day replacement,

PrivateLine® dedicated toll-free support (U.S. and Canada only)

What’s in the Box

EB-PU2010B projector, power cable, remote control with 2 batteries, cable cover, lens connector cap, user guide and warranty sheet
