Prepare to be amazed

The ultimate home cinema demands the best in projection. Bring a state-of-the-art cinema experience to your home with Epson’s EH-LS12000B projector. Featuring revolutionary 3LCD laser projection technology, 4K resolution and HDR10+ support, this high-definition projector delivers phenomenal image quality and colour brightness that elevates any screening to an enthralling cinematic experience. Be prepared to be amazed by jet-black to bright, colour rich quality images for unparalleled realism!

=       2700 lumens Colour and White brightness

=       4K resolution

=       HDR10+ support

=       Frame interpolation of up to 4K 60fps

=       Installation flexibility made possible with wide lens shift



Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD:

Size: 0.74” (C2 Fine) wide panel with SMLA (C2Fine, 12bit, OD)

Lightsource:

Type: Laser Diode: 198W

Laser Life: 20,000 hours (Normal / Eco)

Resolution:

4K

Pixel Number: 8.3M Dots (1920 x 1080 x 4)

Native Resolution:

1080p

Projection Lens:

Type: Power Zoom, Power Focus

Screen Size (Projected Distance):

Standard Size:

100” diagonal 3.00 – 6.30m

Screen Size (Zoom: Wide): 50-300” (1.48m – 9.08m)

Screen Size (Zoom: Tele): 50-300” (3.13 – 18.99m)

Brightness:

White Light Output (Normal/Eco):

2,700 lm / 1,000 lm

Colour Light Output:

2,700 lm

Contrast Ratio:

Contrast Ratio:

Over 2,500,000:1

Geometric Correction:

Vertical/Horizontal Keystone:

Vertical Keystone: ±30 degrees

Horizontal keystone: ±30 degrees

Point Correction:

YES

Quick Corner:

YES

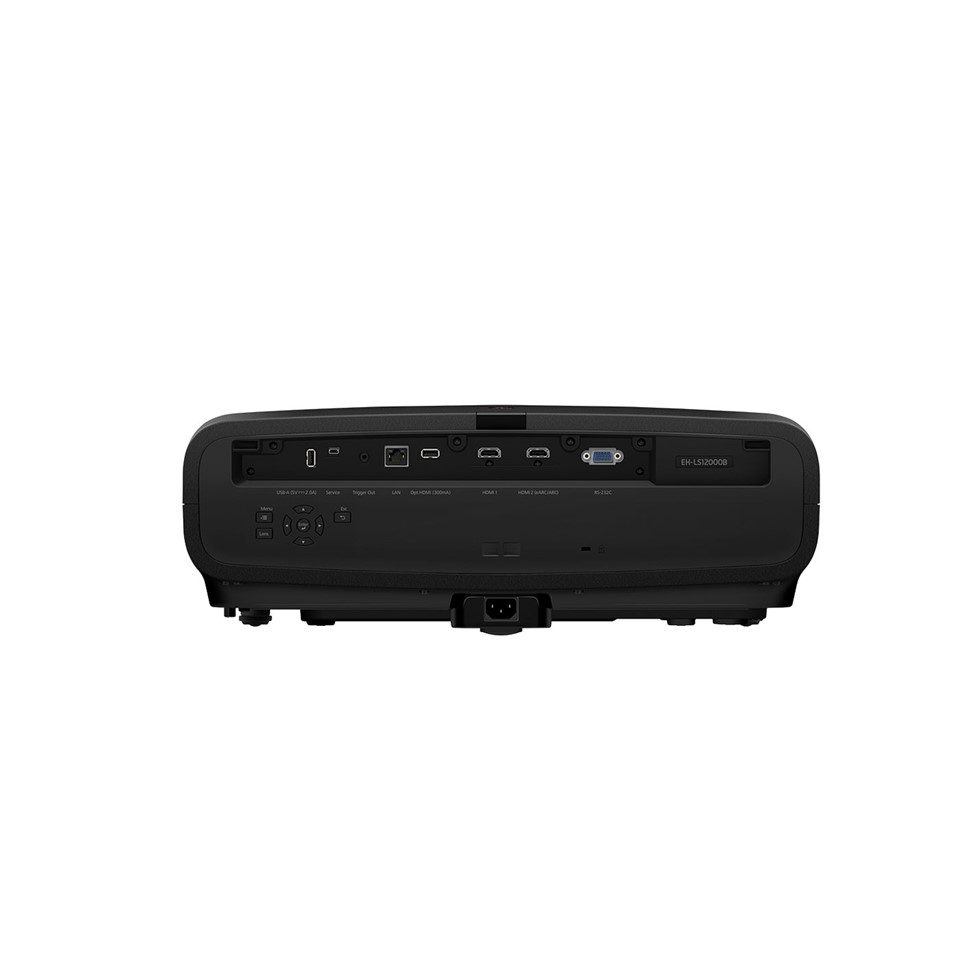

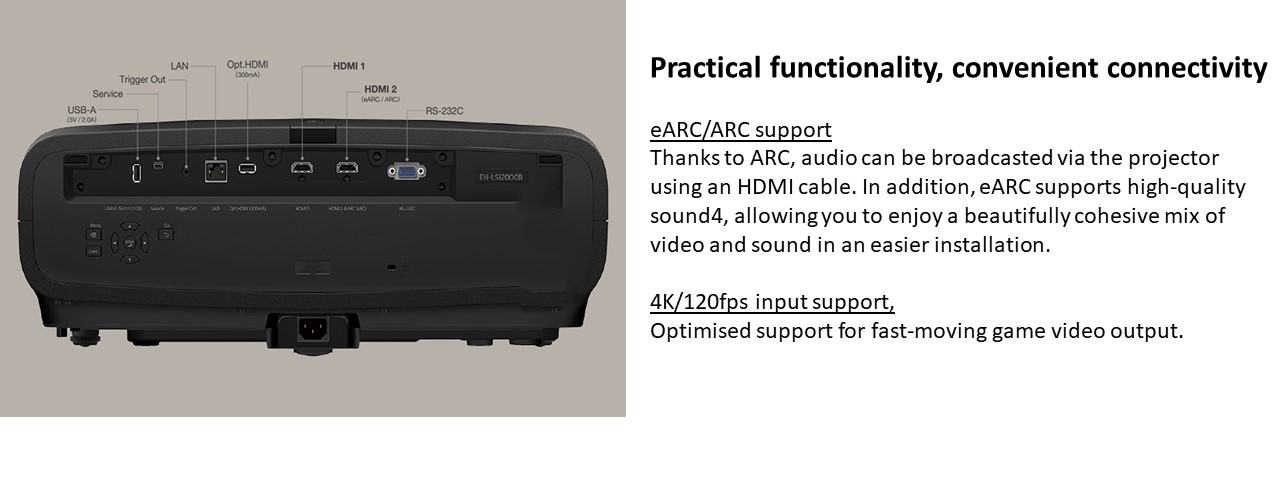

Connectivity:

Network:

USB Type A: 2 (1: Firmware Update, Copy OSD Settings,

Save Log or 5V/2A Power Supply; 2: For Opt HDMI

and 5V/300mA Power Supply)

USB Type Mini-B: 1 (For Firmware Update, Copy OSD Settings)

Network:

Wired LAN: RJ45 x 1

Digital Input:

HDMI: 2 (HDCP2.3; HDMI2: eARC/ARC)

Control I/O:

RS-232C: D-Sub 9pin x 1

Trigger Out (12V): 3.5mm Mini Jack x 1

Wireless:

Optional using Streaming Media stick ELPAP12.

Power:

Power Consumption:

LD On (Normal / Quiet, Extended): 335W / 210W

Standby (Network On / Off): 2.0W / 0.4 W

Power Supply Voltage:

100 - 240 V AC ±10%, 50/60 Hz

Operating Altitude:

Operating Altitude:

0 m to 3,048 m <0 ft to 10,000 ft>

Over 1,500m / 4,921 ft, with High Altitude mode

Start-Up Period:

Start-Up Period:

Less than 8 seconds

Warm-up period: 30 seconds

Cool Down Period:

Cool Down Period:

Instant Off

Direct Power On/Off:

Direct Power On/Off:

Yes / NA

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):

520 x 169 x 447mm

Weight:

Weight:

Approx. 12.7kg

Projection Lens:

Type:

Power Zoom, Power Focus, Powered Lens Shift

Focal Length:

22.5 – 46.7 mm

Zoom Ratio:

1 – 2.1

F-number:

2.0 – 3.0

Lens Shift:

Vertical Lens Shift: ±96.3 % (H Center, Powered)

Horizontal Lens Shift: ±47.1 % (V Center, Powered)

Screen Size:

Zoom: Wide: 50” to 300” [1.48 to 9.08 m]

Zoom: Tele: 50” to 300” [3.13 to 18.99 m]

Standard Size: 100” screen 3.00 to 6.30 m

Throw Ratio Range:

1.35 – 2.84

Adjustment Functions:

Aspect Mode:

Auto / Normal / Full / Zoom / Anamorphic Wide / Horizontal Squeeze

Frame Interpolation:

Yes

Image Enhancement:

Image Preset Mode:

Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)

Mpeg Noise Reduction:

Yes

Scene Adaptive Gamma:

Yes

Auto Contrast Enhancement:

Yes

Operating Temperature:

Operating Temperature:

5 - 35 °C <41 - 95 °F> (0m / 0ft - 2286m / 7,500ft)

5 - 30 °C <41 - 86 °F> (Over 2,286m / 7,500ft)

20% - 80% Humidity, No Condensation
