Experience A New Type of Projection Experience

Go Epic!

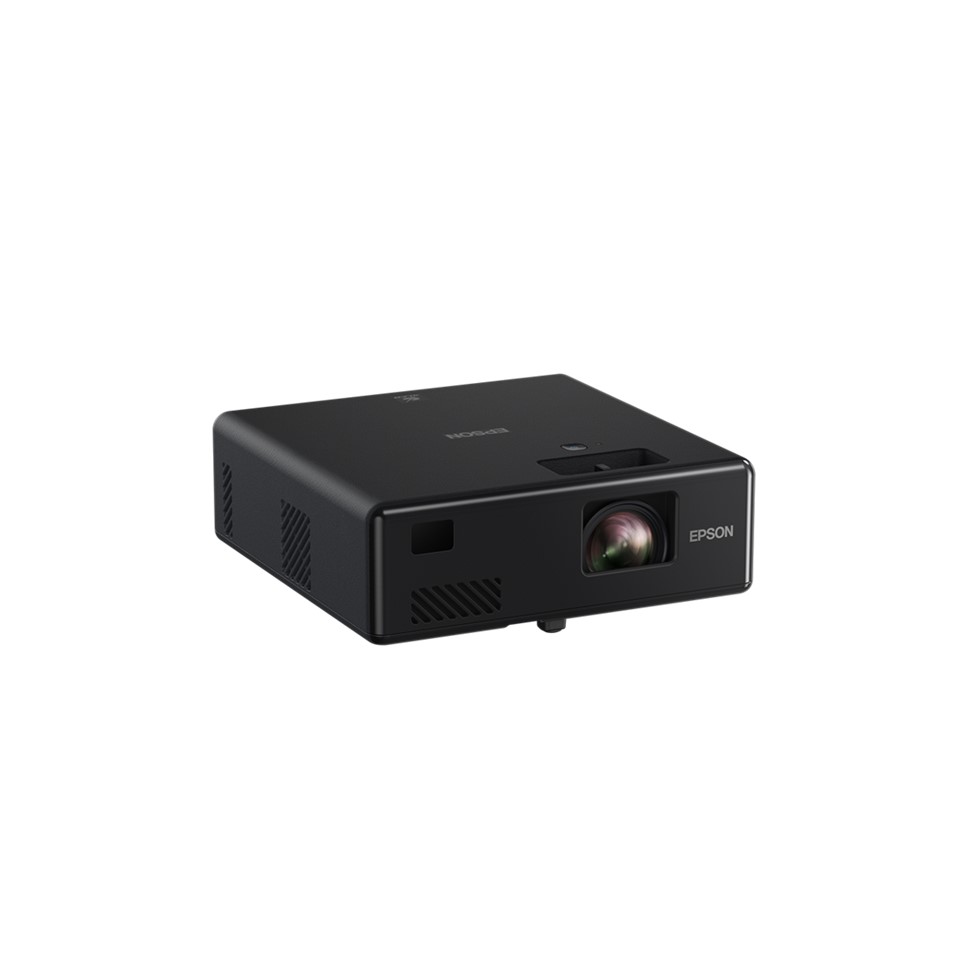

Enjoy an epic viewing experience virtually anywhere with the Epson EpiqVision Mini EF-11 Laser Projection TV. With a built-in high-quality speaker system, this all-in-one projector is the perfect way to watch all your favorite content. Simply connect your entertainment devices using the HDMI port and you’re ready to project your favorite content up to an epic 150" — no screen required.

The Epson EpiqVision Mini EF-11 Laser Projection TV takes the complexity out of watching your favorite content anywhere in your home.

=       Full HD 1080p resolution

=       Stunning Picture Quality up to 150"

=       Screen Mirroring from smart devices1

=       Integrated Dual-Speaker Audio System

=       Lightweight of up to 1.2kg

=      20,000 Hours Laser Light Source Technology





Specifications

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD:

Size: 0.62” (C2 Fine)

Lightsource:

Life (Normal / Extended): 20,000 hours

Type: Laser Diode

Projection Lens:

F-Number: 2.0

Type: No optical zoom / Focus: (Manual)

Zoom Ratio: EF-11: 1.0 – 1.35 (Digital Zoom)

Focal Length: 13.90 mm

Throw Ratio: 1 (Wide to tele)

Aspect Ratio: 16:9

Native Resolution:

Full HD (1080p)

Brightness:

White Light Output (Normal / Eco):

1,000 lm / 1,000 lm

1,000 lm / 1,000 lm

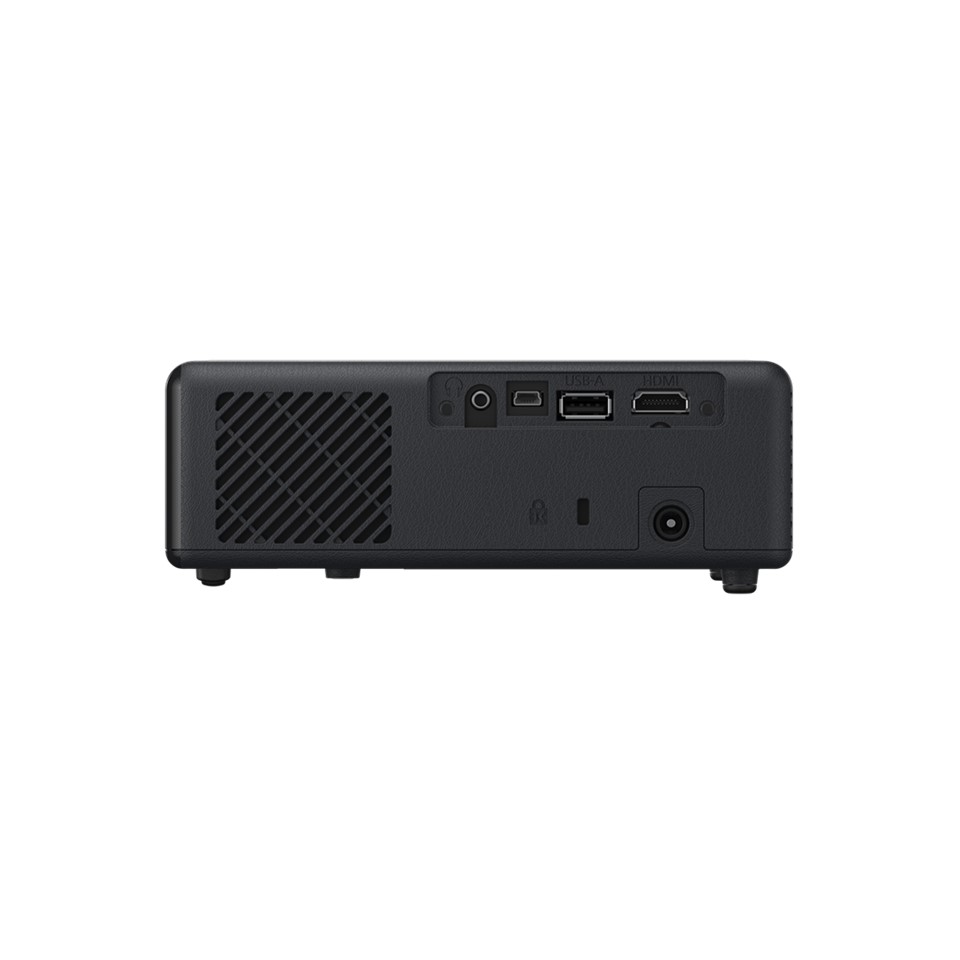

Connectivity:

USB Interface:

USB Type A: 1 (For Firmware Update & Copy of OSD and power supply)

USB Type B: 1 (For Firmware Update and Copy OSD Settings)

Digital Input:

HDMI: 1 (HDCP1.4)

Audio Out:

Stereo mini jack: 1 (for headphone)

Contrast Ratio:

Contrast Ratio:

Over 2,500,000:1

Screen Size (Projected Distance):

Standard Size:

60” screen @ 1.33 m

Zoom : Wide:

30” to 150” [0.65 to 3.38m]

Zoom : Tele:

22” to 111” [0.65 to 3.38m]

Geometric Correction:

Vertical/Horizontal Keystone:

±34⁰ / ±40⁰

Auto Keystone:

Yes (vertical only) ±34⁰ (V)

Quick Corner:

Yes

Projection Orientation:

360⁰

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):

175 X 175 X 58 mm

Internal Speaker(s):

Sound Output:

1.5W 2 Way (Mono)

Weight:

Weight:

Approx. 1.2kg

Projectors Facets:

Resolution, Projectors Facets:

1080p

Contrast Ratio, Projectors Facets:

Over 2,500,000:1

Brightness Range Lumens, Projectors Facets:

1000

4K PRO-UHD, Projectors Facets:

No

Features, Projectors Facets:

Screen mirroring

Laser / Lamp, Projectors Facets:

Laser

Screen Size, Projectors Facets:

20 - 150

Projector Primary Usage, Projectors Facets:

Home Entertainment

Projector Series, Projectors Facets:

EpiqVision Mini
