ENJOY ULTIMATE PICTURE QUALITY AND FEEL THE CINEMATIC EXPERIENCE AT THE COMFORT OF YOUR HOME

Make your home the centre stage for all the action with Epson's EH-TW9400 home projector. Capture everyone's attention and bring family and friends together to experience those memorable moments.

=       4K PRO-UHD Resolution

=       White and Colour Brightness at 2,600 lumens

=       Flexible Installation with Optical Lens Shift

=       Impressive 3D Image Quality

=       Wide-range Connectivity

=       Enhanced HDR Function

High-definition Images with 4K Enhancement Technology

4K enhancement technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160, surpassing full HD image quality to give you unbelievable sharpness, clarity and detail on all your presentations.

Epson 4K PRO-UHD

Delivers an amazing 4K UHD experience with advanced pixel-shifting, resolution-enhancement technology.

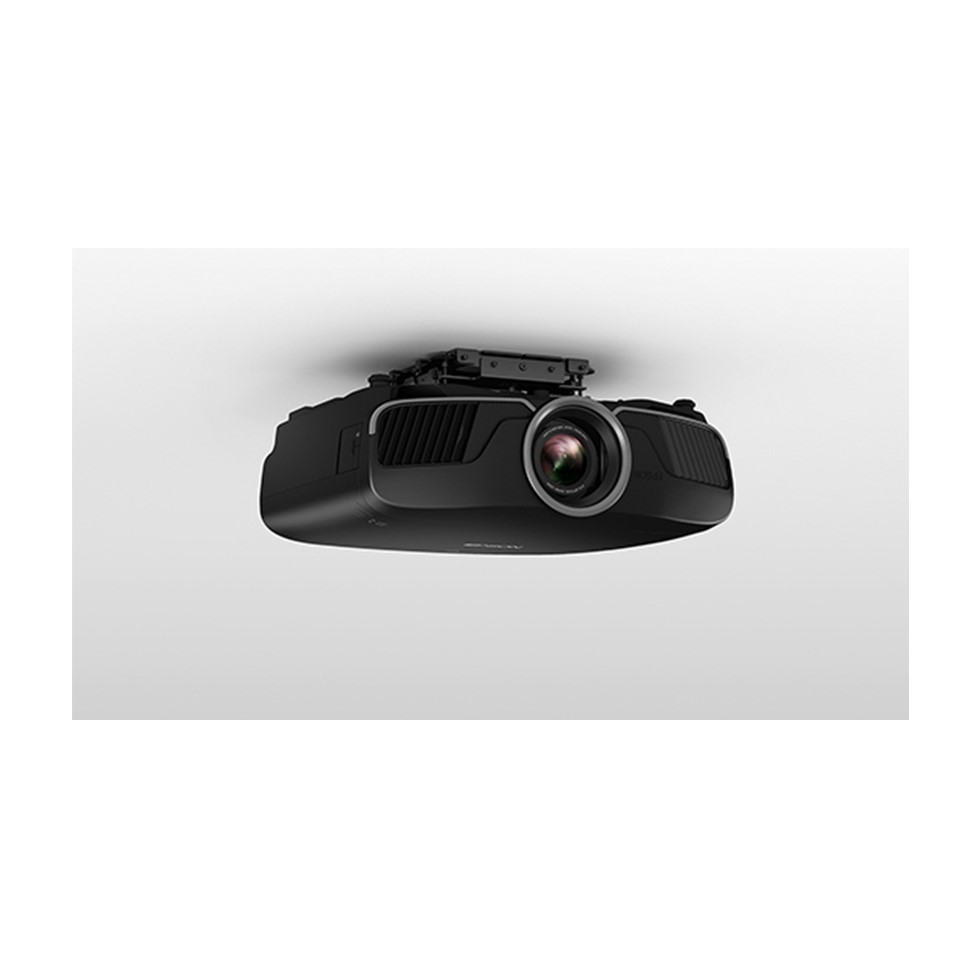

Flexible Installation with Optical Lens Shift

The wide lens shift range of these projectors provides exceptional installation flexibility. A short focal length as little as 300cm is possible with a 100-inch screen. A broad shift range of 96% vertically and 47% horizontally with the optical lens shift function also keeps image deterioration low, allowing you to position your projector at any point in the room.

Compact Design for Easy Ventilation

Designed with the air intake and exhaust at the front so that you can easily install them even in narrow spaces. Place them on a bookshelf or close to walls without worrying about maintaining clearance for ventilation.

Active 3D with Bluetooth Glasses

Lighter than InfraRed 3D glasses, the Full HD RF 3D Glasses™ are more comfortable and can be connected smoothly via Bluetooth without any transmission interference from obstacles in the room.

High Contrast Ratio

Epson Auto Iris Technology adjusts its aperture to provide optimum contrast and brightness for each scene. You’ll be able to project beautiful well-defined images whenever you are, regardless of ambient light.

Wide-range Connectivity

With integrated support for multiple connection methods, including HDMI to suit a wide range of entertainment devices, these projectors make home entertainment more accessible than ever.

Enhanced HDR Function

Enjoy more vibrant, brighter and sharper images with the enhanced High Dynamic Range (HDR) function. With the wider HDR10 parameter range and 18Gbps support, users can adjust the brightness and gradation of projected images with greater detail and accuracy to project even 4K/60p HDR content such as Netflix.

Specifications:

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system

Specifications of Main Parts:

LCD:

Native Resolution: 1080p

Size: 0.74” wide panel with MLA (C2 Fine, 12 bit, OD)

Projection Lens:

Focal Length: 22.5 - 46.7 mm

Type: Power Zoom, Power Focus

F-Number: 2.0 - 3.0

Zoom Ratio: 1 - 2.1

Throw Ratio: 1.35 - 2.84

Lamp:

Life (High / Medium / Eco): 3,500 / 4,000 / 5,000 hours

Type: 250W UHE

Brightness:

White Light Output (Normal/Eco):

2,600 lm / 640 lm

Colour Light Output:

2,600 lm

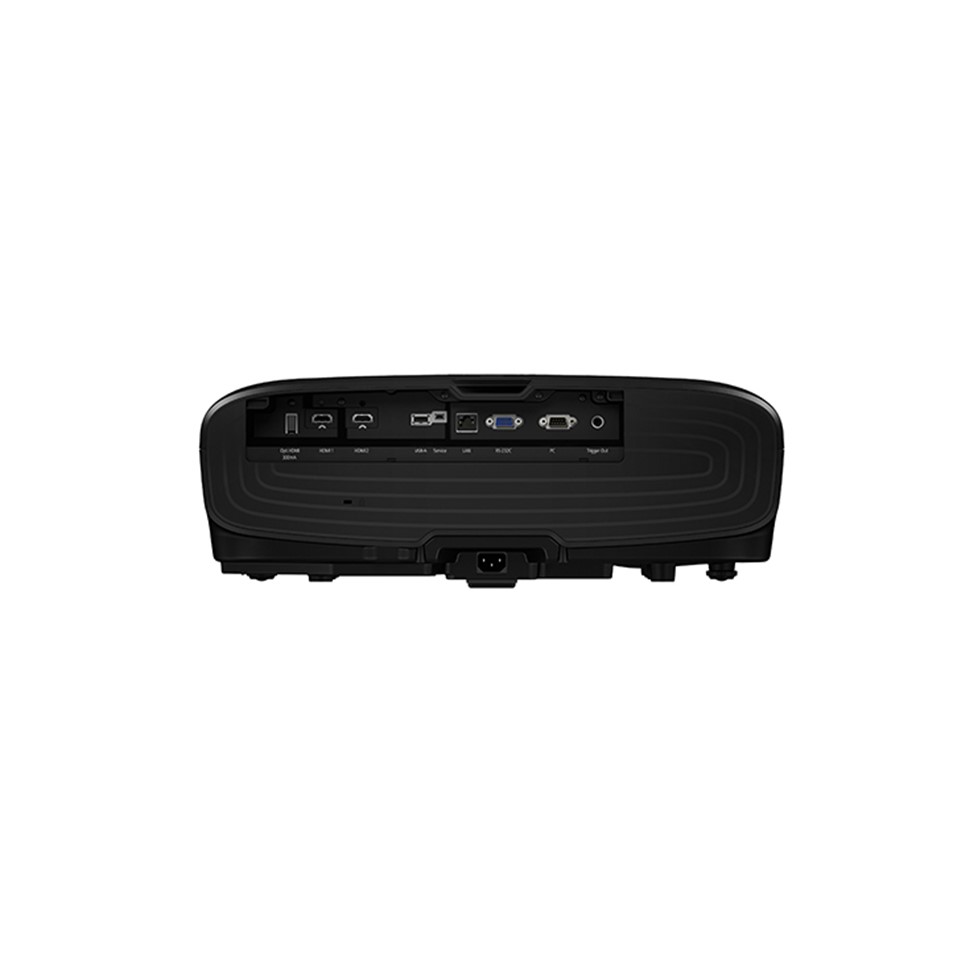

Connectivity:

USB Interface:

USB Type A: (Left USB: Opt. HDMI cable with 300mA power supply)

USB Type A: 2 (Right USB: Wireless LAN, Firmware Update, Copy OSD Settings) (Left USB: Opt. HDMI cable with 300mA power supply)

USB Type B: USB Mini-B x 1 (For Service and Firmware Update)

Network:

Wireless: Optional (ELPAP10)

Wired LAN: RJ45 x 1

Analog Input:

D-Sub 15Pin: 1 (Blue)

Digital Input:

HDMI: 2

Control I/O:

RS-232C: D-Sub 9pin x 1

Trigger Out (12V): 3.5mm Mini Jack x 1

Contrast Ratio:

Contrast Ratio:

1,200,000:1

Screen Size (projected distance):

Standard size:

100" screen [3.00 - 6.30 m]

Zoom: Wide:

50" to 300" [1.48 - 9.08 m]

Zoom: Tele:

50" to 300" [3.13 - 18.99 m]

Geometric Correction:

Vertical Keystone:

±30 degrees

Adjustment Functions:

Aspect Mode:

Yes (Auto / Normal / Full / Zoom / Anamorphic Wide / Horiz.Squeeze)

Frame Interpolation:

Off / Low / Normal / High (2D and 3D Mode)

Image Enhancement:

Image Preset Mode:

Yes (Off / Preset1 / Preset2 / Preset3 / Preset4 / Preset5)

Mpeg Noise Reduction:

Yes

Super Resolution:

Yes (Fine line adjust / Soft focus detail)

Detail Enhancement:

Yes (Range / Strength)

Start-Up Period:

Start-Up Period:

Warm-up period: 30 seconds

19 seconds

Operating Temperature:

Operating Temperature:

5 - 30 °C <41 - 86 °F> (over 2286m / 7500ft)

5 - 35 °C <41 - 95 °F> (0m/0ft - 2286m / 7500ft)

20% - 80% humidity, No condensation

Operating Altitude:

Operating Altitude:

0 - 3048 m <0 -10000 ft> (over 1500 m / 4,921 ft : with high altitude mode)

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):

520 x 170 x 450 mm

Weight:

Weight:

Approx. 11.2kg

Direct Power On/Off:

Direct Power On/Off:

Yes / N/A

3D Features:

3D Display:

Yes (Auto / 3D / 2D)

3D Format:

Side by Side / Top and Bottom

3D Depth:

-10 to +10

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode:

IEEE 802.11n (2.4GHz): 130 Mbps

IEEE 802.11b (2.4GHz): 11 Mbps

IEEE 802.11g (2.4GHz): 54 Mbps

Wireless LAN Security:

WPA-PSK, WPA2-PSK

Supported Connection Mode:

Infrastructure, Access Point

Cool Down Period:

Cool Down Period:

16 seconds

Fan Noise:

Fan Noise (Normal / Eco):

31dB / 20dB

Projectors Facets:

Resolution, Projectors Facets:

4K PRO-UHD

Contrast Ratio, Projectors Facets:

1,200,000:1

Brightness Range Lumens, Projectors Facets:

2000

4K PRO-UHD, Projectors Facets:

Yes

Features, Projectors Facets:

Wifi

4k Pro UHD

Laser / Lamp, Projectors Facets:

Lamp

Screen Size, Projectors Facets:

50 - 300

Projector Primary Usage, Projectors Facets:

Home Theater

Power Supply Voltage:

Power Supply Voltage:

100 - 240 V AC +/- 10%, 50/60 Hz

Power Consumption (220 - 240V):

Lamp On (Normal/Eco):

355W / 271W

Stand By (Network On / Off):

2.0W / 0.3W

Lens Shift Range:

Vertical Lens Shift:

±96.3 % (H Center, Powered)

Horizontal Lens Shift:

±47.1 % (V Center, Powered)
