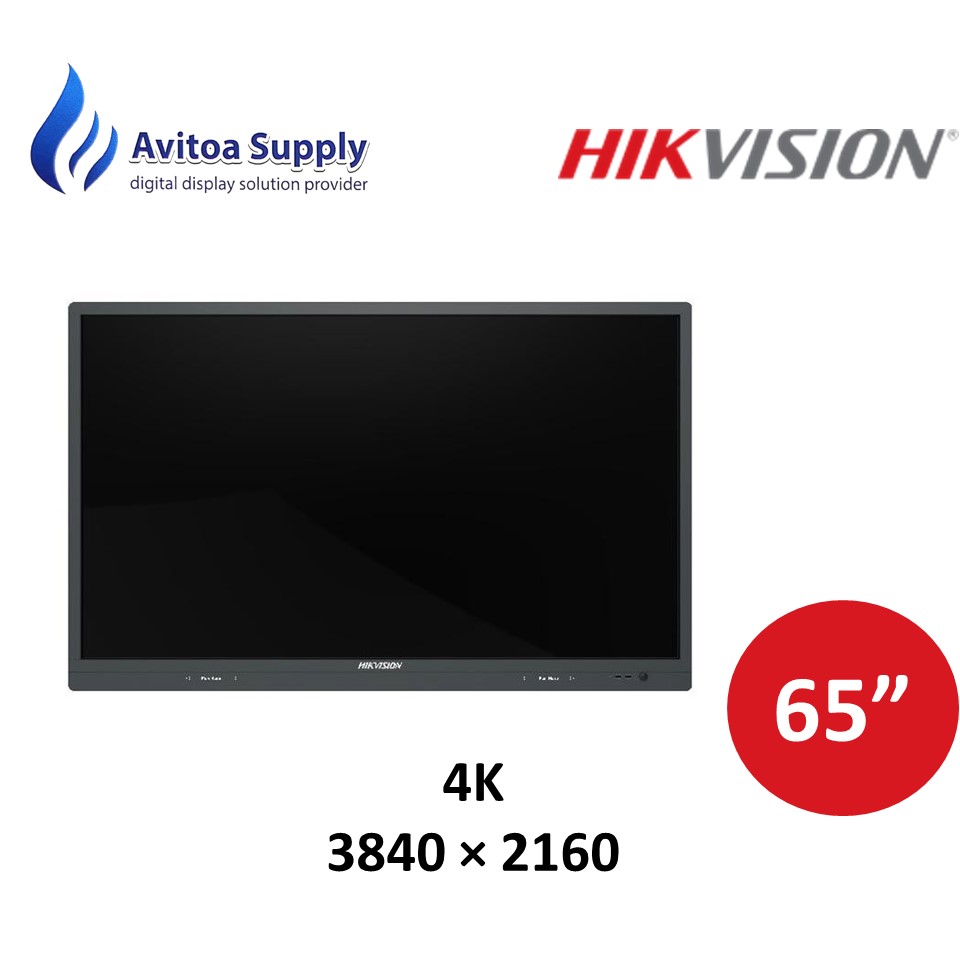

Product Model

Product Model: DS-D5A65RB/B

Display

Viewing Angle: 178°(H)/178°(V)

Screen Size: 65 inch LED Backlight

Backlight: DLED

Pixel Pitch: 0.372(H) mm × 0.372(V) mm

Resolution: 3840 × 2160@60 Hz

Brightness: 450 cd/m²

Color Depth: 10 bit

Contrast Ratio: 1200:1 (Typ.)

Response Time: 6 ms

Color Gamut: 68% NTSC

Built-In System

Operation System: Android 8.0

Processor: 4-core A73 × 2 + A53 × 2, 1.5 GHz

Memory: 3 GB

Built-In Storage: 32 GB

NIC: Built-in 100Mbps NIC, supporting routing

Touch

Touch Type: Infrared touch screen

Touch Point: 10 point multi-touch

Touch Response Time:＜ 10 ms

Touch Precision: ± 1 mm (≥ 90% touching area)

Interface

Video & Audio Input: HDMI IN × 2, VGA IN × 1, PC AUDIO IN × 1, LINE IN × 1

Video & Audio Output: HDMI OUT × 1, LINE OUT × 1, SPDIF OUT × 1, Built-in 16 W speaker × 2

Network Interface: RJ45 (100Mbps ports) × 2

Data Transmission Interface: 2 USB on front panel , 2 USB on rear panel

Control Interface: RS-232 × 1

Power

Standby Consumption: 0.5 W

Power Consumption:＜ 200 W (full load)

Working Environment

Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)

Working Humidity: 10% to 90% RH

General

Power Supply: 100 to 240 VAC, 50/60 Hz

Gross Weight: 53 kg (116.84 lb)

Net Weight: 42 kg (92.59 lb)

Package Dimensions (W × H × D): 1725 mm × 1095 mm × 280 mm (67.91'' × 43.11'' × 11.02'')

Product Dimensions (W × H × D): 1505 mm × 907 mm × 114 mm (59.25'' × 35.71'' × 4.49'')
