Panel

Backlight: DLED

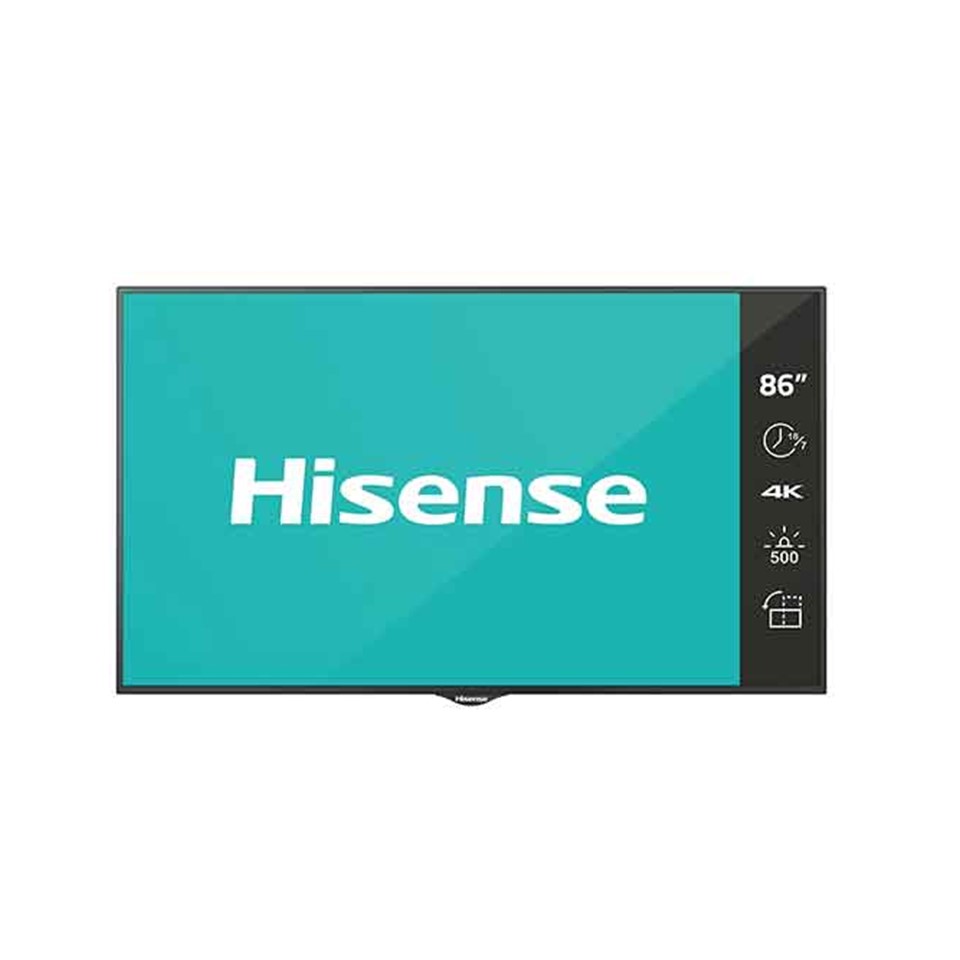

Size: 86’’

Resolution: 3840 x 2160

Refresh rate: 60HZ

Brightness: 500 nits (typ)

Contrast(typ): 1200:1 (typ)

Orientation: Landscape & Portrait

Lifetime: 50,000hrs

Operation Hours: 7Day x 18Hour

Control Method

Remote: IR

RS232: RS232*1 (RJ45)

Speaker

Built in speaker: 10W x2

Power

Input: AC 100V-240V@50-60HZ

Power Consumption: 500W

Standby Consumption: <0.5W

Environment

Operation Temperature: 0 - 40°

Operation Humidity: 20% - 80%

Connectivity

WIFI: 2.4G/5G

LAN: 10/100Mbps

TF Card: TF x 1

Operating System

OS: Android 8.0

Physical

Bezel Color: Black

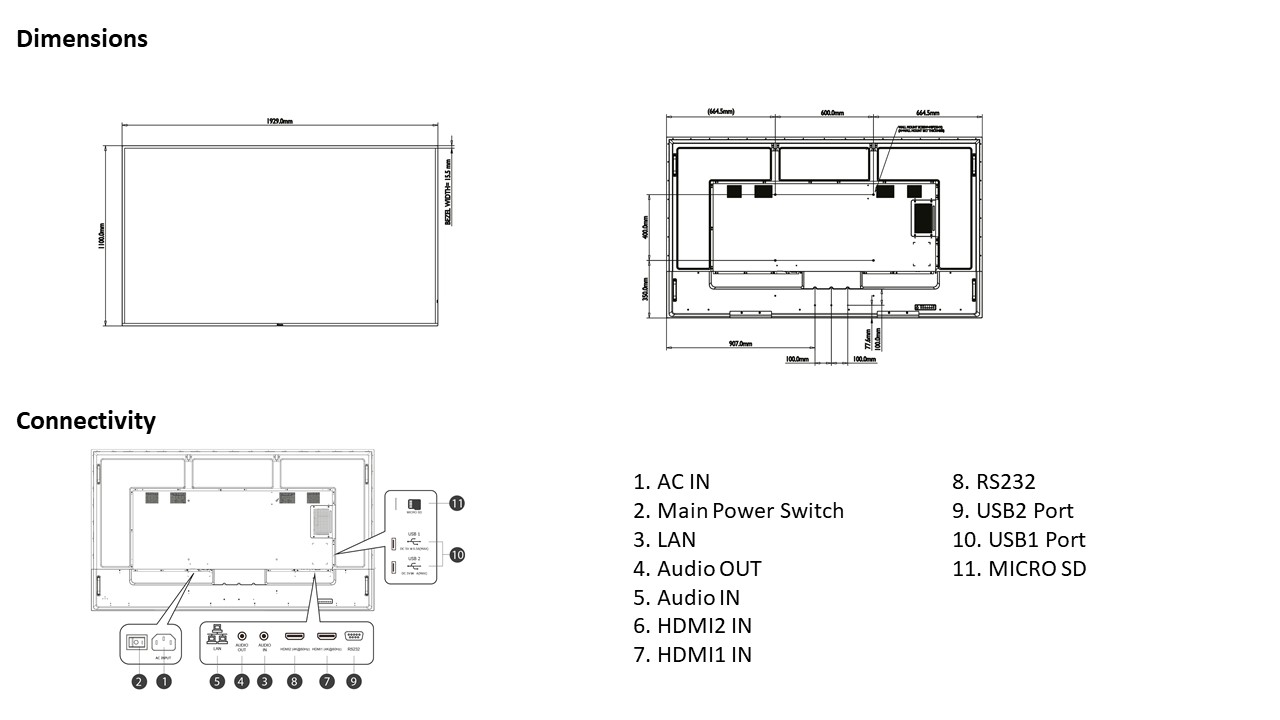

Set Dimension (WxHxD): 1929.0 x 1100.0 x 69.5 mm

Bezel width (T/L/R/B): T/B/L/R:15.5mm

Net Weight: 49.5kg

Packing Dimension (WxHxD): 2130 x 248 x 1321mm

Packed Weight: 63.4kg

VESA: 600mm x 400mm

Certification

Standard Certification: CB,CE,ERP,RCM

What’s in the box

User manual

Remote controller inc battery

Power cord

RS232 cable

HDMI cable
