Interactive Display panel

Size: 86’’

Backlight: D-LED

Resolution: 3840 x 2160

Brightness: 370cd/m²(typ.)

Contrast ratio: 250,000:1

Response Time: 8ms

Refreshing Frequency: 60Hz

Viewing angle: 178°(H) / 178°(V)

Lifetime: 50,000hrs

Color Gamut: 85%

Display Colours: 1.07B(10bit)

System

OS: Android 8.0

Speaker

Audio Output Power: 2x15W/8Ω

Connectivity

Input: HDMI IN x 2, DP IN x 1, OPS(optional) x1, LAN x 1, USB x 4 (1 for Camera), Type-C x 1, Touch x 1, RS232 IN x 1

Output: HDMI OUT x 1, S/PDIF OUT x 1, Audio OUT x1

Power

Power Requirements: AC 100 V ~ 240 V, 50/60 Hz

Power Consumption Without OPS: 460W

Touch

Sensing Type: Infrared Touch Frame

Surface Protection: 4mm Anti-Glare Glass

Infrared Touch: ≤20 points

Touch Accuracy: 90%(±1mm)

Response Time: ≤8ms

Minimum Touch Object: ≥2mm

Physical

Housing Color: Black

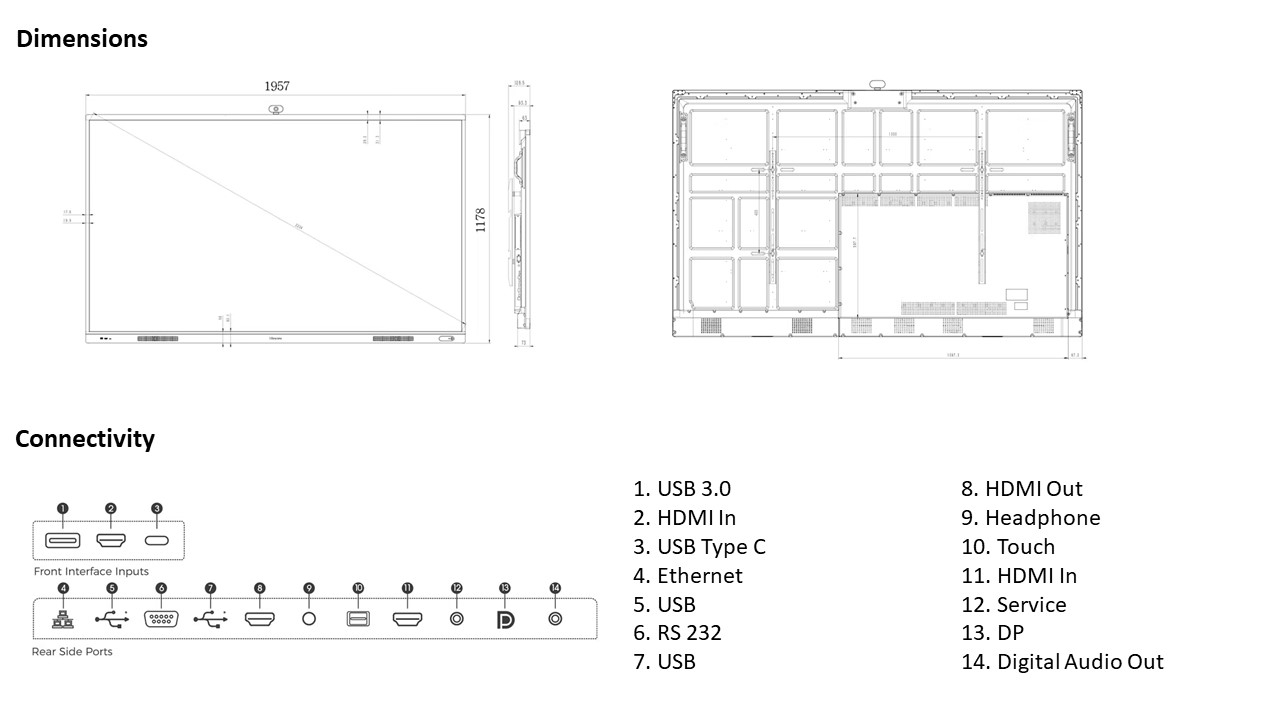

Product Size (W x H x D): 1957 x 1178 x 94mm

Package Size (W x H x D): 2158 x 1370 x 302mm

Net Weight: 74.2kg

Packed Weight: 102kg

VESA: 1000x400mm, 4-M8 screw

Certification

Standard Certification: CB,CE,cTUVus,CEC,FCC,ICASA

EAN: 6973172940860

What’s in the box

User manual

Stylus Pen x 2

Remote control

Hanging Wheel x 4

Wireless Cast x 1

Power Cable

Battery x 2

Wall Mount Bracket x 1
