UFT Technology

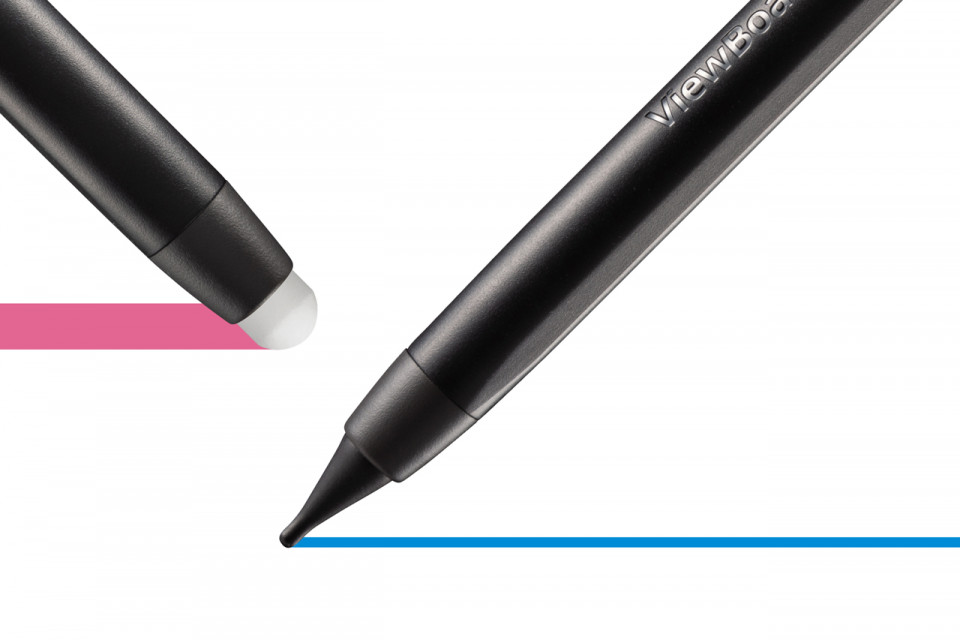

Dual-Pen

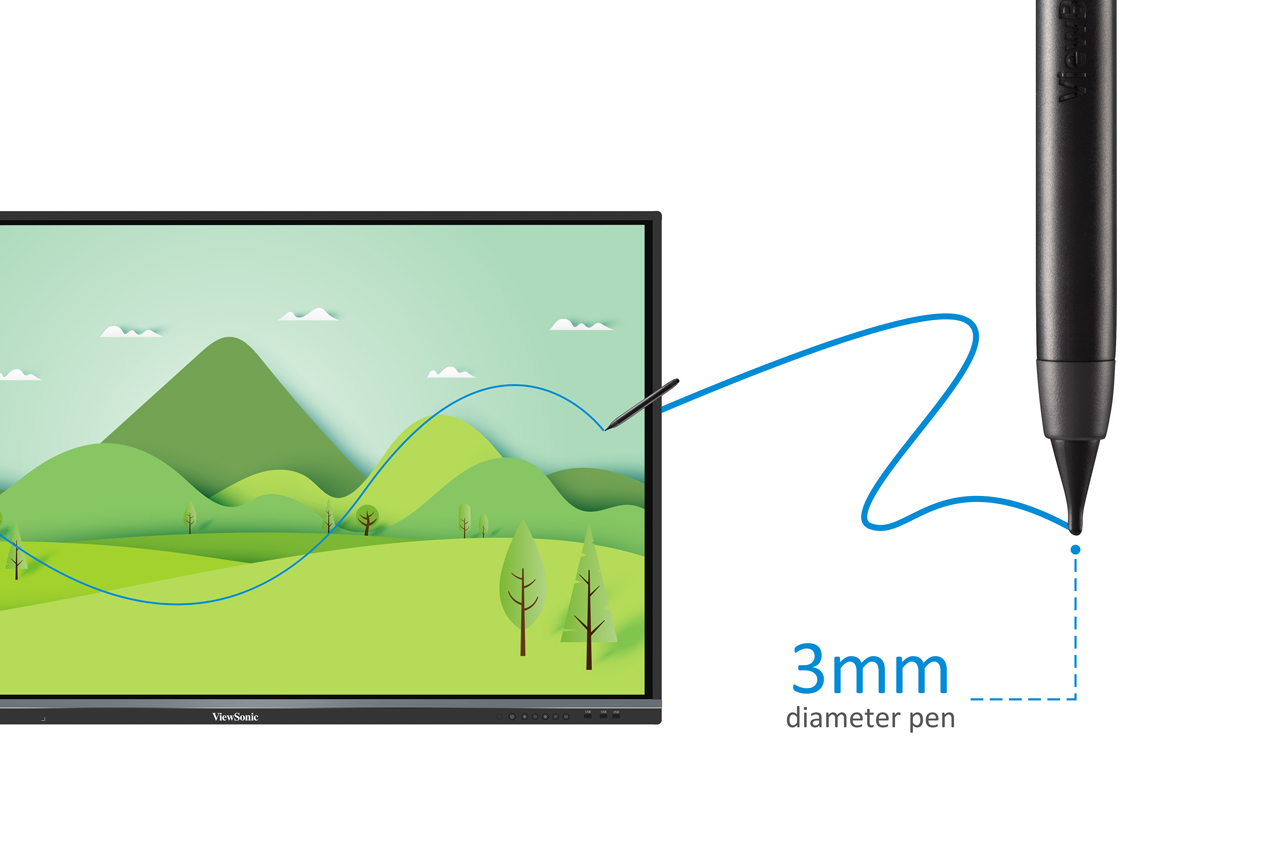

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on embedded OS

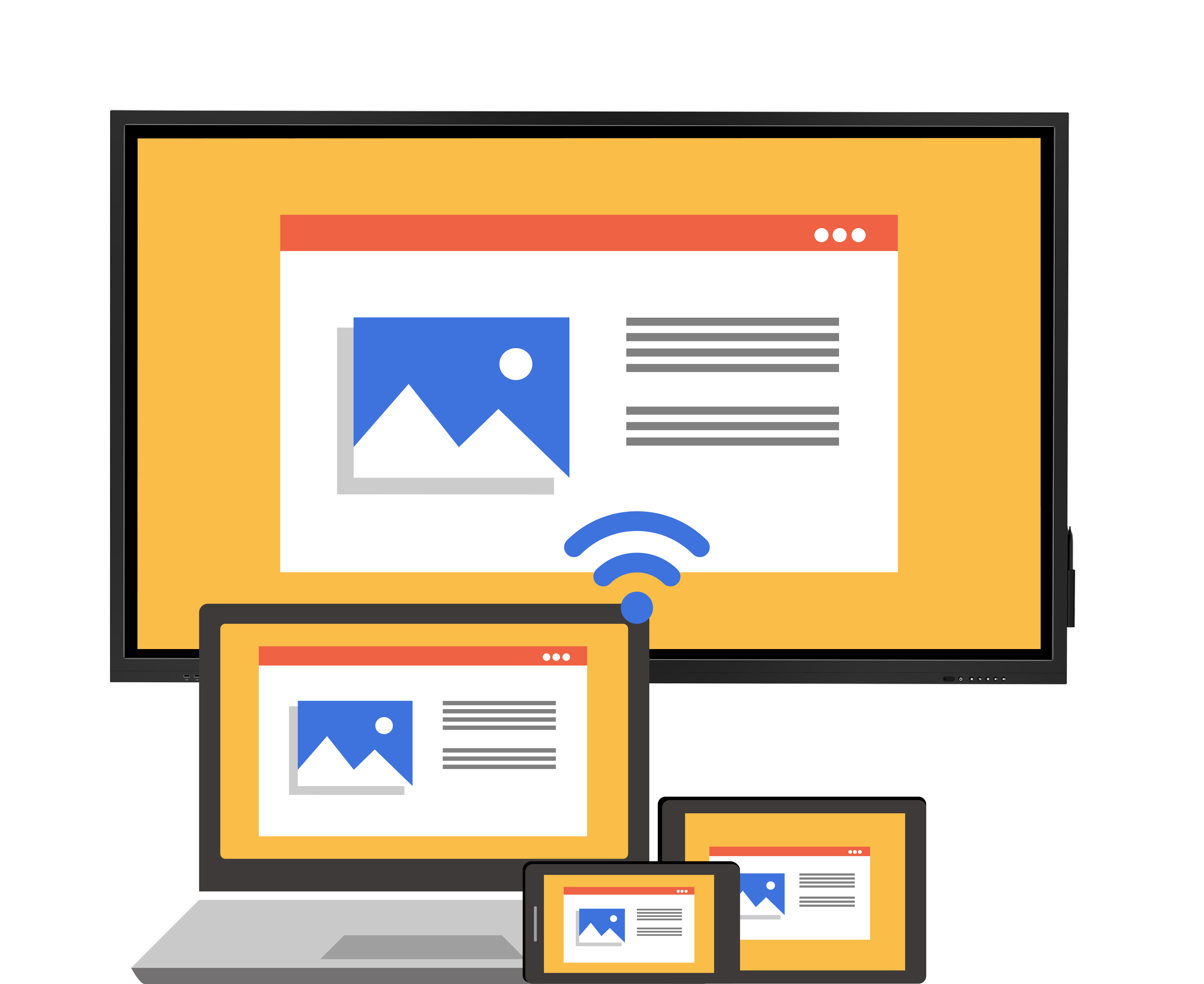

Wireless Content Sharing

Ambient Light Sensor

Automatically adjust the brightness to relieve eye strain.

Slot-in PC

Intel OPS PC allows for efficient deployment and easy maintenance (Optional).

SPECIFICATIONS
DISPLAY
Panel Size: 75"
Type/Tech: IPS/V-by-one
Display Area (mm): 1647.36*926.64mm
Aspect Ratio: 16:9
Native Resolution: 4K60hz
Colours: 10 bits
Brightness: 450(Typ.)
400(min.)
Contrast Ratio: 1200:1
Response Time: 8ms(Type)
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000hr(min)
Surface Treatment: Hardness: 7H
Costing: AG coating
Thickness: 4mm
Bezel: 29/29/29/49.7mm(btm.)
Orientation: Landscape
PLATFORM
Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz
RAM: 3GB DDR4
Storage: 16GB
TOUCH
Type/ Tech: IR Recognition
Touch Resolution: 32767W*32767D
Touch Point: 20 points
INPUT
HDMI: Front*1
Rear* 2
All ports HDMI2.0
RGB / VGA: 1
DisplayPort: DP1.2*1
Audio: PC audio in (3.5 mm)*1
RS232: x1
OPS: 1
OUTPUT
HDMI: *1
Audio: 3.5mm Earphone Out *1, SPDIF*1
SPDIF: x1
LAN
RJ45: *2
10M/100
USB
Type A: USB2.0 *4 (Front:*2 Rear: *2 )
Type B: For touch (Front*1, rear*1))
SPEAKERS
SPEAKERS: 15WX2
CAMERA PLATE ON TOP FOR SCREW-IN WEBCAM INSTALLATION
Camera plate on top for screw-in webcam installation: yes
COMPATIBILITY
RGB PC/HDMI PC: VGA: 1080p
HDMI: 4K
HDMI: 3840x2160
DisplayPort: 3840x2160
EMBEDDED OS
Embedded OS: OS 8.0
Resolution: 1080p
POWER
Voltage: PB model:
100-240VAC +/- 10% Wide Range
Consumption: On: 115W(Typ.)
Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 600x400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing(working)
DIMENSIONS (W X H X D)
Physical (inch / mm): 1753.1*1052.3*102.8(mm)
69.02*41.43*4.05(inch)
Packaging (inch / mm): 1880*1160*280(mm)
74*45*11(inch)

WEIGHT
Net (lb / kg): 135lb, 61.25kg
Gross (lb / kg): 173.8lb, 78.85kg

REGULATIONS
REGULATIONS: EMC/CE-EU, CB-EU/IEC62368, RoHS Green BOM & RoSH DoC, REACH, WEEE (Doc & Disassebly report), ErP, EAC(local apply), UKrSEPRO(local apply), , BIS-India

ENERGY STAR VERSION
Energy Star version: YES

EEI RATING
EEI rating: A+

PACKAGE CONTENTS
PACKAGE CONTENTS:
1. US/EU/UK/AU power cord , no PE bag
2. QSG
3. Compliance statement
4. HDMI cable*1
5. Touch USB cable *1
6. Touch PEN *2. Extra tip: Thick*2, thin*1
7. Remote control with AAA batteries (VS version)
8. Webcam plate with screws pack
a. Need to compatible with Logi CC4000e)
b. Add screw holes on top of the frame
9. Pen tray*1 (two pen, detachable, mount for both side)
10. Wall mount screws

COMPATIBLE SLOT-IN PC
Compatible Slot-in PC: VPC12 series
