DISPLAY
Type: TI DMD 0.65
Resolution (Native): 1920x1080 (Full HD)
F Stop / Focal Length mm: 2.54
Focus / Zoom: Adjustable by OSD menu / N/A
Keystone: H:+/-30° , V:+30°/-12°
Auto keystone: Yes (Vertical)
Display Size: 80" ~ 150"
Throw Distance: 0.43 m ~ 0.8 m
Throw Ratio: 0.23
Lamp Power: 390 W
Lamp Life (Normal / SuperEco Mode): 15,000 / 20,000 (Ecco mode) (hours)
Brightness: 4,500 ANSI Lumens
Contrast Ratio: 100,000:1
Color Depth: 1.07 Billion Colors (30 bits per color)
Optical Offset : 137.6 +-5%

AUDIO
Speaker: 8W Cube x2

INPUT SIGNAL
Video: 480i and 576i, 480p and 576p, 720p, 1080i, 1080p
Frequency (H/V): 15 ~ 100 KHz / 24 ~ 120 Hz

COMPATABILITY
PC: Support up to 1920x1080@60Hz
Mac: Support up to 1920x1080@60Hz

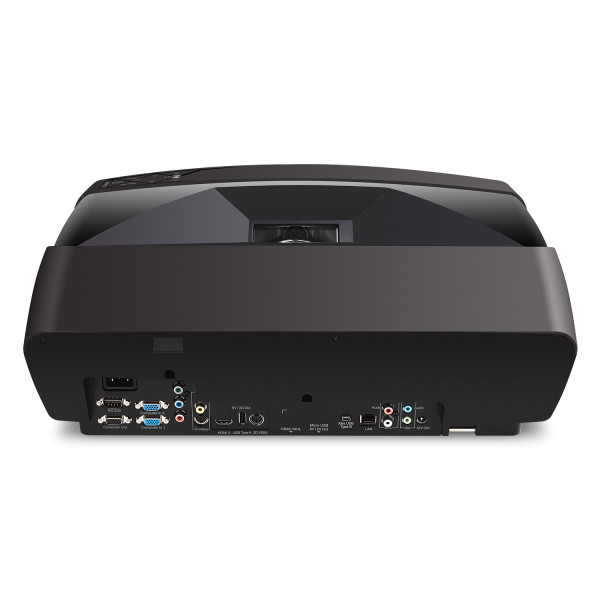

CONNECTOR
VGA Input: x2
VGA Output: x1
Digital Input: HDMI x1 / HDMI (MHL2.0) x1
Composite Input: RCA x1
S-Video Input: x1
Component: x2 (Share with VGA input )
Audio Input: 3.5mm mini jack x1, RCA(L/R) x1
Audio Output: 3.5mm mini jack x1, RCA(L/R) x1
Control: RS-232
USB: Type A x1 (Power Charging) / Mini type B x1 (Maintenance and mouse control) / Micro USB Wire x1 (Power Charging)
Lan: x1
3D VESA: x1
DC Output: x1

POWER
Voltage: 100~240Vac 50/60Hz (Auto Switching)
Power Consumption: 450 W (Max.)
Standby: <0.5W

OPERATING CONDITION
Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Humidity: 0% ~ 90% (non-condensing)
Altitude: 0 ~ 6,000 ft, operational up to 10,000 ft at reduced reliability and performance

NOISE LEVEL
Normal / Eco Mode: 28dB (Eco Mode)

DIMENSIONS
Physical (WxDxH): 508 x 392 x165 mm/ 20” x 15.43 ” x 6.5”

WEIGHT
Net: 13.6 kgs / 29.96 lbs

REGULATIONS
CB, cTUVus, FCC, CE. EMC, CCC, GS, RCM

PACKAGE CONTENTS
1. Power Cord, 1.8m, black 1 2. VGA Cable, 1.8m, black x 1 3. Remote Control with Batteries (With Laser pointer) x1 4. Quick Start Guide (one sheet version) x1 5. ViewSonic CD Wizard (With User Manual) x 1 6. HDMI Cable
