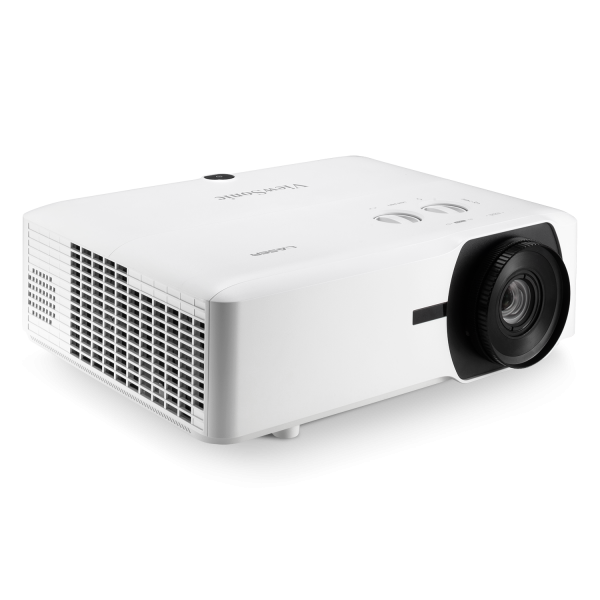

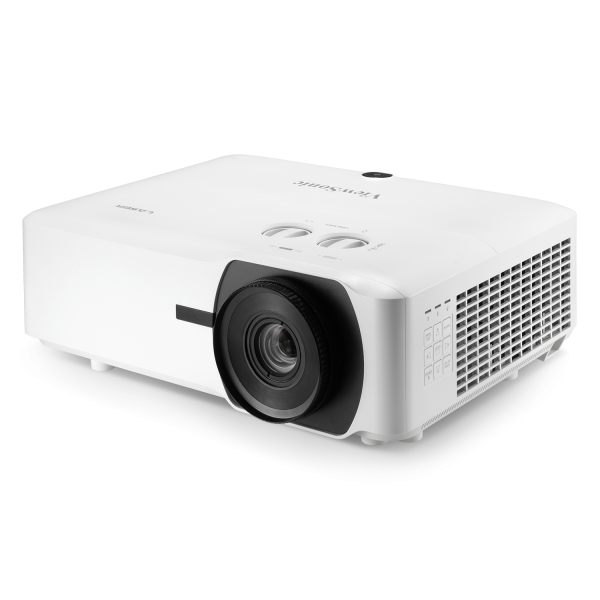

ViewSonic LS860WU Laser Projector

MYR15999.00

Brand: ViewSonic

  • Share

Get shipping estimates

Country
State
Shipping Method

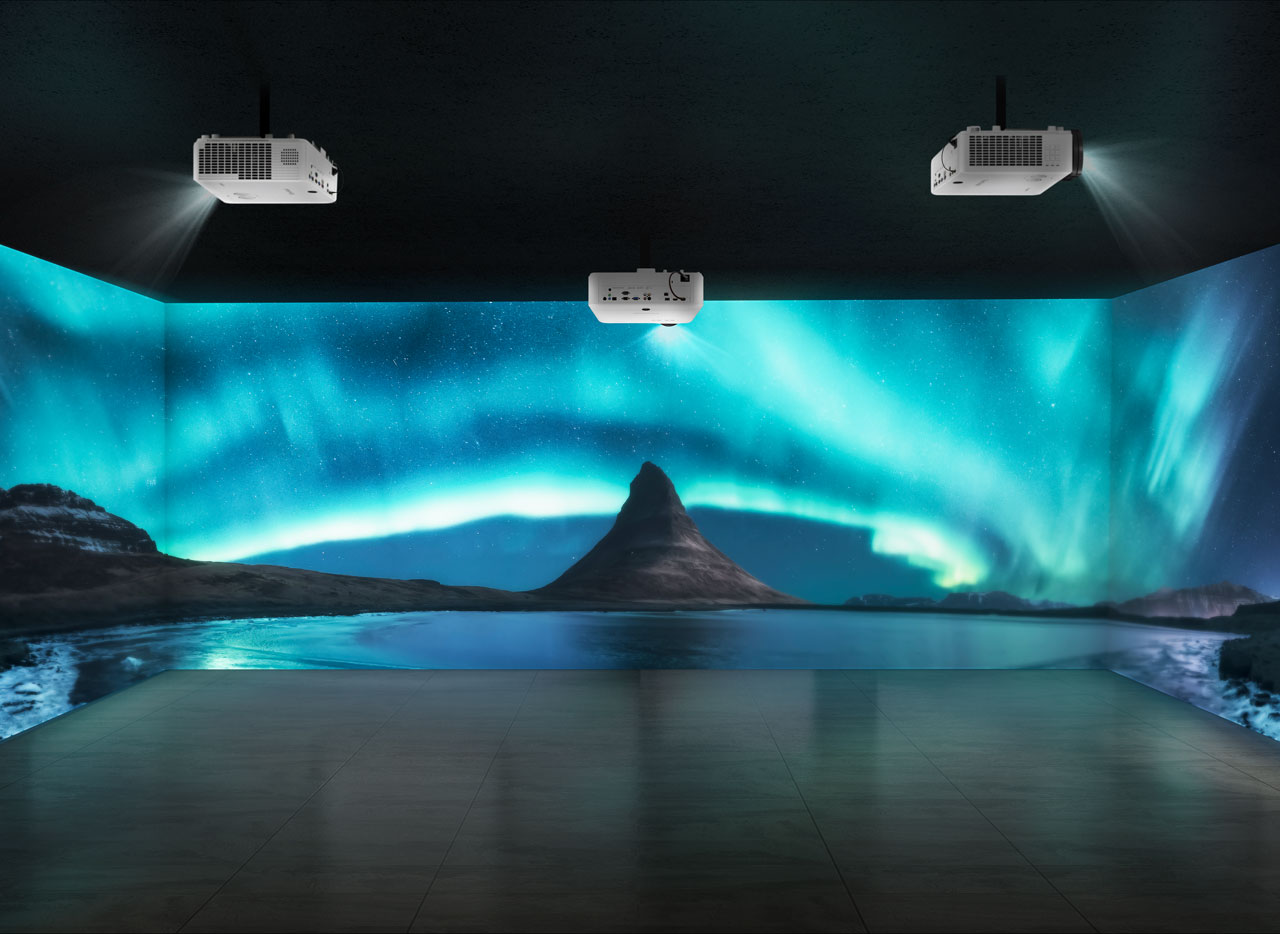

No shadows, No blinding lights.

With the latest projection technologies from ViewSonic, you'll enjoy all the benefits a short throw projector can offer. When projecting on to a video wall, there are no distracting shadows on the screen image, offering excellent edge blending projection. Plus, a 1.1x optical zoom provides a higher level of flexibility to fit some of the most challenging installation environments.

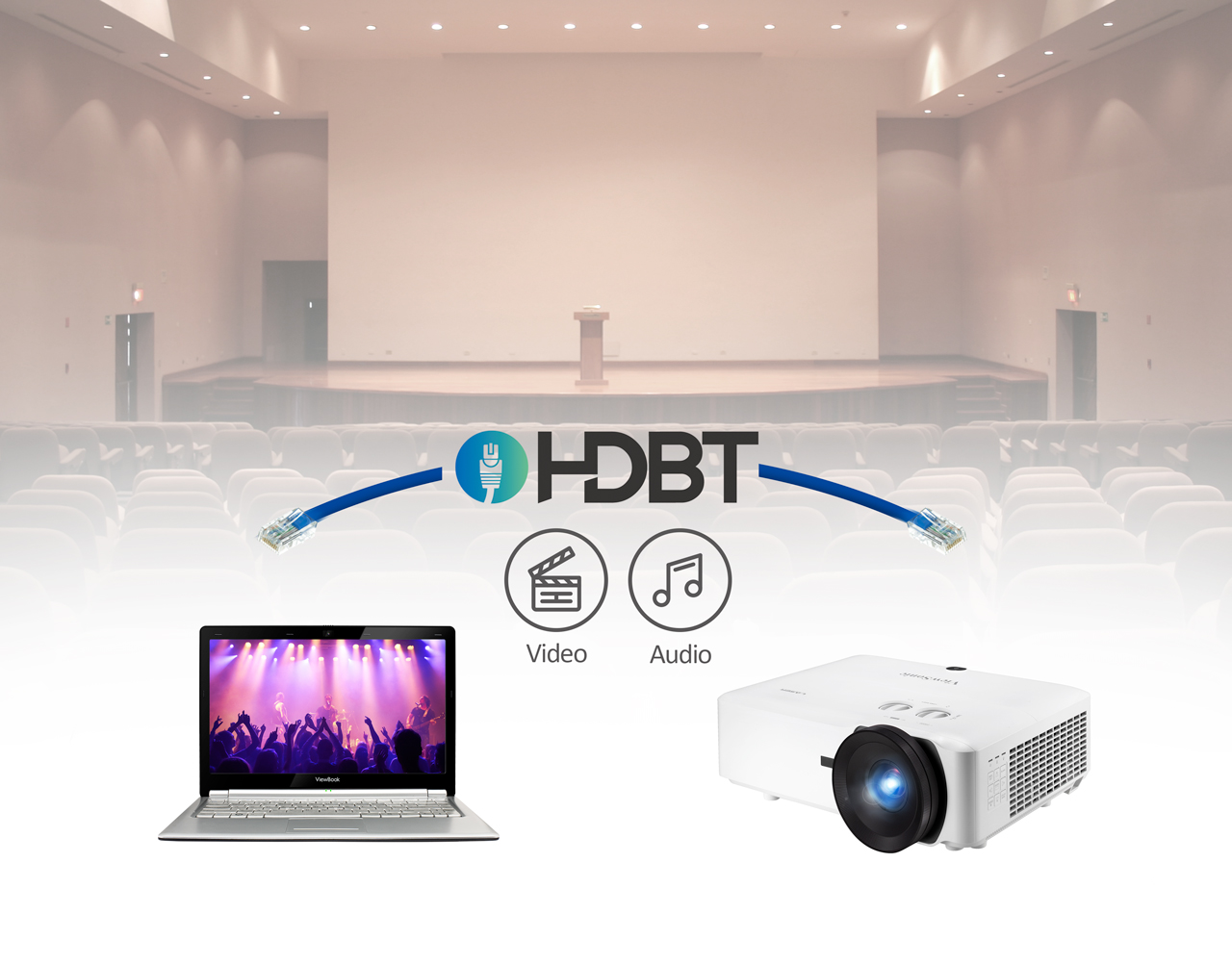

Built-in HDBaseT Receiver

Its built-in HDBaseT receiver is a cost-effective solution to transmit uncompressed high resolution audio and video at a lengthy distance (100 meters for 1080p) when combined with a Cat.5e/6 cable and is compatible with any certified HDBaseT transmitter.

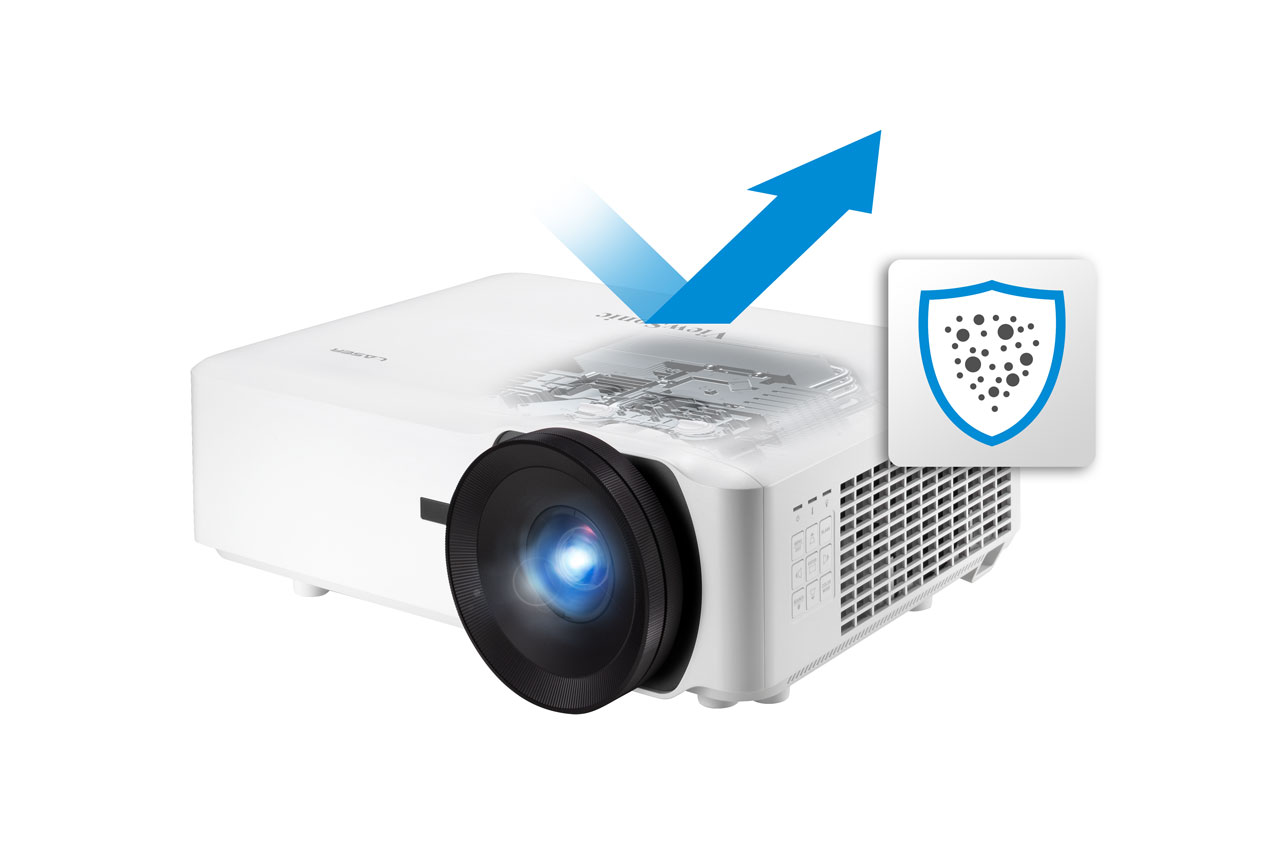

Sealed Optical Engine with IP5X

The advanced sealed optical engine prevents dust and moisture from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.



SPECIFICATION
Native Resolution: 1920x1200
DMD Type: DC3
Brightness: 5000 ANSI Lumens
Contrast Ratio: 3000000:1
Display Colour: 1.07 Billion Colours
Light Source Type: Laser Phosphor system
Light Source Life (Normal): up to 20000
Lamp Watt: Nichia 67W x2
Lens: F=1.83-1.86, f=9.6-9.4mm
Projection Offset: 0%
Throw Ratio: 0.81-0.89
Optical Zoom: 1.1X
Digital Zoom: 0.8x-2.0x
Image Size: 60"-200"
Throw Distance: 1.04-3.83m
(100"@1.74m)
Keystone: H:+/-40° , V:+/-40°

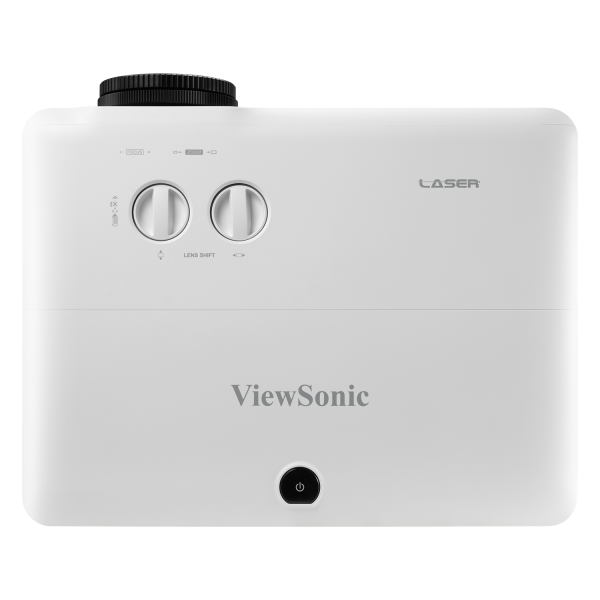

Lens Shift V. Range: Yes (+50%, -50%)
Lens Shift H. Range: Yes (+23%, -23%)
Audible Noise (Normal): 36dB
Audible Noise (Eco): 29dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz

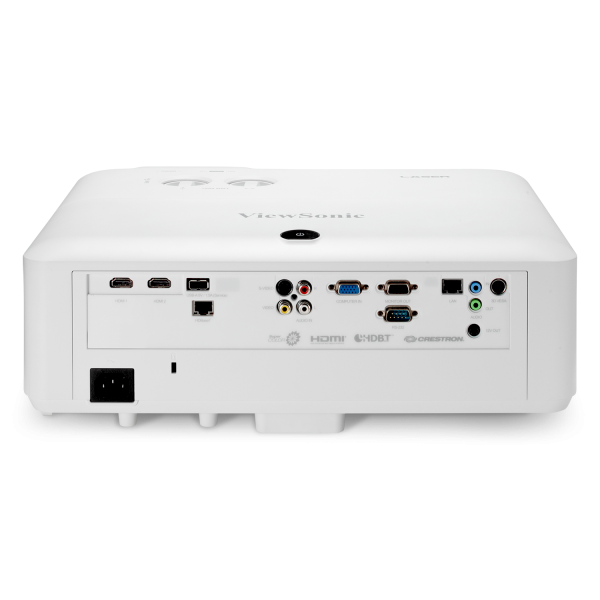

INPUT
Computer in (share with component): 1
Composite: 1
S-Video: 1
HDMI: 2
(HDMI 1.4a/HDCP1.4 x2)
Audio-in (3.5mm): 1
Audio-in (RCA R/L): 1
3D VESA (Sync): 1
HDBaseT: 1
RJ45 Input: 1
(LAN control)

OUTPUT
Monitor out: 1
Audio out (3.5mm): 1
Speaker: 10W x2
USB Type A (Power): 1 (5V/ 1.5A)
(share with service)
12V Trigger (3.5mm): 1 (3.5mm)

CONTROL
RS232 (DB 9-pin male): 1
RJ45: 1

OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 430W
Standby: <0.5W
Operating Temperature: 0~40℃
Net Weight: 6.6kg
Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, total 23 languages

STANDARD ACCESSORY
Power Cord: 1
VGA Cable: 1
Remote Control: 1
(w/ laser pointer)
QSG: 1
