SPECIFICATION
Native Resolution: 1280 x 800
DC type: DC3
Brightness: 5000 ANSI lumens
Contrast Ratio with SuperEco mode: 5000:1 (with Eco mode)
Display Color: 1.07 Billion Colors‎
Light Source: Lamp
Light source life (Nor/SuperEco): 2000/2500 (Nor/Eco)
Lamp Watt: 370W
Lens: F=2.59-2.87, f=16.88-21.88mm
Projection Offset: 110%+/-5%
Throw Ratio: 1.21-1.57
Image size: 30" - 300"
Throw Distance: 0.78m-10.14m(100" @2.61m)
Keystone: ±40° (Vertical)
Lens Shift V. Range: Yes (+7.5%, -0%)
Optical Zoom: 1.3x
Audible Noise (Eco): 33dB
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

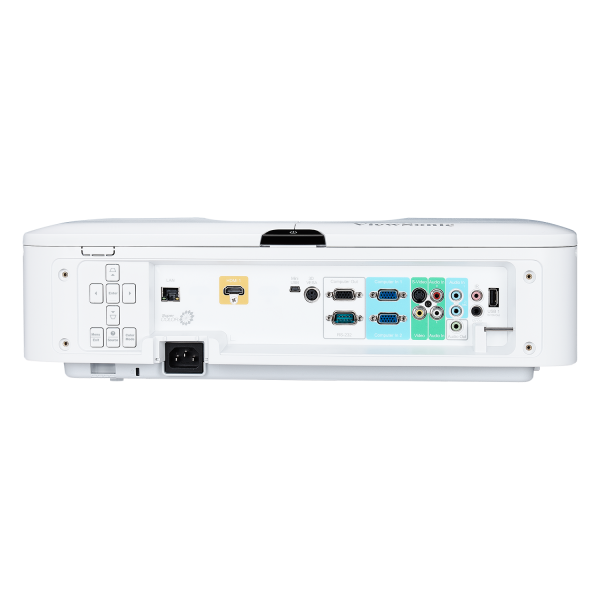

INPUT
Computer in (D-SUB 15 pin): 2
Composite: 1
S-video: 1
Audio-in (3.5mm): 2
Audio-in (RCA R/L): 1
Microphone in: 1 (shared with Audio-in 2)
HDMI: 2 (Back & PortALL)
3D VESA (Sync): 1

OUTPUT
Monitor out (D-SUB 15 pin): 1
Audio out (3.5mm): 1
Speaker: 10W Cube x 2
USB type A (Power): 1 (5V2A)
USB type Micro B (Power): 1 (5V2A Front)
12V Trigger: 1 (3.5mm)
IR out: 1

CONTROL
RS232: 1
RJ45: 1
USB type mini B (Services): 1
Wired Remote Control - Out: 1 (Share to top IR)

OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
Power Consumption: Normal: 574W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 6.2kg
Dimensions (WxDxH) w/adjustment foot: 470x316x140mm
Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese
