PRODUCT SPECIFICATION
Resolution: 1024x768
Brightness (ANSI Lumens): 6200lm
Contrast (with Dynamic Contrast Ratio): 8000: 1
Lamp Hour (Normal / Eco / DynamicEco): 1500hrs / 3500hrs
Throw Ratio in Meters (Wide ~ Tele): 1.3~2.21
Throw Distance: 0.79m-13.47m (100" @2.6m)
Lens Shift: Yes
Optical Zoom: 1.7x
Digital Zoom: 0.8x~2.0x
Screen Size: 30" - 300"
Projection Offset: 112%~124%
Display Colours: 1.07 Billion Colors (30 bits per color)
Keystone: H:+/-25° , V:+/-30°
Noise min (Normal / Eco): 31 dB
Speaker: 7Wx2

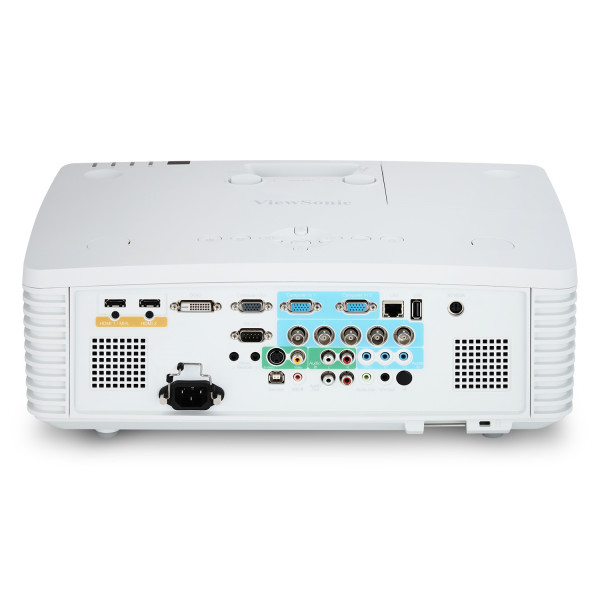

INPUT CONNECTIVITY
HDMI/MHL: 1
HDMI In: 1
VGA-in: 2
Component Input: 2 (Share with VGA-in)
S-Video: 1
Composite Input: 1
Audio-in (3.5mm): 3
Audio-in (RCA pair): 1
USB Type A: 1 (Only charging)
Mini USB: 1 (Service)
Microphone in (3.5mm): 1
BNC: 1
Wire Remote in: 1
DVI-D: 1

OUTPUT CONNECTIVITY
VGA-out: 1
Audio-out (3.5mm): 1
Audio-out (RCA pair): 1
Wire Remote out: 1
CONTROL
RS232 (9 pin): 1
Network Mangment (LAN cable): 1
12V Power Trigger: 1
3D VESA: 1

DIMENSIONS AND POWER
Dimension (WxDxH): 445 mm(W) x 325.5 mm(D) x147.8 mm(H)
17.51” (W) x 12.81 ” (D) x 5.82” (H)
Net Weight: 8.29 kg  (18.26 lb)
Power Source: 100~240Vac 50/60Hz
Power Consumption: 480W (Typ.)

SUPPLIED ACCESSORIES
Power cord: 1
VGA cable: 1
Remote Control (with batteries): 1
Quick Start Guide & CD: 1

REGULATIONS
Mexico Energy FCC / CE /  EMC CB / CCC ROHS / REACH / SVHC / WEEE / ErP Mexico NOM / UL / CUL / PSB /  RCM
