SPECIFICATIONS

DISPLAY	Panel Size: 75" Type/ Tech: TFT LCD Module. IPS type, DLED backlight Display Area (mm): 1649.664(H) × 927.936(V) (75" diagonal) Native Resolution: 3840 x 2160 Aspect Ratio: 16:9 Colors: 1.07G colors Brightness: 450 nits (typ.) Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable) Response Time: 8 ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 30,000 Hours (min) Surface Treatment: Anti-glare, 3H hardness, Haze 25% Bezel: Slim Orientation: Landscape
INPUT	HDMI: x2 RGB / VGA: x1 DisplayPort: x1 Audio: x1 (3.5mm) RS-232: x1 OPS Slot: x1 (Optional Intel OPS VPC12-WPO) WiFi Slot: x1 (Optional WiFi module LB-WIFI-001)
OUTPUT	Audio: x1 (RCA) SPDIF: x1 (Fiber)
LAN	RJ45: x1
USB	Type A: 2.0 Type A : x 2 (USB Playback) 3.0 Type A : x 1 (USB Playback)
SPEAKERS	Max. 16Wx2
COMPATIBILITY	RGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz Android Version: Android 8.0
POWER	Voltage: 100V-240V,50/60Hz (AC) Consumption: Normal 107 W, Max 300 W
ERGONOMICS	Wall Mount (VESA® ): 400x200 mm
OPERATING CONDITIONS	Temperature (º C): 0 to 40°C Humidity: 20% ~ 80% non-condensing

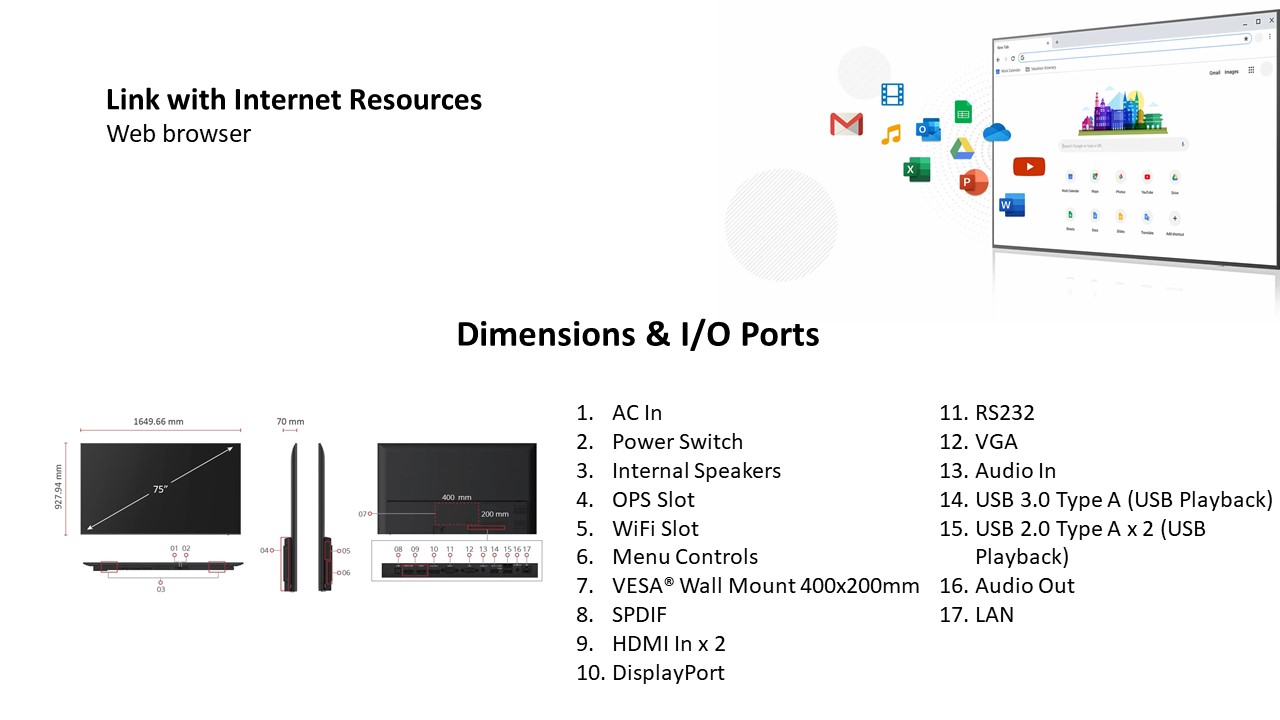

DIMENSIONS (W x H x D)	Physical (inch / mm): 65.83 x 37.59 x 2.76 in/ 1672.0 x 955.0 x 70.0 mm Packaging (inch / mm): 71.97 x 43.23 x 8.66 in/1828 x 1098 x 220 mm
WEIGHT	Net (lb / kg): 29.30 kg / 64.60 lbs (w/o stand) Gross (lb / kg): 41.7 kg/91.93 lbs
REGULATIONS	cULus, FCC, Energy Star, EPEAT,MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, Custom Union, UkrSEPRO, RCM, MEPS
PACKAGE CONTENTS	1. CDE7520 presentation display 2. Remote control with batteries 3. Quick start guide 4. Power cables (1.5M) 5. HDMI cables x2 (1.5M/3M) 6. Wall mount screw 7. RS232 adapter
