DISPLAY

Panel Size: 65"

Panel Type: TFT LCD Module with DLED Backlight.

Display Area (mm): 1428.48(H) x 803.52(V)

Aspect Ratio: 16:9

Resolution: UHD 3840x2160(Pixels)

Colors: 1.07B colors (10bit)

Brightness: 400 nits (typ.)

Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)

Response Time: 8ms

Viewing Angles: H = 178, V = 178 typ.

Backlight Life: 50,000 Hours (Typ.)

Surface Treatment: Hardness: 7H (9H pencil), Anti-flare coating

PLATFORM

Processor: ARM Cortex A73*4

RAM: 4GB (IFP6552-1A, IFP6552-1ANEP) 8GB (IFP6552-1B)

Storage: 32GB (IFP6552-1A, IFP6552-1ANEP) 64GB (IFP6552-1B)

TOUCH

Type/ Tech: UFT (Ultra Fine Touch) Technology

Touch Resolution: 32767 x 32767

Touch Point: Windows: 33 points touchAndroid: 20 points touch

INPUT

HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1)x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)

RGB / VGA: x1 (1920x1080 @60Hz)

DisplayPort: x1 (3840x2160 @60Hz)

Audio: x1 (PC audio in)

RS232: x1

OPS: module slot x 1

WiFi: module slot x 1

OUTPUT

HDMI: x1 (IFP6552-1A, IFP6552-1B)

Audio: x1 (Earphone out)

SPDIF: x1 (optical)

LAN

RJ45: x1

USB

Type A: USB 2.0 x 1(Side x1)USB 3.0 x 4 (Front x2, Side x2, SmartPort™ USB)

Type B: x2, for touch

Type C: x1 (USB3.0, DP1.2 Alt Mode, Ethernet, PD 60W)

SPEAKERS

15W x 2 + 15W x 1 subwoofer

MICROPHONE

built-in 8-array microphone

TOP CAMERA PLATE

YES

COMPATIBILITY

RGB PC/HDMI PC: 1920x1080

HDMI: 4K 60Hz/30Hz/1080p

EMBEDDED OS

Android 9

BUNDLE SOFTWARE

Basic Annotation Software: myViewBoard WhiteBoard for Android

Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)

Wireless Presentation: ViewBoard Cast & myViewBoard Display

SPECIAL FEATURES

All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore): USB 3.0 x 4

Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC

Light Sensor: Yes

POWER

Voltage: 100-240VAC +/- 10% Wide Range

Consumption: 190W (Typ.) < 0.5 W ("Off")

ERGONOMICS

Wall Mount (VESA® ): 600 x 400

OPERATING CONDITIONS

Temperature (º C): 0 to 40°C

Humidity: 20% ~ 80% RH non-condensing

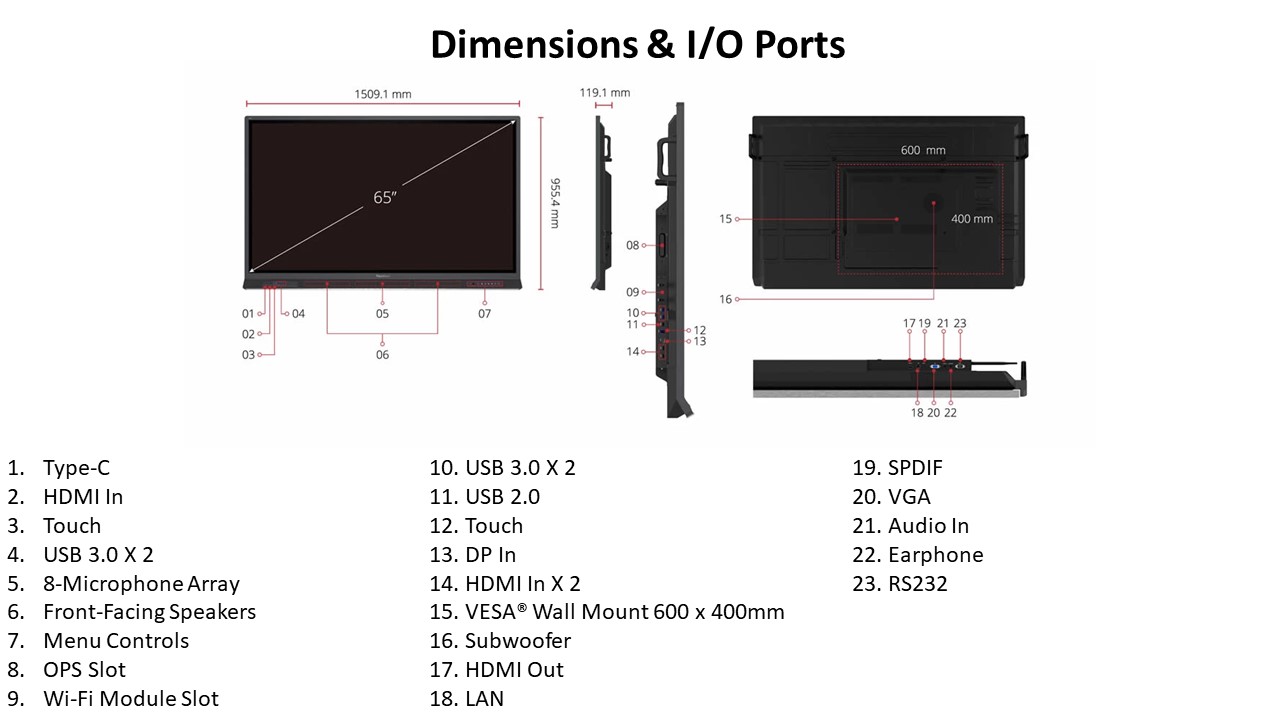

DIMENSIONS (W x H x D)

Physical (mm / inch): 1509.1 (W) x 955.4 (H) x 119.1 (D) mm 59.41 (W) x 37.61 (H) x 4.69 (D) inch

Packaging (mm / inch): 1660 (W) x 1045 (H) x 245 (D) mm 65.35 (W) x 41.14 (H) x 9.65 (D) inch

WEIGHT

Net (lb / kg): 96.78 lb / 43.9 kg

Gross (lb / kg): 122.14 lb / 55.4 kg

REGULATIONS

cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP

PACKAGE CONTENTS

1. Power cable (3 meters)

2. Remote control

3. USB Type-C cable (1.5 meters)

4. USB Touch cable (3 meters, USB2.0)

5. Touch pen x 2

6. Quick Start Guide + Compliance statement

7. RS232 adapter

8. Clamp x 5

9. Camera Plate

10. Screw x 8 (camera 2+2, wall mount 4)

11. HDMI cable (3 meters)

12. Eraser

13. AAA Battery x 2

COMPATIBLE SLOT-IN PC

VPC12 & VPC25/27-O & VPC25/27-O-B series
