DISPLAY

Panel Size: 86"

Panel Type: TFT LCD Module with DLED Backlight

Display Area (mm): 1895.04(H) x 1065.96(V)

Aspect Ratio: 16:9

Resolution: UHD 3840x2160(Pixels)

Colors: 1.07B colors (10bit)

Brightness: 400 nits (typ.)

Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)

Response Time: 8ms

Viewing Angles: H = 178, V = 178 typ.

Backlight Life: 50,000 Hours (Typ.)

Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating

PLATFORM

Processor: ARM Cortex A73*4

RAM: 4GB (IFP8652-1A), 8GB (IFP8652-1B)

Storage: 32GB (IFP8652-1A), 64GB (IFP8652-1B)

TOUCH

Type/ Tech: UFT (Ultra Fine Touch) Technology

Touch Resolution: 32767 x 32767

Touch Point: Windows: 33 points touch, Android: 20 points touch

INPUT

HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x 1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)

RGB / VGA: x1 (1920x1080 @60Hz)

DisplayPort: x1 (3840x2160 @60Hz)

Audio: x1 (PC audio in)

RS232: x1

OPS: module slot x 1

WiFi: module slot x 1

OUTPUT

HDMI: x1 (on demand)

Audio: x1 (Earphone out)

SPDIF: x1 (optical)

LAN

RJ45: x1

USB

Type A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)

Type B: x2, for touch

Type C: x1 (USB3.0, DP1.2 Alt Mode, Ethernet, PD 60W)

SPEAKERS

15W x 2 + 15W x 1 subwoofer

MICROPHONE

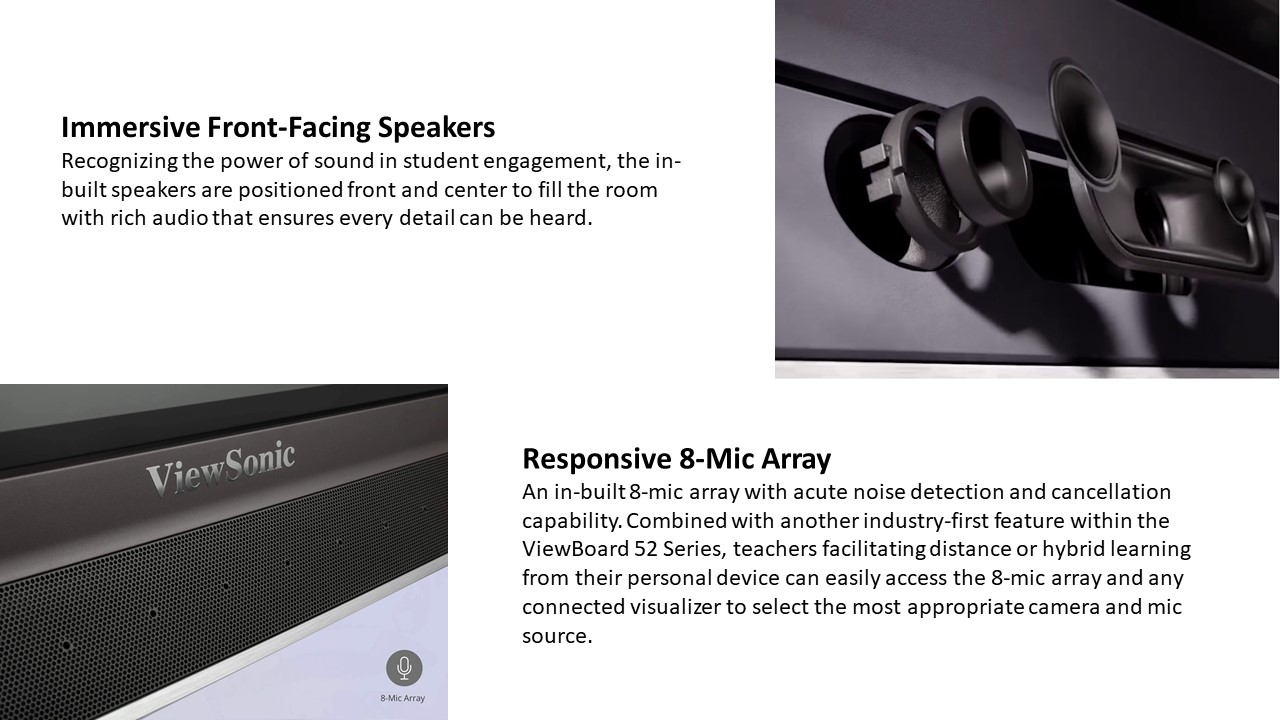

built-in 8-array microphone

TOP CAMERA PLATE

YES

EMBEDDED OS

Android 9

BUNDLE SOFTWARE

Basic Annotation Software: myViewBoard WhiteBoard for Android

Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)

Wireless Presentation: ViewBoard Cast & myViewBoard Display

SPECIAL FEATURES

All-in-one USB port: USB 3.0 x 4

Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC

Light Sensor: Yes

POWER

Voltage: 100-240VAC +/- 10% Wide Range

Consumption: 187.9W (Typ.) < 0.5 W (""Off"")

ERGONOMICS

Wall Mount (VESA® ): 800 x 600

OPERATING CONDITIONS

Temperature (º C): 0 to 40°C

Humidity: 20% ~ 80% RH non-condensing

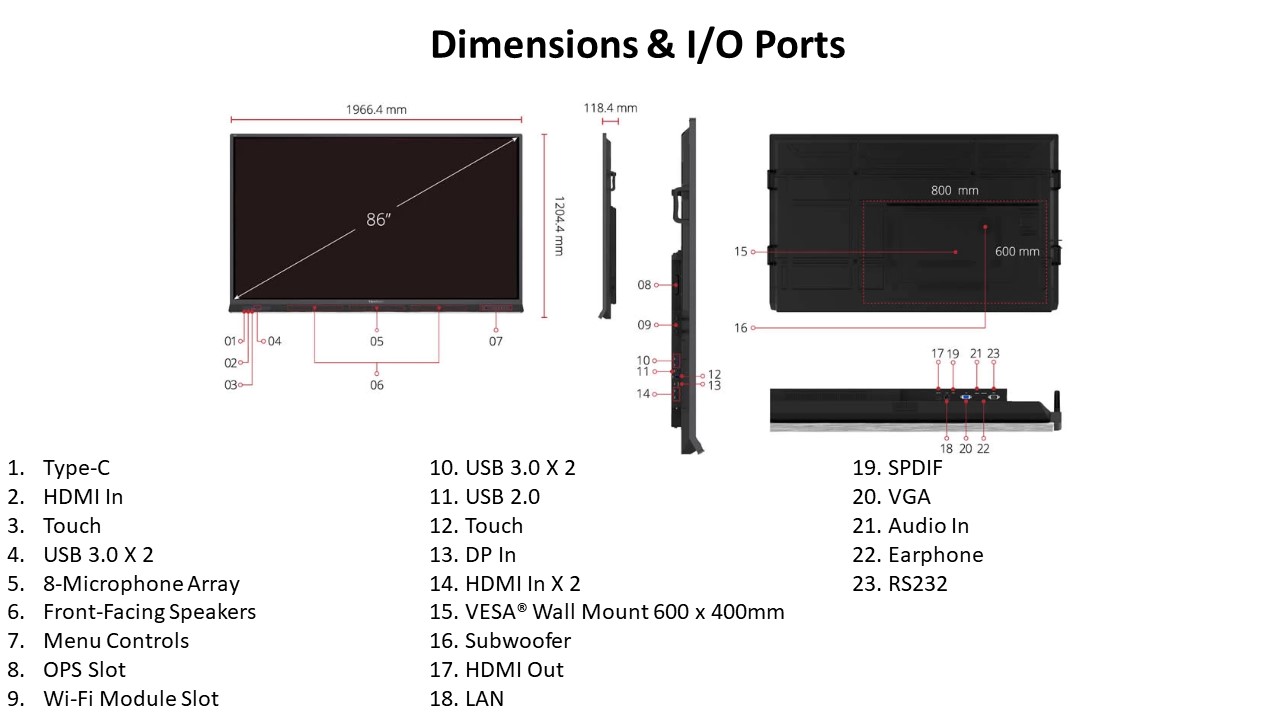

DIMENSIONS (W x H x D)

Physical (mm / inch): 1966.4 (W) x 1204.4 (H) x 118.4 (D) mm, 77.42 (W) x 47.42 (H) x 4.66 (D) inch

Packaging (mm / inch): 2140 (W) x 1340 (H) x 280 (D) mm, 84.25 (W) x 52.76 (H) x 11.02 (D) inch

WEIGHT

Net (lb / kg): 156.53 lb / 71.0 kg

Gross (lb / kg): 196.43 lb / 89.1 kg

REGULATIONS

cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP, BSMI

PACKAGE CONTENTS

1. Power cable (3 meters)

2. Remote control

3. USB Type-C cable (1.5 meters)

4. USB Touch cable (3 meters, USB2.0)

5. Touch pen x 2

6. Quick Start Guide + Compliance statement

7. RS232 adapter

8. Clamp x 5

9. Camera Plate

10. Screw x 8 (camera 2+2, wall mount 4)

11. HDMI cable (3 meters)

12. Eraser

13. AAA Battery x 2

COMPATIBLE SLOT-IN PC

VPC12 & VPC25/27-O & VPC25/27-O-B series
