Specification

Native Resolution: 1280x800

DMD Type: DC3

Brightness: 3000 (ANSI Lumens)

Contrast Ratio: 3000000:1

Display Color: 1.07 Billion Colors

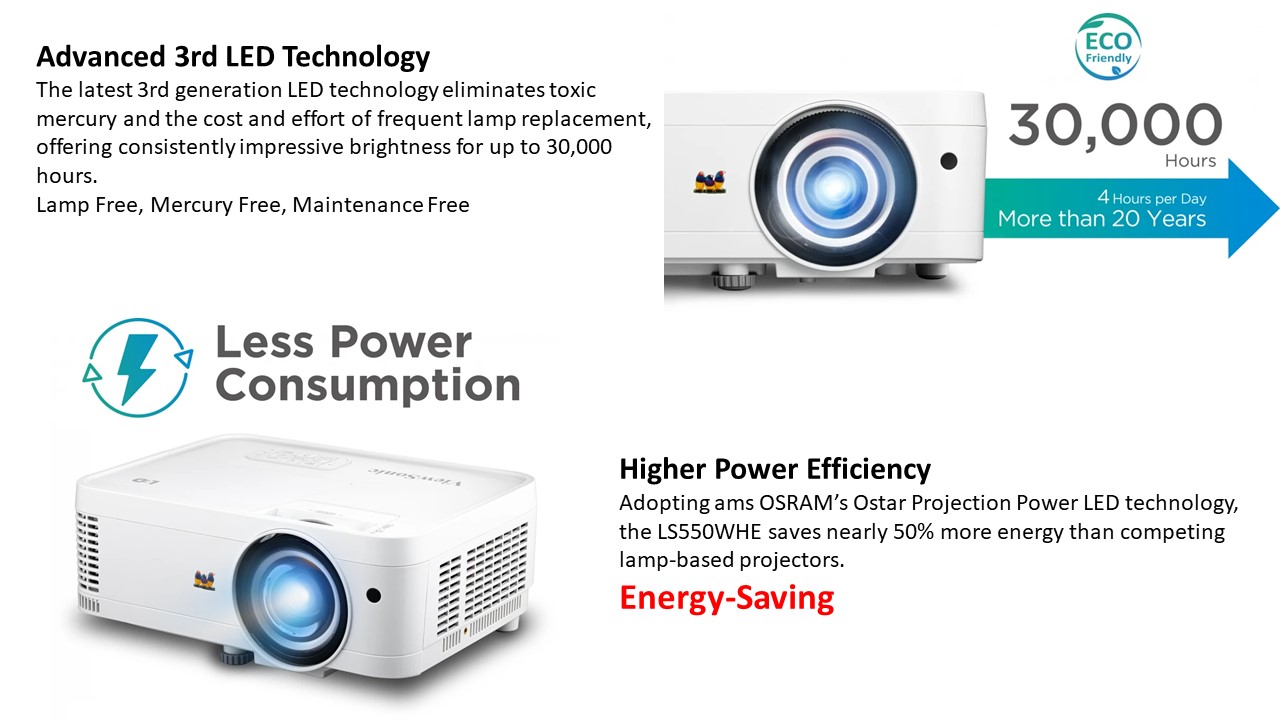

Light Source Type: LED

Light Source Life (hours) with Normal Mode: up to 30000

Lamp Watt: RGB LED

Lens: F=2.6, f=6.9mm

Projection Offset: 110%+/-5%

Throw Ratio: 0.49

Optical Zoom: Fixed

Digital Zoom: 0.8x-2.0x

Image Size: 60"-300"

Throw Distance: 0.63m-1.58m (87"@0.92m)

Keystone: H: +/-40°, V: +36°/-40°

Audible Noise (Normal): 30dB

Audible Noise (Eco): 26dB

Input Lag: 16ms

Resolution Support: VGA (640 x 480) to Full HD (1920 x 1080)

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 23-120Hz

Interactive Camera: Optional (vTouch-10s)

Input

HDMI: 1(HDMI 1.4/ HDCP 1.4)

Audio-in (3.5mm): 1

Output

Audio-out (3.5mm): 1

Speaker: 2W

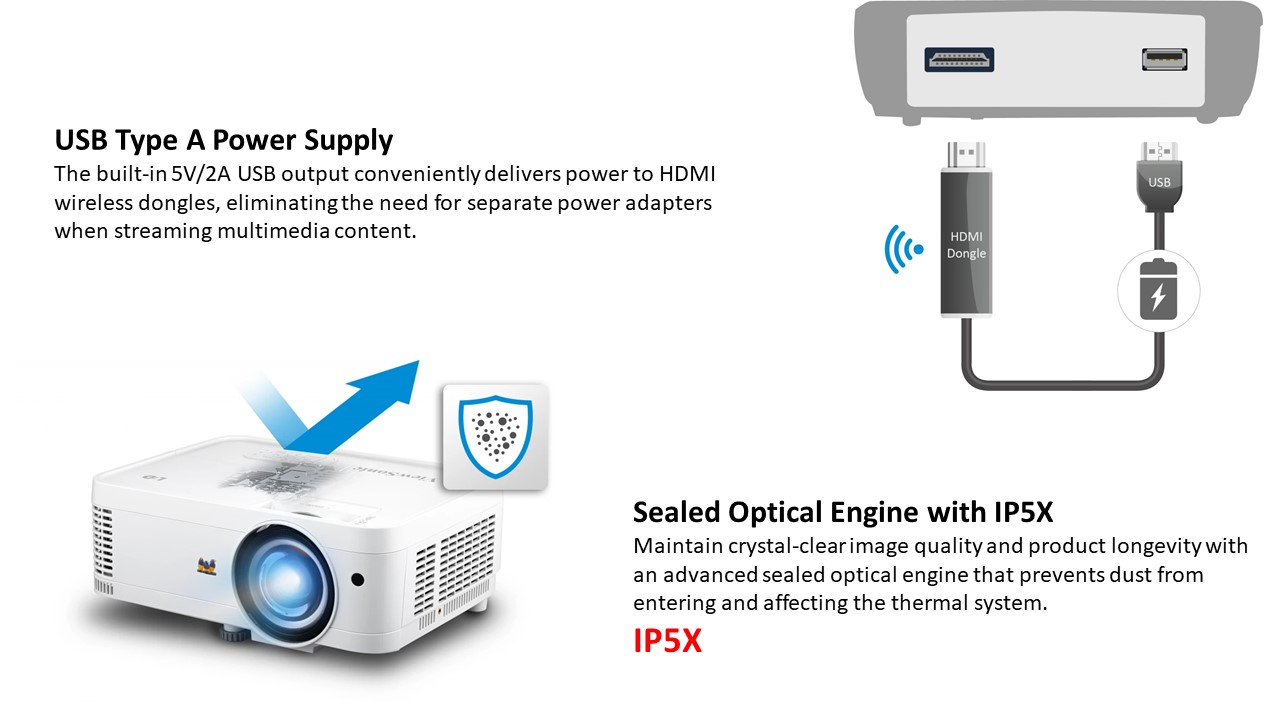

USB Type A (Power): 1 (5V/2A)

Control

RS232 (DB 9-pin male): 1

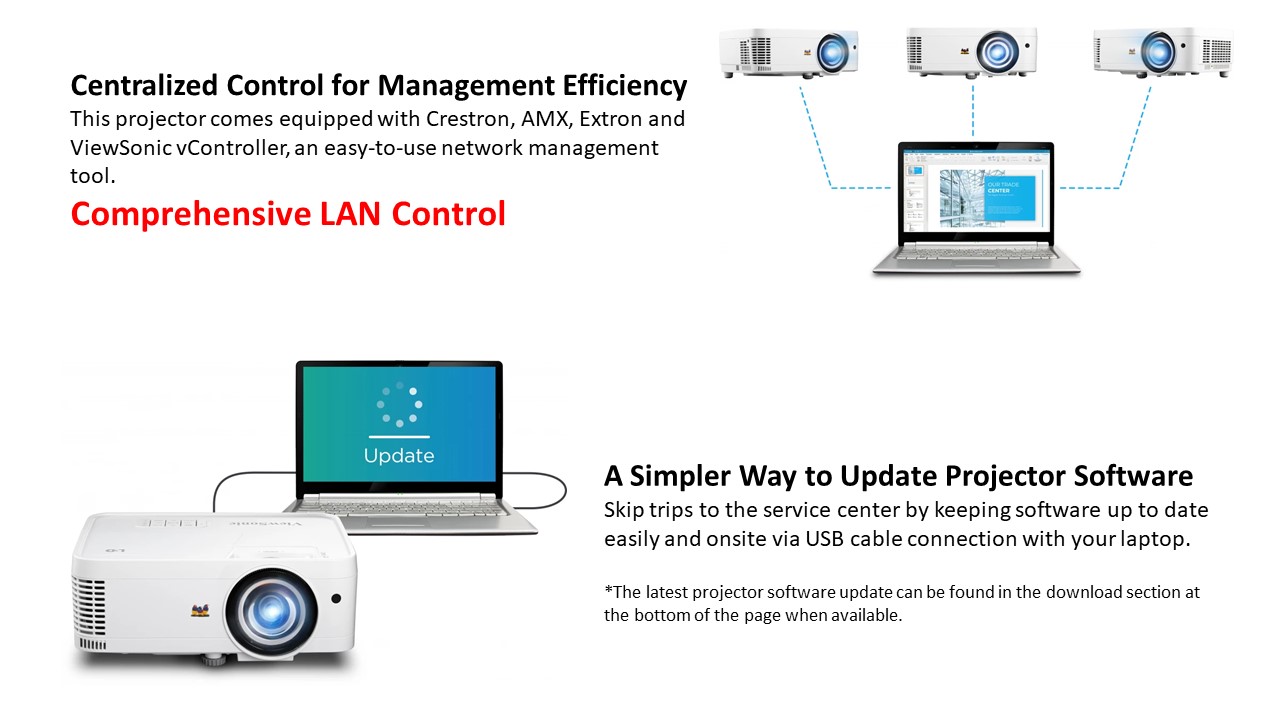

RJ45 (LAN control): 1

USB Type A (Services): 1(share with USB A Output)

Others

Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)

Power Consumption: Normal: 156W Standby: <0.5W

Operating Temperature: 0~40℃

Net Weight: 2.45kg

Gross Weight: 3.55kg

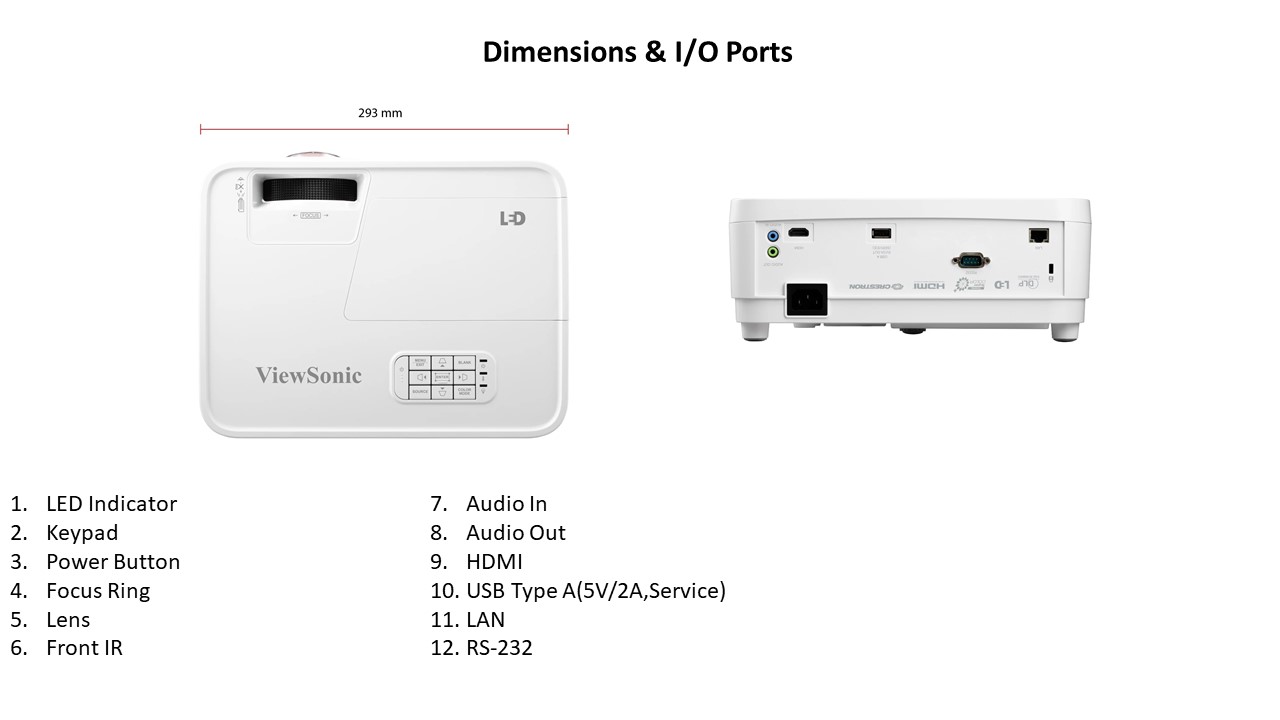

Dimensions (W x D x H) with Adjustment Foot: 293x221x115mm

OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungarian. Total 24 languages

User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

Standard Accessory

Power Cord: 1

Remote Control: 1

QSG: Yes

Lens Cover: Yes

Warranty Card: Yes (CN Only)

Optional Accessory

Wall/Ceiling Mount: PJ-WMK-305PJ-WMK-007

Carry Bag: PJ-CASE-008
