Viewsonic LS831WU

MYR14699.00

Brand: ViewSonic

  • Share

Get shipping estimates

Country
State
Shipping Method

OVERVIEW

ViewSonic’s LS831WU is an advanced 4,500 ANSI Lumens WUXGA ultra short throw installation projector perfect for public and commercial display applications. With a 0.25 throw ratio, users can easily get 100” screen from only 21 cm away. Screen size can further be expanded to up to 150" at a lower cost-per-inch compared to commercial displays. Adopting the 2nd generation laser phosphor technology, it offers consistent high brightness for a reliable 20,000 hours lifespan. Built-in HDBaseT receiver and 360° projection capability together ensure the ease of use desired. The embedded 20W cube speakers offer powerful audio right out of the box with three fine-tuned audio modes suitable for different application scenarios.





SPECIFICATIONS


  • Specification
    Native Resolution: 1920x1200
    DMD Type: DC3
    Brightness: 4500 ANSI Lumens
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor system
    Light Source Life (Normal): up to 20000
    Lamp Watt: Nichia 67W x2
    Lens: F=2, f=2.44mm
    Projection Offset: 140%±6%
    Throw Ratio: 0.252
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 70"~200"
    Throw Distance: 0.06-0.72m, (100”@0.21m)
    Keystone: H:+/-5° , V:+/-5°
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 29dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz

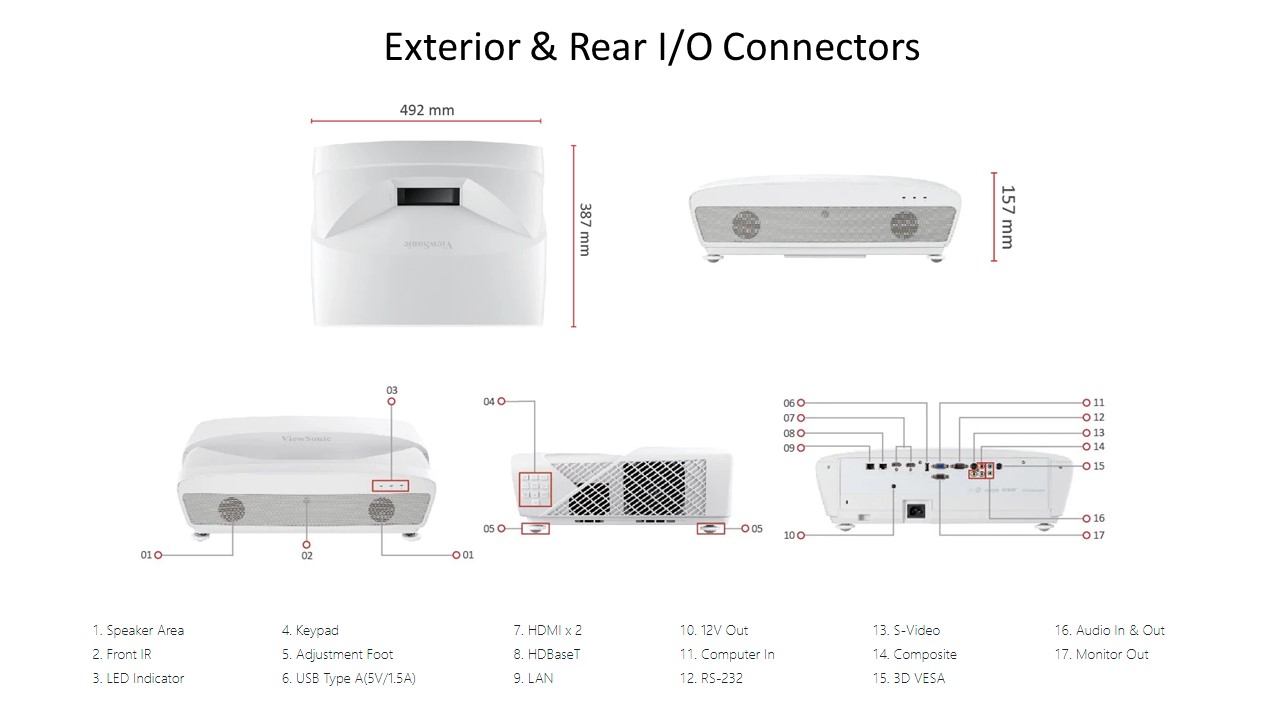

  • Input
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2 , (HDMI 2.0 (HDCP 2.2)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    3D VESA (Sync): 1
    HDBaseT: 1
    RJ45 Input: 1, (LAN control)
  • Output
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 10W Cube x 2
    USB Type A (Power): 1 (5V/ 1.5A), (share with service)
    12V Trigger (3.5mm): 1 (3.5mm)
