Specification

Projection System: 0.65" WXGA

Native Resolution: 1280x800

Brightness: 4500 (ANSI Lumens)

Contrast Ratio with SuperEco Mode: 12500:1

Display Color: 1.07 Billion Colors

Light Source Type: 240W UHP Lamp

Light Source Life (hours) with Normal Mode: 4000

Light Source Life (hours) with SuperEco Mode: 12000

Lens: F=2.41-2.53, f=21.85-24mm

Projection Offset: 112.4%+/-5%

Throw Ratio: 1.544-1.72

Optical Zoom: 1.1x

Digital Zoom: 0.8x-2.0x

Image Size: 30"-300"

Throw Distance: 1.10m-11.00m

(100"@3.33m)

Keystone: +/- 40° (V)

Audible Noise (Normal): 34dB

Audible Noise (Eco) : 25dB

Input Lag: 33.2ms

Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)

HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility: NTSC, PAL, SECAM

Horizontal Frequency: 15K-102KHz

Vertical Scan Rate: 23-120Hz

Input

Computer in (share with component): 1

HDMI: 2

(HDMI 1.4/ HDCP 1.4)

Audio-in (3.5mm): 1

Output

Monitor out: 1

Audio-out (3.5mm): 1

Speaker: 3W

USB Type A (Power): 1 (5V/1.5A)

Control

RS232 (DB 9-pin male): 1

USB Type A (Services): 1

(share with USB A Output)

Others

Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)

Power Consumption: Normal: 295W; Standby: <0.5W

Operating Temperature: 0~40℃

Carton: Brown

Net Weight: 2.70kg

Gross Weight: 3.80kg

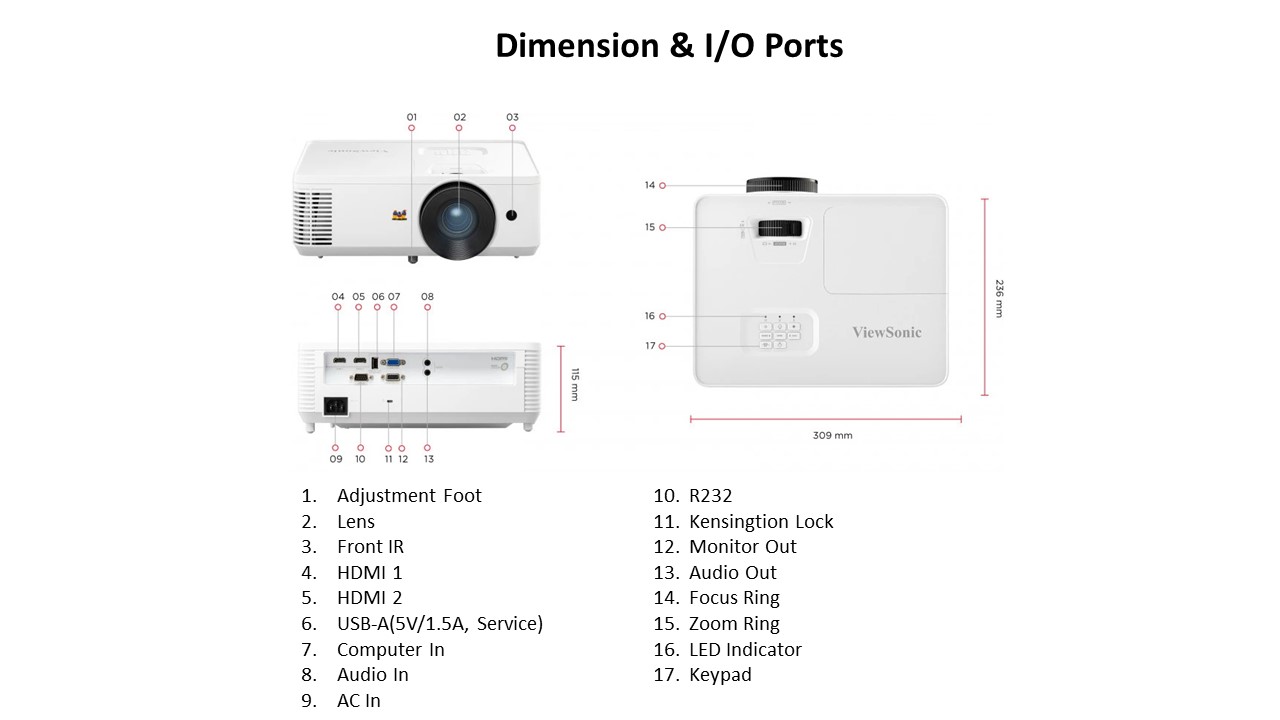

Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm

Packing Dimensions: 400x337x168mm

OSD Language: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified Chinese, Traditional Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak,

Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages

User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages

Standard Accessory

Power Cord: 1

VGA Cable: 1

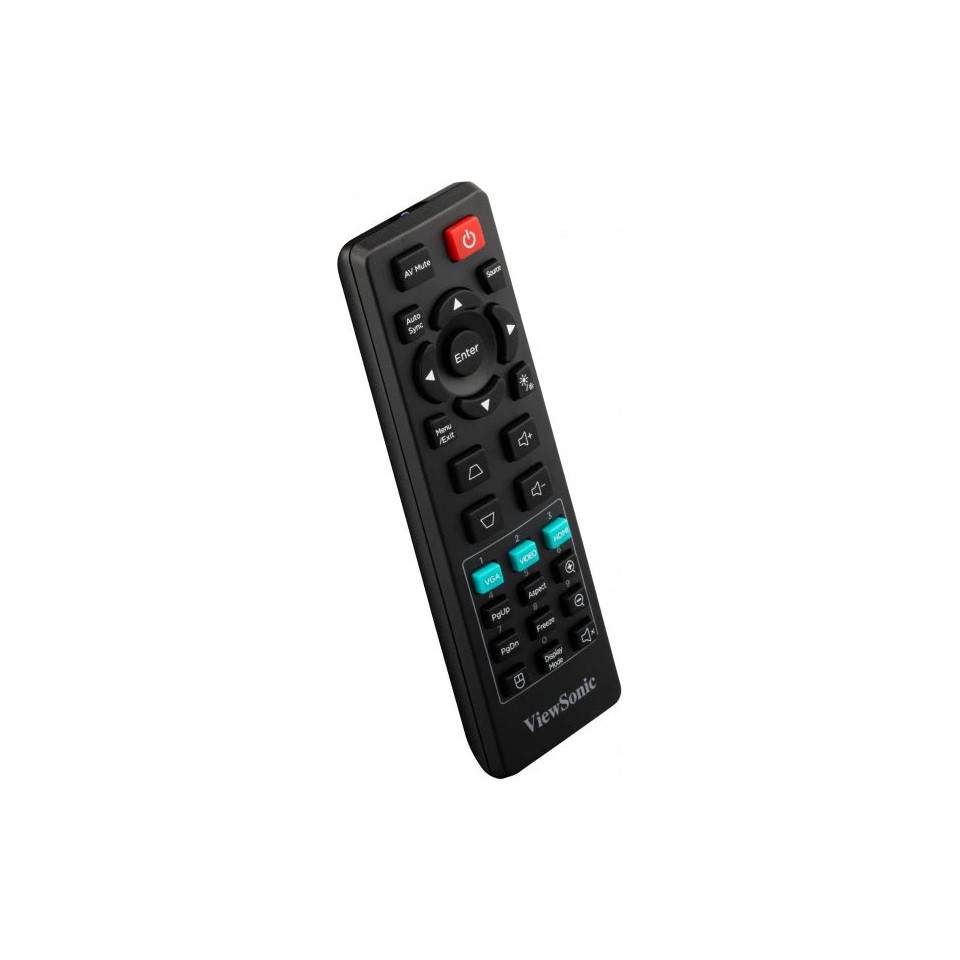

Remote Control: 1

QSG: Yes

Air Filter: Yes (CN Only)

Warranty Card: Yes (CN Only)

Optional Accessory

Lamp/Light Source: RLC-128

Air Filter: RSPL

Wall/Ceiling Mount: PJ-WMK-007

Carry Bag: PJ-CASE-008
