Core

CPU: Intel Core i5-10400T 2.0GHz Turbo boost 3.6GHz

Graphics: Integrated Intel® UHD graphic 610 Intel H510 chipset

Memory

Capacity: 8GB DDR4

Software

Operating System: Windows 10 Pro 64 bit

Storage

Dimension: M.2 2280 (22 x 80 mm)

Capacity: 256GB SSD

Interface: M.2 2280 NVMe PCIe Gen3 SSD

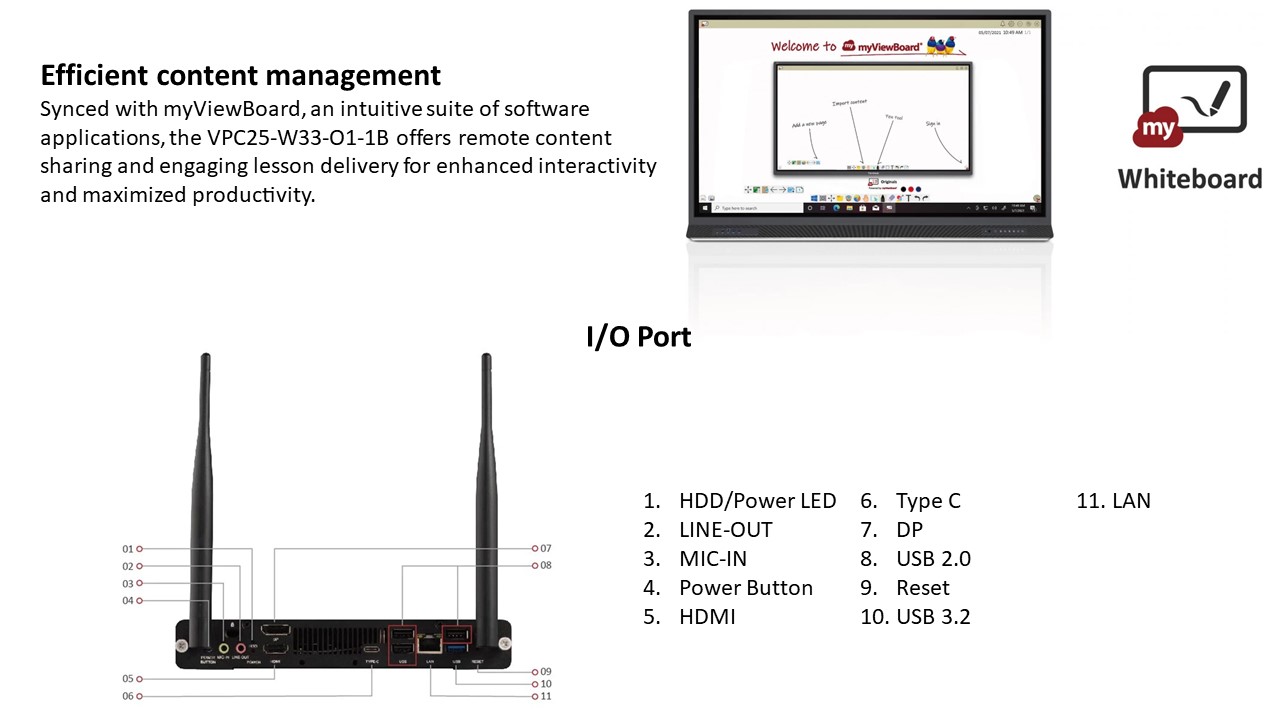

INPUT

MIC(Microphone): x1

OUTPUT

DisplayPort: x 1 (1.2, resolution 3840x2160@60Hz)

HDMI: x 1 (1.4, resolution 3840x2160@60Hz)

Audio: x 1 Line out

LAN

RJ45: GbE LAN Port

Wireless / Bluetooth

Intel AX200 WiFi 6 + BT5.2 Module dual band

USB

Type A: USB x 4 (USB 3.2 x 1, USB 2.0 x 3)

Type C: x 1 (data only)

Bundle Software

Adobe Reader /myViewBoard WhiteBoard /WatchDog / Winflash

Power

Voltage: DC in +12V~+19V @ 3.42A

Consumption: 65 W (Typical)

Operating Conditions

Temperature (º C): -5~45°C

Humidity: 20% ~ 80% R.H. Non-Condensing

Dimensions (W x H x D)

Physical (inch / mm): 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm

Packaging (inch / mm): 10.00” x 7.72” x 3.03”/254 x 196 x 77 mm

WEIGHT

Net (lb / kg): 2.205 lb/1 kg

Gross (lb / kg): 2.646 lb/1.2 kg

REGULATIONS

cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC

PACKAGE CONTENTS

1. VPC OPS2. Quick Start Guide3. Screw x 2
